Specifications8910 Floating Hitch Cultivator

Model Specifications

Available on 8", 10" or 12" spacing.
Shanks are spaced at a minimum of 32", 40" or 36" respectively between shanks on the same row.
Provides a distance of 25" between each of the 5 rows.

Expand to access detailed product specifications.

MODEL	8910-30	8910-35	8910-48	8910-54	8910-70
No. of Sections	3	3	5	5	5
No. of Rows	5	5	5	5	5
Working Widths
8'' Spacing	29'3", 32'0"	36'0", 40'0"	48'0", 52'0"	58'8", 60'0"	N/A
10" Spacing	30'0", 33'3"	35'0", 40'0"	50'0"	55'0", 60'0"	70'0"
12" Spacing	30'0", 32'0"	36'0", 40'0"	48'0", 52'0"	56'0", 60'0"	70'0"
Frame Width
Main Frame	14'2"	14'2"	15'6"	15'6"	15'6"
Inner Wing	7'9"	10'6"	8'8"	11'3"	15'6"
Outer Wing	N/A	N/A	7'10"	8'4"	10'1"

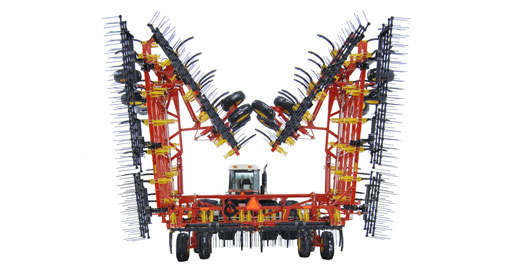

Width (trans.)	18'6"	18'6"	25'1"	26'0"	25'9"
Height (max trans.)	13'4"	16'4	14'4"	17'7"	20'4"
Weight (lb)
8" Spacing	11,600	13,100	18,900	21,200	N/A
10" Spacing	11,000	12,200	17,900	19,500	22,300
12" Spacing	10,600	11,800	17,000	18,700	21,300
Tires
Main Frame	11Lx15FI (4)	11Lx15FI (4)	12.5Lx15FI (4)	12.5Lx15FI (4)	12.5Lx15FI (4)
Inner Wing	11Lx15FI (4)	11Lx15FI (4)	11Lx15FI (4)	11Lx15FI (4)	11Lx15FI (4)
Outer Wing	N/A	N/A	11Lx15FI (4)	11Lx15FI (4)	11Lx15FI (4)
Main Frame Casters	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)
Inner Wing Casters	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)
Outer Wing Casters	N/A	N/A	11Lx15FI (2)	11Lx15FI (2)	11Lx15FI (2)

All weights and dimensions are estimates and are subject to change.

Every effort has been made to ensure that the information is accurate/current at the time of production.

Note: Model 8910s with air kits are compatible with 8000 Series Air Carts only.

This is an important Alternative Text.

Expand to access detailed product specifications.

General
Wheel System	Offset walking tandem axles under all frames
Wheel Standard	Walking axles & casters - triple-lip seals on 5,000 lb hubs
	48'-70' Main Frame Walking Axles - triple-lip seals on 6,000 lb hubs
Packer Options	Optional poly-gang style, or poly-independent mounted packer wheels, or heavy-duty gang style (10" spacing only)
Mud Scrapers	Optional fixed or spring-loaded style
Openers	Quick-Change and Speed-Loc Adapters are optional
Air Kits	Single-Shoot, Double-Shoot & Granular Air Kits are available
Blockage Monitors	Optical Blockage Monitors available for secondary or tertiary lines

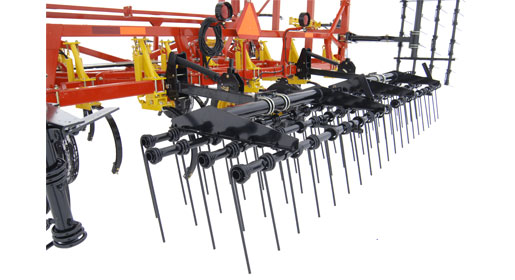

The Mounted Harrows	Optional 3 or 4 bar harrows.
Clearance
Frame to Ground	27"
Obstacle	11"
Row to Row Spacing	25" min.
Row Shank Spacing
8" Spacing	32" min.
10" Spacing	40" min.
12" Spacing	36" min.
Contour Depth	7'2" between the caster wheels and the walking axle pivot
Depth Control	Hydraulic series rephasing cylinders, “Quick-Shift” Depth Control, Variable Depth/ Precision Control Valve
Mid Row Banders^®	Optional with NH₃, dry or liquid fertilizer tubes (not available on 70' units or 12" spaced units)
