5925 Air Coulter DrillPast Performers



Years In Service


2011 - 2013

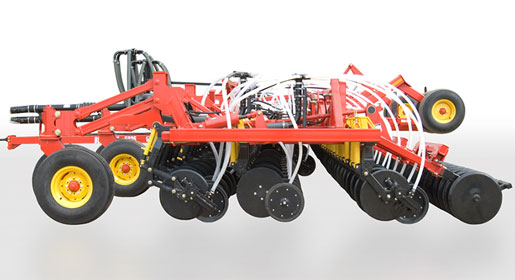

5925 Air Coulter Drill

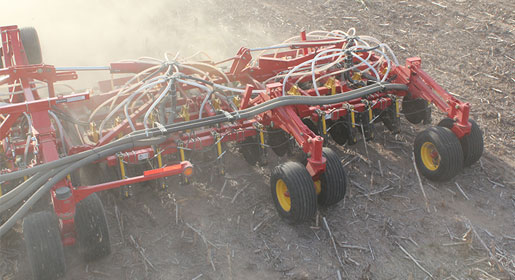

The 5925 ACD produces ultra-low soil disturbance when seeding into even the most challenging conditions.

The 5925 Air Coulter Drill is a true zero-till seeding implement! Designed to operate in managed field residue and stubble with minimal soil disturbance.

  • More Durable, More Productive
  • Extreme Zero-Till

The low disturbance characteristics of the all-coulter 5925 allows producers to seed at higher speeds than conventional air hoe drills.

Provides protection from the evaporating effects of the wind and the sun.

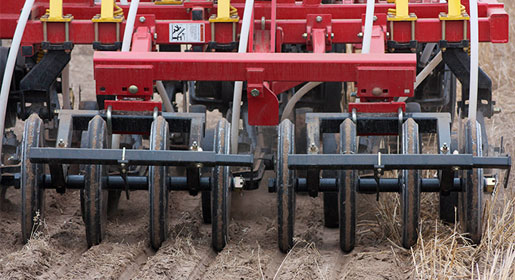

  • More Durable, More Productive - Packing force of 150 to 200 lb (70 to 90 kg) per wheel ensures that the furrow is well sealed, even in dry conditions. The large 20-½" (52cm) diameter coulter disks are effective at cutting through tough field residue such as corn, sunflower, or soybean stubble. The 5925 ACD uses a single point depth control allowing the depth to be set in seconds.
  • Extreme Zero-Till - Seed directly into pasture land without pre-working the soil. The unit is equipped with your choice of steel 2-1/4", 3-1/2" & 4-1/2" (57 mm, 89 mm, 108 mm) packers, semi-pneumatic 3" & 4" (76 mm & 102 mm) packers, and pneumatic 5-1/2" (140 mm) packers.  The gang mounted packers will ensure adequate packing is applied even in challenging conditions.
Read More



5925 ACD Fixed Height Coulter


Designed specifically for the rigours of direct seeding.

The Model 5925 Air Coulter Drill utilizes a coulter assembly which is made up of strong cast components designed specifically for the rigours of direct seeding.

  • Fixed Height Coulter Assembly
  • Optimal Fertilizer Placement

Fixed Height Coulter AssemblyThe Heart of the 5725 Air Coulter Drill.

  • The large 20½” (521mm) diameter single bevel boron Steel Coulter is set at a 4.5° angle to open the soil just enough to deposit the seed.
  • The Floating Carbide Scraper can be adjusted to ensure a good furrow is maintained and the coulter disc stays clean in a wide range of seeding conditions.
  • The Dry Seed Boot directs the seed into the furrow produced by the disc.
  • The extension spring provides a trip force of 525 lb (238kg) for effective soil penetration.
  • The Mounted Retaining Wheel ensures the parted soil is moved back over the furrow to secure seed placement and minimize soil disturbance.

Optimal Fertilizer Placement - Bourgault’s 5925 ACD is designed for one-pass seeding with the optional Mid Row Bander® III system. Mid Row Banders operate independently of the seed coulters, depositing granular, liquid, or NH3 fertilizer safely between the seed rows.

Read More



Specifications


Packing force of 150 to 200 lb (70 to 90 kg) per wheel ensures that the furrow is well sealed

Detailed Specifications

Detailed specifications available for the 5925 Air Coulter Drill


Models 5925-32 5925-40 5925-52
Sections 3 3 5
Rows 4 4 4
Transport Height 12' 8" 17' 6" 16'' 1"
Transport Width 22' 3" 22' 3" 23' 8"
Working Width
9.8" Spacing 32' 8" 42' 6" 52'3"
12.6" Spacing 33' 7" 42' 54'7"
Weight (with MRB III)*
9.8" Spacing 27,800 lb 31,700 lb 40,250 lb
12.6" Spacing 25,900 lb 28,650 lb 37,200 lb
Tires
MF Front 13.5X15FI-F 13.5X15FI-F 13.5X15FI-F
MF Rear 13.5X15FI-F 13.5X15FI-F 13.5X15FI-F
Wing Caster, Dual 11LX15FI-C 11LX15FI-C 11LX15FI-C
Wing Caster, Dual Walking (opt) 13.5X15FI-C 13.5X15FI-C 13.5X15FI-C
Packer Options
Steel 2-¼", 3-½", 4-½" (57mm, 89mm, 108mm)
Semi-Pneumatic 3" (76mm)
Pneumatic 5-½" (140mm)

* all weights are estimates and are subject to change



General Specifications
Row to row spacing 49"
Frame depth 77.5"
Caster to packer depth 159" (at 1" working depth)
Wing casters dual rigid (11LX15-C only), dual walking (13.5X15-C only)
Hydraulic system master/slave depth cylinders, single point depth adjustment
Trip Spacing 9.8", 12.6"
Trip Assemblies Fixed Height Banders
Packer Options Steel 2-1/4", 3-1/2", 4-1/2" / Rubber 3", 4" / Pneumatic 5-1/2"
Packer Wheel Mudscrapers Optional for steel packers only
Stonekickers Standard for steel and semi-pneumatic only (not available for pneumatic)
Mid Row Banders MRB3 hydraulic option (9.8" and 12.6")
Obstacle clearance In field: FHBs 10", MRB 8" (mid-rows lowered)
  Transport: FHBs 2", MRB 22-1/2" (mid-rows raised)
Air kits Single shoot, Double shoot
Blockage monitors Single run or full run options
Auto clutch switch Optional
Safety Chain & Lights Standard
Wing Transport Locks Standard
Rear tow hitch add-ons Optional drop hitch and competitor tank adapter
