5730 Air Coulter DrillPast Performers



Years In Service


2003 - 2009

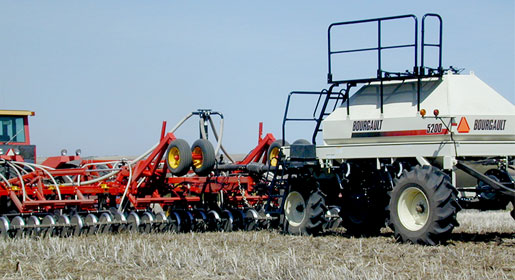

5730 Air Coulter Drill


5730 Air Coulter Drill

The 5730 Air Coulter Drill is designed  for pasture land and hay land operators as a direct seeding system and fertilizer applicator

  • From 18' (5.5m) to 30' (9.1m);
  • Equipped with the 30 Series Fixed Height Coulter assembly;
  • Unique offset packer design closes the furrow to preserve moisture;
  • Variety of packer wheel options;
  • The heavy duty construction ideal for direct seeding and pasture rejuvenation.

Download the PDF version of the product brochure.

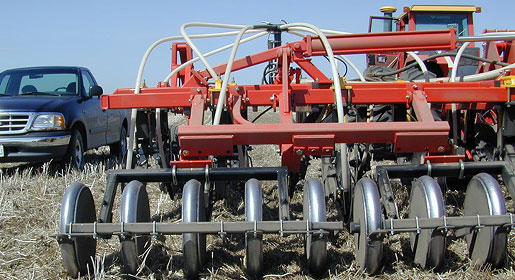

The unique offset packer design helps close the furrow to protect seed and preserve moisture.

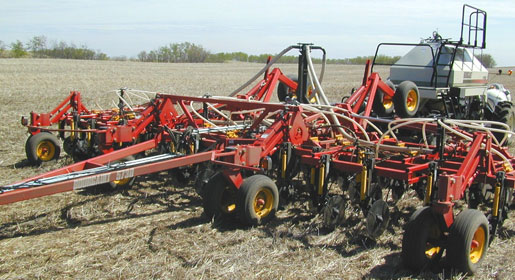

5730 ACD - Hayland Drill

The 5730 ACD can be used for pasture rejuvenation due to its ability to cut through established pasture and hay land.

  • The 5730 Air Coulter Drill is available in sizes from 18' (5.5m) to 30' (9.1m).
  • The 30 Series Fixed Height Coulter assembly provide a heavy duty opener with 500lb initial trip load and a 20" diameter disk.
  • The packer wheel is partially offset from the furrow to ensure the soil flap is closed, sealing in the seed and fertilizer. Each packer wheel will deliver over 200 lbs (91 kg) of packing pressure.
  • Packer Wheel options:
    • Steel wheels, 2¼” (57mm) and 3½” (89mm) wide;
    • 3” (76mm)semi-pneumatic rubber wheel.
  • Optional mud scrapers offered on steel wheel packers.
Read More


Specifications


The 5730 ACD can be used for pasture rejuvenation due to its ability to cut through established pasture and hay land

Expand to access detailed product specifications.


Model 5730-18 5730-24 5730-29
No. of Sections 1 3 3
No. of Rows 5 5 5
Working Widths:
7" Spacing 17' 6" 24' 6" 29' 2"
9.8" Spacing 18' 24' 6" 29' 5"
12.6" Spacing - 25' 2" 29' 5"
Frame Widths:
Main Frame 15' 11" 12' 10" 12' 10"
Wing - 6' 1" 8' 4"
Transport Width @ Top - 18' 8" 18' 8"
Transport Height (max) - 10' 6" 12' 8"
Weights: (with 3.5"steel packer option) without MRB's
7" Spacing 17,880 lb 25,214 lb 30,002 lb
9.8" Spacing 13,365 lb 19,430 lb 21,804 lb
12.6" Spacing - 18488 lb 19648 lb
Weights: (with 3.5"steel packer option) with MRB's
9.8" Spacing 18,195 lb 24,680 lb 29,784 lb
12.6" Spacing - 20,408 lb 23,288 lb
Weight Packages:
7" Spacing 4800 lb 3900 lb 6900 lb
9.8" Spacing (no MRB's) 1500 lb - 900 lb
9.8" Spacing (with MRB's) 4800 lb 3600 lb 6900 lb
12.6" Spacing (no MRB's) - - -
12.6" Spacing (with MRB's) - 600 lb 2100 lb



General
Fixed Height Coulter Spacing 9.8" or 12.6", (249mm or 320mm)
Packer Options: 2.25" Steel, 3.5" Steel, 4.5" Steel, 5.5" Pneumatic, 3" Rubber, 4" Rubber, Split (12.6" ONLY)
Packer Wheel Mud Scrapers Optional for steel wheels
Stone Kickers Standard
Fixed Height Coulter 20" diameter (Series 25 & 30)
  500 lb trip force
Air kits Single shoot, double shoot and granular air kits available.
Blockage monitors Impact blockage monitors available for secondary or tertiary air lines.
Tandem wheels for wings Optional on all wing sections.
Floating wing Optional
Row to Row Spacing 24.5"
Frame Depth 102"
Caster to packer depth 145" working at 1" of seeding depth.
Hydraulic system High quality master/slave series cylinders with in line hydraulic filter, double line lock/pressure reducing valve, slide action single point quick shift depth control.
Safety chain and lights Standard
Transport locks Standard
Mid Row Banders® Optional, with NH3, dry, or liquid fertilizer tubes
Field markers Accepts most 3rd party disc markers. Weight kits on 5720/5725/5730 must be adjusted for field markers.
Rear Tow Hitch Standard

Every effort has been made to provide the most current information possible. However, ongoing product development and improvements mean that equipment and specifications are subject to change without notice. Equipment subject to local availability. Please contact your Bourgault dealer for additional information.
