5725 Air Coulter DrillPast Performers



Years In Service


1999 - 2010

5725 Air Coulter Drill


5725 Air Coulter Drill

The 5725 Air Coulter Drill is the ultimate seeding tool for Minimum and Zero-Till operations.

  • The two-row ultra-low soil disturbance seeding system available in 9.8" (249mm) or 12.6" (320mm) spacings;
  • Offered at 29' to 60' working widths;
  • Designed for double shooting with an optional Mid Row Bander® System, allowing the user to safely apply granular, liquid, or NH3 fertilizer;
  • Offered with various packer options;
  • Equipped with running gear for demanding field and transport conditions.

Download the PDF version of the product brochure.

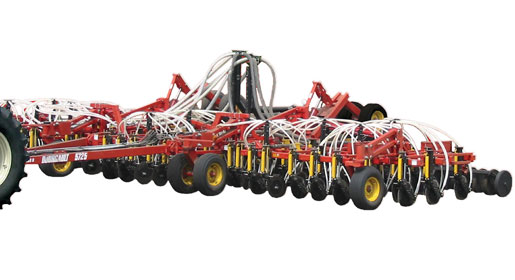

The 5725 ACD is equipped with running gear for demanding field and transport conditions

Minimal Disturbance, Maximum Benefit

  • The 5725 ACD is a two-row ultra-low soil disturbance seeding system available in 9.8" (249mm) or 12.6" (320mm) spacings, and at 29' to 60' working widths.
  • The Bourgault single point depth control maximizes productivity, saving you hours in adjustment time and reducing the chance of error.
  • Various packer options:
    • steel wheel 2¼” (57mm) and 3½” (89mm) wide
    • 3” (76mm) semi-pneumatic rubber wheel.
  • The rear transport wheels on all 5725 Air Coulter Drills are dual, oscillating. The transport system features an automatic locking system for secure road transport.
Read More

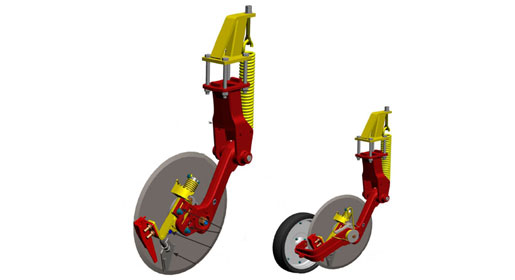

5725 Fixed Height Coulter

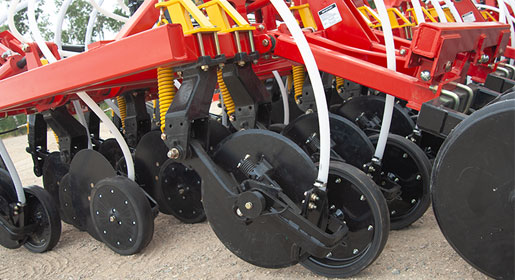

 The unique coulter assembly provides maximum residue cutting capability

The 5725 ACD is designed to require minimal maintenance.

  • Coulter Assembly utilizes a large 20" coulter with a 430 lb trip force to provide excellent penetration.
  • The aggressive spring loaded closing wheel ensures complete furrow closing.

5725 Fixed Height Coulter AssemblyMinimal Disturbance, Maximum Benefit

  • The 5725 fixed height coulter assembly utilizes a large 20" coulter with a 430 lb trip force to provide excellent penetration. Tests show that the 20" discs provide over two times life than 18" coulters. The unique coulter assembly provides maximum residue cutting capability.
  • The aggressive spring loaded closing wheel ensures complete furrow closing. A ½” x 11-⅝” dia. solid steel closer wheel is mounted on a compound angle to return displaced soil over the seed row, prior to the packer wheel.
  • The assemblies feature oversized 2000 lb. hubs and greaseless composite bushings in wear pivots to achieve extreme durability with a minimal amount of complexity.
  • The 5725 ACD is designed for double shooting with an optional Mid Row Bander® System, allowing the user to safely apply granular, liquid, or NH3 fertilizer.
  • Mid Row Banders operate independently of the seed coulters, guarantying seed and fertilizer separation.
  • The Series 25 Mid Row Bander II also utilizes the large 20" coulter with a 430 lb trip force to provide the same excellent penetration as the 5725 coulter assemblies.
Read More



Specifications


Expand to access detailed product specifications.


Model 5725-29 5725-34 5725-40 5725-47 5725-50 5725-60***
No. of Sections 3 3 3 5 5 5
No. of FHB Rows 2 2 2 2 2 2
Working Widths:
9.8" Spacing 29'5" 34'4" 40'10" 47' 4" 53'11" 63' 8"
12.6" Spacing 29' 5" 33' 8" 42' 0" 46' 2" 52' 6" 63' 0"
Frame Widths:
Main Frame 12' 10" 12' 10" 15' 9" 12' 10" 15' 9" 15' 9"
Inner Wing 8' 4" 10' 0" 13' 1" 10' 1" 9' 11" 12' 6"
Outer Wing - - - 7' 1" 8' 8" 10' 0"
Transport Width @ Top 18' 6" 18' 6" 21' 7" 20' 0" 22' 0" 26' 0"
Transport Height (max) 12' 7" 15' 2" 17' 2" 15' 0" 15' 8" 18' 0"
Weights: (with 3.5"steel packer option)
9.8" spacing w/o MRB's 19700 lb 21900 lb 25800 lb 28100 lb 29540 lb 37000 lb
9.8" spacing with MRB's 23000 lb 24300 lb 28740 lb 31500 lb 33400 lb ***
Weight Packages:
9.8" Spacing (no MRB's) - - - - 600 lb 600 lb
9.8" spacing with MRB's 1200 lb 1200 lb 1200 lb 600 lb 2400 lb ***
NOTE: *** Unit cannot accommodate Mid Row Banders



General Specifications (All Sizes):
Fixed Height Coulter Spacing 9.8" or 12.6"
Packer Options: 2.25" Steel, 3.5" Steel, 4.5" Steel, 5.5" Pneumatic, 3" Rubber, 4" Rubber, Split (12.6" ONLY)
Packer Wheel Mud Scrapers Optional for steel wheels
Stone Kickers Standard
Fixed Height Coulter 20" diameter (Series 25 & 30)
Trip Force 500lb trip force
Air kits Single shoot, double shoot and granular air kits available.
Blockage monitors Impact blockage monitors available for secondary or tertiary air lines.
Tandem wheels for wings Optional on all wing sections.
Floating wing Optional
Row to Row Spacing 59"
Frame Depth 102"
Caster to packer depth 145" working at 1" of seeding depth.
Hydraulic system High quality master/slave series cylinders with in line hydraulic filter, double line lock/pressure reducing valve, slide action single point quick shift depth control.
Safety chain and lights Standard
Transport locks Standard
Mid Row Banders® Optional, with NH3, dry, or liquid fertilizer tubes
Field markers Accepts most 3rd party disc markers. Weight kits on 5720/5725/5730 must be adjusted for field markers.
Rear Tow Hitch Standard
