5710 Air Hoe DrillPast Performers



Years In Service


1996 - 2010 (Series I - 1996 to 1998 / Series II - 1998 to 2010)

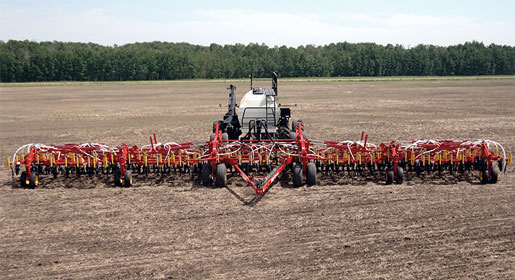

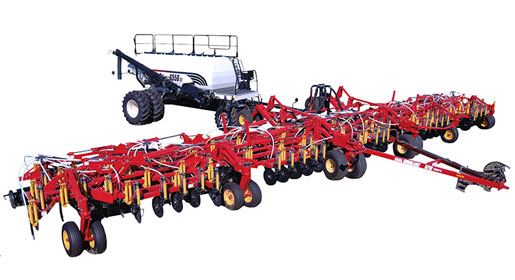

5710 Air Hoe Drill


5710 Air Hoe Drill

The 5710 Air Hoe Drill was the most popular seed drill of it's time!

  • 25' to 74' (7.6 to 22.5 m) working widths;
  • 9.8" (249 mm) or 12.6"(320 mm) row spacings, offered in 7"(178 mm) spacing in select sizes;
  • a wide range of packer wheels to match any farming operation;
  • 230lb, 330lb, and 450lb Spring Trip options;
  • Lower hitch pull point implemented with Series II release;
  • Optional MRBs and MRSs on 9.8" & 12.6" spacings;
  • Quick Shift Depth Control

The 5710's frame is designed for long term durability.

The Proven Performer

  • The 5710 AHD was released in sizes from 25' to 74' (7.6 to 22.5 m), 9.8" (249 mm) or 12.6"(320 mm) row spacings. Select sizes were offered in 7"(178 mm) spacing.
  • A narrower main frame was used on the 25', 30', 35' and 47’ models to balance the size of the wings relative to the size of the main frame.
  • The 5710 delivers a very shallow contouring depth to follow field topography, with 145" caster to packer distance at 1" of seeding depth.
  • A wide range of packer wheels to match any farming operation. To be able to deliver the proper packing configuration for your farm, Bourgault offers many wheel options. The packer wheels are 22"(559mm) in diameter and offered in steel at 2-1/4", 3-1/2" and 4-1/2", rubber capped at 3" and 4", and full pneumatic at 5-1/2" wide.
  • The 5710 was offered with a 230lb, 330lb, and 450lb spring trip to match every soil condition.
  • The 5710 features a very compact folding system to make transporting through smaller passages easy. (refer to Specifcations)
  • The 5710's high precision depth control cylinders use a sophisticated seal design that includes a wiper seal on each side of the Teflon® piston seal.
  • The parallel frame lift system keeps the frame level at all times regardless of seeding depth. Levelling of the 5710 is done using easily accessible heavy-duty turnbuckles found on both the caster wheels and packer gangs. (Wrenches provided.)
  • The system provides single point depth control for easy and reliable seeding depth changes.
Read More



Specifications

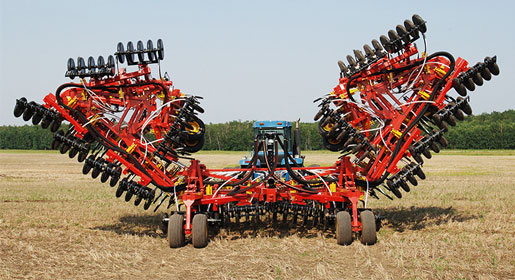

The 5710 features a very compact folding system to make transporting through smaller passages easy.

Expand to access detailed product specifications.




Base Size 5710-24 5710-29 5710-34 5710-40 5710-47 5710-54 5710-59 5710-64 5710-70 5710-74
No. of Sections 3 3 3 3 5 5 5 5 5 5
No. of Rows 5 5 5 5 5 5 5 5 5 5
Working Widths:
7" Spacing 24' 6" 29' 2" 35' 0" 42' 0" N/A 51' 4" N/A 60' 8" N/A N/A
9.8" Spacing 24'6" 29'5" 34'4" 40'10" 47'4" 53'11" 58'10" 63'8" 70'3" 73'6"
12.6" Spacing 25' 2" 29' 5" 33' 7" 42' 0" 46' 2" 52' 6" 58' 10" 63' 0" 69' 4" 73' 6"
Frame Widths:
Main Frame 12' 10" 12' 10" 12' 10" 15' 9" 12' 10" 15' 9" 15' 9" 15' 9" 15' 9" 15' 9"
Inner Wing 6' 1" 8' 4" 10' 0" 13' 1" 10' 1" 9' 11" 12' 6" 12' 6" 13' 5" 13' 5"
Outer Wing N/A N/A N/A N/A 7' 1" 8' 8" 8' 10" 10' 0" 13' 8" 13' 8"
Transport Width @ Top 18' 6" 18' 6" 18' 6" 21' 7" 20' 0" 22' 0" 23' 0" 26' 0" 22' 6" 22' 6"
Transport Height (max) 10' 7" 12' 7" 15' 3" 17' 2" 15' 0" 15' 8" 17' 6" 18' 0" 18' 11" 18' 11"
Weights: (7" spcg with 330 lb trips; 9.8" & 12.6" spcg with 450 lb trips)
7" Spacing 17,220 lb 18,650 lb 20,290 lb 23,230 lb N/A 29,680 lb N/A 36,080 lb N/A N/A
9.8" Spacing 16,400 lb 17,660 lb 18,920 lb 21,360 lb 27,180 lb 27,790 lb 31,780 lb 33,840 lb 42,500 lb 43,300 lb
12.6" Spacing 15,740 lb 16,780 lb 17,820 lb 20,240 lb 25,640 lb 26,030 lb 30,020 lb 31,860 lb 39,800 lb 40,600 lb
Tires:
Main Frame Casters 9.5Lx15FI (4) 9.5Lx15FI (4) 9.5Lx15FI (4) 11Lx15FI (4) 11Lx15FI (4) 11Lx15FI (4) 12.5Lx15FI (4) 12.5Lx15FI (4) 16.5Lx16.1FI (4) 16.5Lx16.1FI (4)
Inner Wing Casters 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (2, 4) 11Lx15FI (4) 11Lx15FI (4)
Outer Wing Casters N/A N/A N/A N/A 9.5Lx15FI (2, 4) 9.5Lx15FI (2, 4) 9.5Lx15FI (2, 4) 9.5Lx15FI (2, 4) 9.5Lx15FI (4) 9.5Lx15FI (4)
Rear Transport Wheels 9.5Lx15FI (4) 9.5Lx15FI (4) 9.5Lx15FI (4) 9.5Lx15FI (4) 9.5Lx15FI (4) 9.5Lx15FI (4) 11Lx15FI (4) 11Lx15FI (4) 11Lx15FI (4) 11Lx15FI (4)





Shank Spacing 7" 9.8" 12.6"
Packer Options:
   7" Steel - 2-1/4", 3-1/2" / Rubber - 2", 3"
   9.8" & 12.6" Steel - 2-1/4", 3-1/2", 4-1/2" / Rubber - 3", 4" / Pneumatic - 5-1/2"
Packer Wheel Mud Scrapers Optional for steel wheels
Stone Kickers Standard
Openers Quick-Change adapters standard. Refer to Bourgault Tillage Tools for optional openers.
Seed boots Low or wide spread seed boot available
Air kits Single shoot, double shoot and granular air kits available.
Blockage monitors Optical blockage monitors available for secondary or tertiary air lines.
Tandem wheels for wings Standard on 5710-59 to 5710-74 inner wing, Optional on all other wing sections.
In-frame harrow Optional 4 row configuration with a clear back row for rotary or tine harrows.
Trip assemblies:
   7" 230 lb 330 lb
   9.8" & 12.6" 230 lb 330 lb 450 lb
Trip assemblies 1" x 2" shank, 27" to 31" of frame to ground clearance (depending on opener), 11" of obstacle clearance
Row to row spacing 24.5"
Frame depth 102"
Caster to packer depth 145" Working at 1" of seeding depth.
Hydraulic system High quality master/slave series cylinders with in line hydraulic filter, double line lock/pressure reducing valve, slide action single point quick shift depth control.
Safety chain and lights Standard
Transport locks Standard
Mid Row Banders® Optional on 12.6" and 9.8" spacings with NH3, dry, or liquid fertilizer tubes
Mid Row Shanks Optional on 12.6" and 9.8" spacings
Field markers Accepts most 3rd party disc markers
Rear Tow Hitch Standard
