3710 Independent Coulter DrillPast Performers



Years In Service


2008 - 2012

3710 Independent Coulter Drill


Available in sizes up to 60 feet, the Bourgault 3710 Independent Coulter Drill is the most revolutionary coulter-style seeding system on the market today!

A revolutionary coulter-style seeding system with 40ft, 50ft, and 60ft size options with many innovative design features that set the 3710 ICD apart from the competition.

  • Contour-Ability & Consistency
  • Seed Depth Adjustment
  • Hydraulic Control


Available in sizes up to 60 feet, the Bourgault 3710 Independent Coulter Drill is the most revolutionary coulter-style seeding system on the market today!

Achieve consistent seeding depth in rolling land with a 1:1 parallel link design with minimal sensitivity to debris and existing seed furrows.

  • Contour-ability & Consistency The walking axle design splits the opener downforce, one third at the cleaner wheel and two thirds at the packer wheel during typical operation. When obstacles, or last season’s furrows are encountered, the vertical movement of the coulter is reduced by approximately half due to the walking axle motion, resulting in unprecedented seed depth consistency.
  • Seed Depth Adjustment - The depth adjustment provides seed depth changes in ¼" (6 mm) increments for a total of 4" (102 mm) of adjustment.
  • On-The-Fly Hydraulic Control -The Model 410 Control Box provides precise electric-over-hydraulic control. Apply up to 450 lb (204kg) of opener down force, with 70 to 230 lb (32 to 104 kg) of packer wheel down force, along with 30 to 100 lb (14 to 45 kg) of cleaner wheel down force on each seed row!
  • Hi-Flotation - Was offered on the 3710-60.
Read More






Superior Opener Design

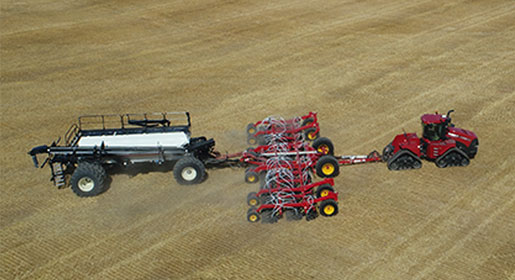

3310 PHD with 6550ST Air Seeder

The 3710 Paralink™ Air Hoe Drill is designed around the innovative Walking Axle Opener.

  • Parallel Walking Coulter Arm Assembly
  • Variety of Spacing Options
  • Choice Of Packer & Cleaner Wheels
  • Optimal Fertilizer Placement

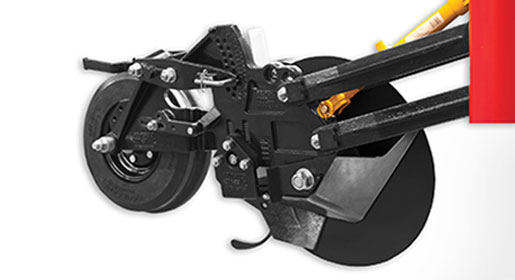

The Paralink Hoe Drill Opener

The PLW™ Opener balances seed depth control between the packer and cleaner wheels

  • Parallel Arms provide a consistent angle on the coulter’s presentation to the soil ensuring the scraper and seedboot delivery system maintains a constant attack angle to the ground providing optimum seed placement. Each arm provides +9" (229 mm)/ -7" (178 mm) of travel from nominal position.
  • The 20½" (52 cm) dia. coulter is set at a 5° toe-in angle and 10° camber to help lift the soil.
  • The Low Disturbance (LD) Scraper will allow seed to be placed while creating minimal disturbance.  The Winged Seedboot Scraper creates a hoe drill like field finish, and is offered on 12'' spacing only.
  • The 2-row Bourgault 3710 Independent Coulter Drill was offered at 7½" (190 mm), 10" (254 mm), and 12" (305 mm) spacings, with the flexibility of a row-crop spacing on the 7½" (190 mm) and 10" (254 mm) spaced models.
  • Choice Of Packer & Cleaner Wheels - 4.5" (114 mm) semi-pneumatic smooth crown, 4.5" (114 mm) semi-pneumatic double-shoulder offset, 4.5" (114 mm) semi-pneumatic double-shoulder, 4.8" (122 mm) pneumatic.  You can also choose between the 3" (76 mm) cleaner wheel to minimize damage to standing stubble, and the 4.5" (114 mm) cleaner wheel that will give you better flotation on softer soils.

Read More




Specifications 3710 ICD


Detailed Specifications

Detailed specifications available for 3710 Independent Coulter Drill.


Models 3710-40 3710-50 3710-60
No. of Sections 3 5 5
No. of Rows 2 2 2
Transport Width 19' 5" (5.92 m) 20' 5" (6.22 m) 19'11" (6.07 m)
Transport Height (max) 15' 3" (4.65 m) 14' (3.56 m) 17' 3" (5.26 m)
7.5" (190 mm) sp. w/ MRBs 39,000 lb (17,700 kg) 49,600 lb (22,500 kg) -
7.5" (190 mm) sp. w/o MRBs 32,250 lb (14,650 kg) 41,850 lb (19,000 kg) 47,350 lb (21,500 kg)
10" (254 mm) sp. w/ MRBs 33,650 lb (15,250 kg) 43,600 lb (19,800 kg) 49,050 lb (22,250 kg)
10" (254 mm) sp. w/o MRBs 28,200 lb (12,800 kg) 36,800 lb (16,700 kg) 41,300 lb (18,750 kg)
12" (305 mm) sp. w/ MRBs 31,000 lb (14,050 kg) 40,250 lb (18,250 kg) 45,050 lb (20,400 kg)
12" (305 mm) sp. w/o MRBs 26,200 lb (11,800 kg) 34,300 lb (15,550 kg) 38,250 lb (17,350 kg)
Main Frame Front 13.5LX15FI (4) 16.5LX16.1FI (4) 16.5LX16.1FI (4)
Main Frame Rear 13.5LX15FI (4) 13.5LX15FI (4) 13.5LX15FI (4)
Inner Wing Front 13.5LX15FI (4) 13.5LX15FI (4) 13.5LX15FI (4)
Inner Wing Rear 13.5LX15FI (4) 13.5LX15FI (4) 13.5LX15FI (4)
Outer Wing Front N/A 13.5LX15FI (4) 13.5LX15FI (4)
Outer Wing Rear N/A 13.5LX15FI (4) 13.5LX15FI (4)



Additional Specifications
Opener Row Spacing 7.5", 10" or 12" (190 mm, 254 mm, or 305 mm)
Opener Travel +9" / -7" (+23 cm / -18 cm) from ground level
frame clearance = 27" (69 cm)
Packing Force Walking configuration: 70 - 230 lb (32 - 104 kg)
Locked configuration: 100 - 330 lb (45 - 150 kg)
Packer Option 4.5" (114 mm) semi-pneumatic double shoulder,
4.5" (114 mm) semi-pneumatic smooth crown,
4.5" (114 mm) semi-pneumatic double offset shoulder
Row to Row Spacing 66" (1.67 m)
Mid Row Banders Optional MRB® III hydraulically actuated
(Not available on 60', 7.5" spaced units)
Row Cropping Config. (opt) 15" (381 mm) w/ 7.5" (190 mm) sp. units
20" (508 mm) w/ 10" (254 mm) sp. units
