3310 ParaLink™ Hoe DrillsPast Performers



Years In Service


2007 - 2014

Superior Construction

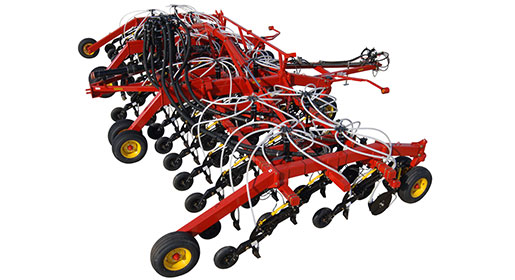

3310 Paralink™ Hoe Drill

The Bourgault 3310 ParaLink Hoe Drill™ grew into the most popular independent seeding system in North America based on:

  • Strength & Durability
  • Effectivity in Challenging Conditions
  • Superior Residue Flow



3310 Paralink™ Hoe Drill & 6450 Air Seeder

Seed depth consistency in a wide range of conditions and operating ranges.

  • Strength & Durability  - The 5" x 5" (127 x 127mm) frame rows and 6" x 10" (152 x 254mm) caster wheel extensions on the mainframe ensures many years of reliable service. The heavy, durable construction gives the 3310 PHD the ability to penetrate the driest and hardest of seedbeds.
  • Effective Seeding in Challenging Conditions - Features such as a seed-only opener on each shank, optimal seed opener to packer distance, edge-on shank design, and residue cutting optional MRB coulters allow the 3310 to deliver excellent trash flow in challenging conditions without compromising the seedbed on both the 10" & 12" ( 254 mm and 305 mm) spaced units.
  • Go With the Flow - The hydraulic configuration on the 3310 PHD™ efficiently utilizes the tractor’s hydraulic system to adjust packing and trip force for the banding coulters and Paralink™ seed arm.
  • Dependable Seeding Consistency  - The 3310 PHD™ provides a two-to-one vertical opener-to-packer ratio to provide a balance between contouring and stability.
    • greatly reduces any negative effects of seeding against the previous years furrows.
    • more consistent at higher seeding speeds.
    • more separation between the opener and the packer wheel allows residue to flow better through the drill.

Read More




Superior Opener Design

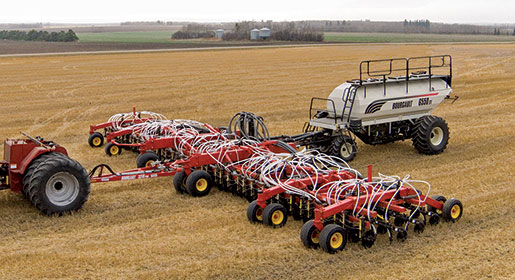

3310 PHD with 6550ST Air Seeder

The 3310 Paralink™ Air Hoe Drill is designed around the innovative PHD™ opener.

  • Edge-on Shank Design
  • Choice of Seed Opener
  • Optimal Opener-to-Packer Distance
  • Reliable Seeding Consistency

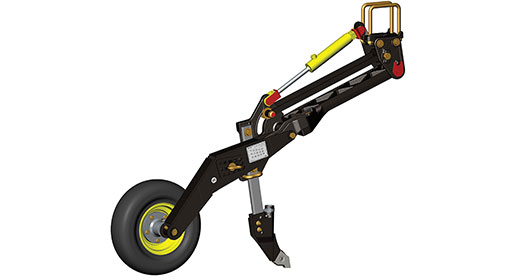

The Paralink Hoe Drill Opener

Superior Productivity

Seed at effective speeds and still maintain good seedbed integrity.  The narrow Edge-on Shank produces a narrow profile reducing the disruption of soil.

  • Choice of Seed Opener - The incorporation of parallel link depth control on the seed opener allows for a range of seed openers to be used.
  • Easy Adjust Depth Control - With the indexed pin depth adjustment, managing the seeding depth across the unit is simple and repeatable. Proper depth setting is a critical factor in seeding.
  • Dependable Seeding Consistency - The 3310 PHD™ provides a 2:1 vertical opener-to-packer ratio to provide a balance between contouring and stability. The end result is reliable seeding consistency in a variety of conditions.
    • The stability of the 3310 PHD™ greatly reduces any negative effects of seeding against the previous years furrows.
    • The 3310 PHD™ is more consistent at higher seeding speeds
    • Producers can get more work done in the given conditions.
    • The 3310 PHD™ provides unsurpassed trash clearance
    • More separation between the opener and the packer wheel allows residue to flow better through the drill.

Read More




Specifications 3310 PHD™


Detailed Specifications

Detailed specifications available for 3310 Paralink Hoe Drill Systems.

3310 PHD Models 3310-40 3310-48 3310-55 3310-65 3310-75
Base Size 1,300 950 650 950 650
No. of Sections 3 5 5 5 5
Working Widths:
10" Spacing 40'0" 48'4" 55'0" 65'0" 75'0"
12" Spacing 40'0" 48'0" 54'0" 66'0" 74'0"
Frame Widths:
Main Frame 15'7" 15'7" 15'7" 18'4" 18'4"
Inner Wing 12'1" 10'2" 11'5" 13'2" 14'11"
Outer Wing - 6'1" 8'2" 10'4" 13'5"
Transport Width, Top 16' 22'6" 22'6" 24'3" 24'3"
Transport Width, Bottom 20'8" 20'9" 20'9" 23'8" 23'8"
Transport Height (max) 16'3" 14'1" 16'3" 16'10" 18'6"
Weights: (may be subject to change)
10" Spacing w MRB H 26,200 lb 30,950 lb 34,450 lb 42,000 lb 46,000 lb
12" Spacing w MRB H 24,500 lb 28,800 lb 31,950 lb 39,000 lb 42,800 lb
10" Spacing w/o MRB H 22,600 lb 26,550 lb 29,450 lb 36,000 lb 40,000 lb
12" Spacing w/o MRB H 21,400 lb 25,000 lb 27,650 lb 34,000 lb 37,000 lb
Tires: Available Options: (a = single wheel, b = dual wheel fixed, c = dual wheel pivot, d = dual wheel walking)
Main Frame Front 13.5Lx15FI (d) 13.5Lx15FI (d) 13.5x15FI (d) 16.5x16.1FI (d) 16.5x16.1FI (d)
Main Frame Rear 11Lx15FI (c) 11Lx15FI (c) 11Lx15FI (c) 13.5Lx15FI (c) 13.5Lx15FI (c)
Inner Wing Front 11Lx15FI (b,d) 11Lx15FI (b,d) 11Lx15FI (b,d) 13.5Lx15FI (b,d) 13.5Lx15FI (b,d)
Inner Wing Rear 11Lx15FI (a,b) 11Lx15FI (a,b) 11Lx15FI (a,b) 11Lx15FI (b) 11Lx15FI (b)
Outer Wing Front - 11Lx15FI (a,b,d) 11Lx15FI (a,b,d) 13.5Lx15FI (b,d) 13.5Lx15FI (b,d)
Outer Wing Rear - 11Lx15FI (a) 11Lx15FI (a) 11Lx15FI (a) 11Lx15FI (a)
Number of Openers
10" Spacing 48 58 66 78 90
12" Spacing 40 48 54 66 74
Front to Rear Wheelbase
with MRBs® 201½" 201½" 191" 191" 191"
without MRBs® 179" 179" 169" 169" 169"



General Specifications
Shank Spacing 10" or 12" (254mm or 305mm)
Trip Assembly Independent depth control with in-cab adjustable trip force
Packing Force In-cab adjustment from 70 - 200 lbs (30 kg to 90 kg force)
Opener Depth Adjustment Pin Style
Hydraulic Requirements - Recommended tractor capacity with 2 fans - 45 gpm
- Recommended flow for depth control remote - 30 gpm
- Unit will still function with less than recommended, but response times will increase
Packer Options 4.8" pneumatic
Opener Options BTT edge-on style opener with category 1 tips, BTT Advantage openers, or Atom Jet edge-on openers
Air Kits Single Shoot or Double Shoot
Blockage Monitors Optical blockage Monitors in Single Run (1 per manifold) or Full Run (1 per tertiary line)
Row to Row Spacing 37½" (0.95m)
Obstacle Clearance 8" for MRBs®, 10" without MRBs®
Safety Chains & Lights Standard
Wing Transport Locks Standard
Mid Row Banders® Optional, adjustable hydraulic trip, MRB®H can be locked up with single valve
PHD™ Opener Lockup Standard - ability to lock up all PHD™ openers for the use of MRBs® in fertilizer only applications
Row Cropping Config. Optional, valving to retract every second opener for 20" (0.5m) spacing on 10" (254mm) spaced units, and 24" (.61m) on 12" (305mm) spaced units
Rear Tow Hitch Standard
Rear Drop Hitch Optional, for pulling liquid or NH3 tanks with lower hitch pull points
