FH 330 Series Floating Hitch CultivatorPast Performers



Years In Service


1986 - 1991

Superior Performance


FH 330 Series have twelve floatation tires under all 3-plex models and eighteen under our 5-plex model

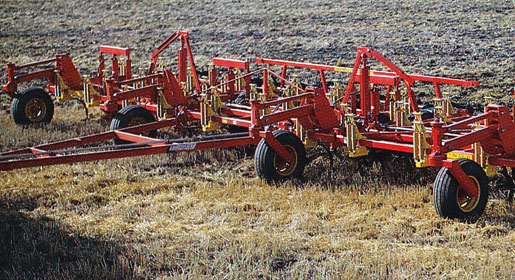

The FH 330 Series Floating Hitch Cultivator delivered excellent performance in the toughest tillage and seeding demands.

  • Offered from 28' to 52' working widths.
  • All FH 330 Series Cultivators used a 330 lb. initial tension spring cushion shank assembly.
  • 8" spacing in combination with a full 5-row frame construction provided superior results.
  • 40" spacing between shanks on the first and second rows facilitated good trash flow.

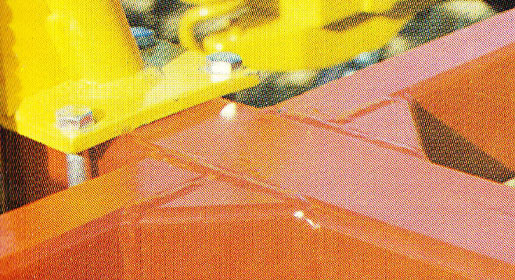

High tensile strength, hollow structural frame tubing

Superior Performance in the Toughest Tillage & Seeding Situations

  • The Floating Hitch System was a standard feature on the 330 series.
  • The Quick Shift Depth Control was a standard feature on all the Floating Hitch Series cultivators and could also be retrofit to any Bourgault tillage utilizing the Bourgault cylinder master - slave hydraulic system.
  • The walking axle/castor wheel hydraulic lift system provides this unit with a one time levelling requirement. In hilly land conditions depth control is unparalleled.
  • The increasing popularity of air seeding, accurate depth control has become very important.
  • One of the most common reasons for poor depth control is inadequate floatation. FH 330 Series have twelve floatation tires under all 3-plex models and eighteen under our 5-plex model.
Read More

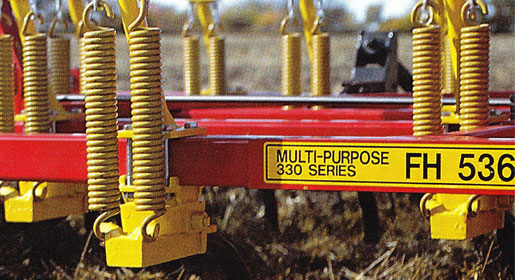

330 lb. Spring Trip System


All 330 series cultivators used a 330 lb. initial tension spring cushion shank assembly.

The double extension spring design is set with an initial tension of 330 lbs.

  • The body is constructed of ductile steel casting with a single 7/8" pivot point and Nylatron wear bushing.
  • 7/8" x 2" tempered shank.
  • 27" sweep-to-frame clearance.
  • 15" actual obstacle clearance.
  • Standard sweep used is a 1/4" x 11"



Specifications




Expand to access detailed product specifications.  Scroll left & right to see all models.


330 Series FH 528-34 FH 536-42 FH 546-52
Weights 8,870 lbs. at 33'4" 11,968 lbs. at 41'4" 17,725 lbs. at 52'
Sizes 28', 29'4", 30'8", 32', 33'4" 36', 37'4", 38'8", 40', 41'4" 46'8", 48', 49'4", 50'8", 52'
Max. Transport Dimensions Height -12', Width - 21' Height - 16'5", Width - 21' Height - 16'3", Width - 25'3”
Hydraulic Specifications Four depth control cylinders with 4 ¼" x 8" master Four depth control cylinders with 4 ¼" x 8" master Four depth control cylinders with 4 3/4" x 8" master
Axles Four walking-axles Four walking-axles Six walking-axles
Castor Wheels Four castor wheels Four castor wheels Six castor wheels
Tires
Main Frame Four 11 x 15LT - 8-ply Four 11 x 15LT - 8-ply Four 11L x 15 -12 -ply
Wings Four 11L x 15 - 6-ply Four TIL x 15 - 6-ply Eight 11L x 15 - 6-ply
Castor Wheels Four 11L x 15 - 6-ply Four TIL x 15 - 6-ply Six 11L x 15 - 6-ply
General Specifications
Frame 3 1/2" tubular frame construction.
4" x 3" tubular hitch.
5-row frame construction.
8'6" frame depth.
Shank Spacing 8" overall.
32" minimum row shank spacing.
40" minimum on the front row.
Spring Cushion Ductile steel casting with a single 7/8" pivot point and Nylatron wear bushing.
Double extension spring with an initial tension of 330 lbs.
7/8" x 2" tempered shank.
27" sweep-to-frame clearance.
15" actual obstacle clearance.
Standard sweep used is a 1/4" x 11" Bourgault PW-1147.
Hydraulic System Wheel-lift system - rephasing Eaton/Cessna Wyrlock cylinders con­nected in series.
Wing-lift system - scissor type.
5/8" and 3/8" lines with a zinc chromate finish.
New variable depth/precision control valve prevents outside interference with the rephasing hydraulic system.
Axles & Wheels Walking axles with greaseable sealed bearings in the pivot hub. Front castoring wheels which have a large pivot shaft and Nylatron wear bushings.
5,000 lb. greaseable hubs and spindles for the wheel assemblies throughout



Read More
