FH 230 Series Floating Hitch CultivatorPast Performers



Years In Service


1986 - 1991

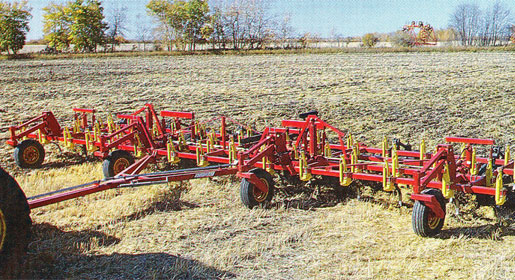

Versatile Tillage Implement


FH 330 Series have twelve floatation tires under all 3-plex models and eighteen under our 5-plex model

Designed for light and medium primary tillage when using an 11" sweep, or a 4" sweep or 2" reversible spike for heavy primary tillage conditions.

  • Offered at 32' to 52' working widths
  • The 8" spaced, full 5-row design achieves superior trash clearance capability along with smooth field finish
  • 3½” tubular frame construction
  • 32" minimum row shank spacing
  • Retractable pole hitch
  • 8'6" frame depth

High tensile strength, hollow structural frame tubing

The FH 230 series 3-plex models were equipped with twelve floatation tires and the 5-plex model was equipped with eighteen tires ensuring excellent floatation.

Front castoring wheels have a large pivot shaft and nylatron wear bushings to ensure years of reliable service.

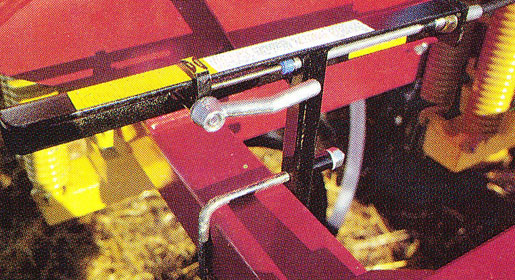

Precision Depth Control Hydraulics

  • Quick Shift Depth Control allows the operator to easily adjust the cylinder stroke from a remote and convenient position outside the cultivator frame. It also has a unique precision calibration feature which insures precise depth adjustment especially critical when air seeding.
  • Double Line Lock/Pressure Limit Valve is incorporated into the slave cylinder hydraulic depth-control system, for better depth control and overall system performance.
Read More

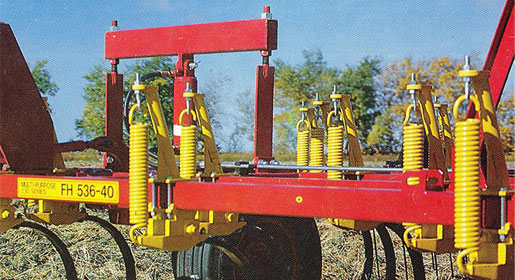

FH 230 Spring Trip Assembly


All 330 series cultivators used a 330 lb. initial tension spring cushion shank assembly.

The following combination of features make the shank assembly an outstanding value:

  • 3/4" x 2" tempered shank
  • There is only one wear point on each spring cushion assembly, protected by a nylatron bushing which requires no greasing and is exceedingly resistant to wear.
  • A single extension spring applies a constant 230 lbs. of initial tension.



Specifications




Expand to access detailed product specifications.


230 Series FH 528-32 FH 536-40 FH 546-52
Weights 8,506 lbs. at 32' 9,434 lbs. at 40' 12,000 lbs. at 52'
Max. Transport Dimensions height – 11’5", width - 21' height - 15'9", width - 21' height - 16'3", width @ top - 25'3"
Hydraulic Specifications Four depth control cylinders with a  4¼” x 8" master Four depth control cylinders with a  4¼” x 8" master Four depth control cylinders with a  4½” x 8" master
Axles Four walking-axles Four walking-axles Six walking-axles
Castor Wheels Four castor wheels Four castor wheels Six castor wheels
Tires
Main Frame four 9 x 15LT - 8-ply four 9 x 15LT - 8-ply four 11 x 15LT - 8-ply
Wings four 9.5L x 15 - 6-ply four 9.5L x 15 - 6-ply eight 9.5L x 15 - 6-ply
Castor Wheels four 9.5L x 15 - 6-ply four 9.5L x 15 - 6-ply two 11L x 15 - 6-ply/ four 9.5L x 15 - 6-ply
General Specifications
Frame 5-row frame, 3½” tubular frame construction
Retractable pole hitch
8'6" frame depth
Shank Spacing 8" shank spacing
32" minimum row shank spacing
Spring Cushion Ductile steel casting with a single 3/4" pivot in and nylatron wear bushing
Single extension spring with an initial tension of 230 lbs.
3/4" x 2" tempered shank (7/8" x 2" optional)
27" sweep-to-frame & 15" actual obstacle clearance
Standard sweep used is a ¼”x 11" Bourgault PW-1147
Hydraulic System Wheel-lift system - rephasing Eaton/Cessna Wyrlock cylinders connected in series
Wing-lift system - scissor type
5/8" and 3/8" lines with a zinc chromate finish
Variable Depth/Precision Control Valve prevents outside interference with the rephasing hydraulic system
Axles & Wheels Walking axles with greasable sealed bearings in the pivot hub
Front castoring wheels feature a large pivot shaft and nylatron wear bushings
5,000 lbs. hubs and spindles



Read More
