8810 Floating Hitch CultivatorPast Performers



Years In Service


1996 - 2011

8810 Floating Hitch Cultivator


8810 Floating Hitch Cultivator

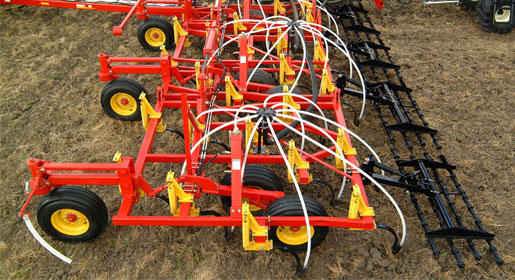

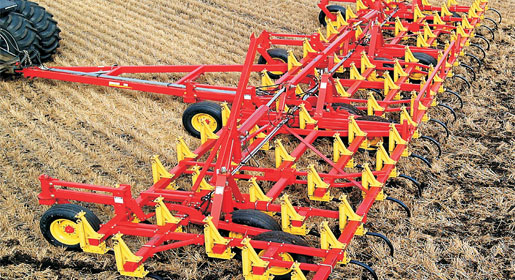

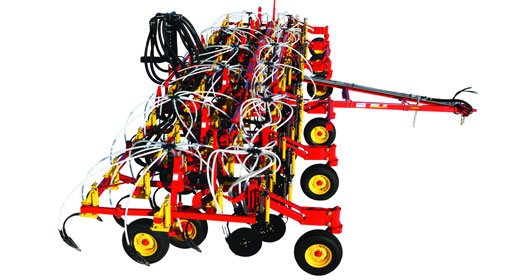

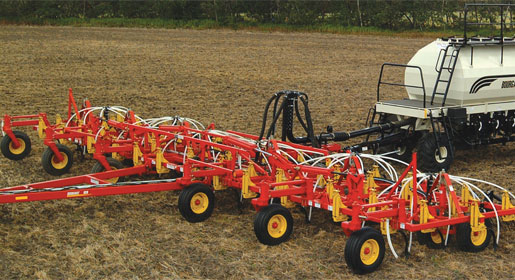

The 8810 Floating Hitch Cultivator is an extremely adaptable agriculture implement, able to be set up for tillage or as an effective seeding system. The clean and simple floating hitch design, durable construction, and superior residue flow characteristics have made this toolbar a mainstay, particularly those prone to wetter conditions.

  • Available in 24' to 60' working widths, and 8" or 10" spacings.
  • 5 row construction with a 4" x 4" x ¼" structural tubing frame.
  • Wear points are protected with case harden steel or composite bushings on chrome pins so less grease locations are required.

4-row Fixed Hitch Applicator

Durable & Versatile

Frame Design - The 8810 frame is designed to handle heavy tillage operations, as well as MRBs and field markers.

  • 5 row truss type construction
  • 4" x 4" x ¼" structural tubing rows with 2" x 2" x ¼" tubing stringers.

Low Maintenance - Wear points are protected with; nylon case harden steel or composite bushings on chrome pins.  These features allow the 8810 to require less grease locations and longer greasing intervals.

Dependable Running Gear -  The 6000lb hubs are fitted with triple lip seal pressed into the hub to prevent damage from debris wrapping. Bearings can be over-pumped with grease without damage to the seals.

Excellent Contouring Characteristics - The ability to follow field contours is related to frame depth and wheel position. Front castor wheels are positioned close to the front row, and the walking axle centred in the frame to realize a short contour depth.

Superior & Dependable Hydraulic System - Bourgault tillage units are designed with a master - slave system to control the operating depth (either single or dual-series). This approach avoids the use of complex linkage systems that wear and stretch, dramatically affecting the depth control.

Single Point Depth Control - The Bourgault Quick Shift Adjust provides easy and effective single-point depth control.

Read More



Bourgault Spring Trip Assembly


4-Row Fixed Hitch Shank

The 8810 Cultivator is designed around the renowned Bourgault Spring Trip Assembly.

  • Handle Maximum Residue w/ Minimum Effort
  • Offered with the 230lb or 330lb Spring Cushion Trip

4-Row Fixed Hitch Shank
  • Handle Maximum Residue w/ Minimum Effort - 5 row design allows for optimal trip layout design, with excellent clearance around the wheels to ensure good residue flow;
    • 8" unit: 32"min. spacing on adj. shanks
    • 10" unit: 40" min. spacing on adj. shanks
  • 230 Spring Cushion - for medium primary tillage conditions.
    • Select between the standard 7/8" x 2" tempered shank or short 7/8" x 2" shank (designed for use with knives).
    • 3/4" pivot bolt.
    • Single extension spring with a 230 lb. initial tension.
  • 330 Spring Cushion - designed for extreme primary tillage conditions.
    • Select between the standard 7/8" x 2" tempered shank or short 7/8" x 2" shank (designed for use with knives).
    • 7/8" pivot bolt.
    • Two extension springs with a 330 lb. initial tension.
Read More



8810 Series Features & Options


Heavy Duty Mounted Packers

The 8810 Cultivator is designed around the renowned Bourgault Spring Trip Assembly.

  • Bourgault Mounted Packers provide excellent seedbed results when using a tillage system for seeding.
  • Mounted Tine Harrows will break lumps and even the soil for general tillage, or lightly seal the seedbed in a seeding operation.
  • Bourgault Titan™ Quik-Detach Arms are designed for quick and easy attachment or interchange of mounted harrows and packers to accomplish various operations with the same unit.
  • Series 20 or Series 25  Mid Row Banders® allow you to configure your tillage unit into a low disturbance seeding tool.

Mounted 4 Row Harrows

Bourgault Titan™ Mounting Arms

  • The unique force and harrow height adjustment mechanism, with 6 easy settings, requires no wrenches.
  • The heavy compression spring assures you of all the down force required and provides for an obstacle clearance of 22" (.56 m).
  • Two styles available:
    • Quick Adjust - includes the force and harrow height adjustment mechanism.
    • Quick Adjust/Detach (QD) - includes the force and harrow height adjustment mechanism and a quick-attach bracket which allows you to convert between harrows and mounted packers in minutes.

Independent Mounted Packers

  • Independent poly-packers excel if seeding in stony land. Each poly packer wheel is mounted on a gang with its own spring cushion and sealed ball bearings.
  • Independent movement on each wheel ensures more uniform packing for a more consistent crop emergence.

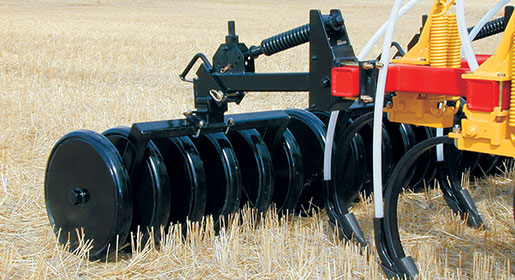

Gang Style Mounted Packer

  • Gang style poly-packers are ideal where moderate packing is required for breaking soil lumps and sealing the seedbed.
  • The 20" (58 mm) diameter durable polyethylene packers are mounted on a 1" (25 mm) shaft and heavy-duty pillow block bearings.

Heavy Duty Gang Style Mounted Packers

  • Achieve near-drill like packing results with your 10" (254 mm) spaced units.
  • The 22" (559 mm) diameter packers are available in 2¼" (57 mm) & 3½" (89 mm) steel, 2" (51 mm) & 3" (76 mm) semi-pneumatic, and 5½" (140 mm) wide pneumatic wheels.
  • Mid Row Banders® or a weight kit is required to offset the weight on the back.

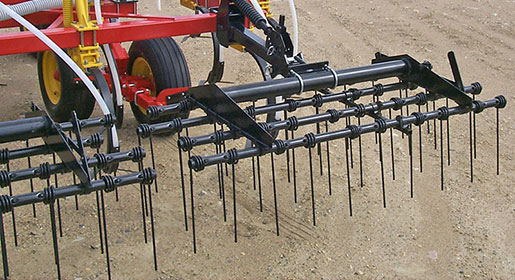

Mounted Harrows

  • 3 Bar Harrow - 3/8" x 16" double tines with 9" centres with 3" overall spacing.
  • 3 Bar Heavy Duty Harrow - 1/2" x 20" double tines with 8" centres with 2.66" overall spacing.
  • 4 Bar Harrow -  7/16" x 16" double tines on 8" centres with 2" overall spacing.

Additional Optional Attachments

  • Eliminate side hill skewing with Side Draft Eliminators.
  • Keep your wheel clean in wet conditions with Spring Action Mud Scrapers.
  • The adaptable Mounted Trailing Hitch allows operators to attach carts behind Bourgault tillage units.
Read More



Specifications




Expand to access detailed product specifications.  Scroll left & right to see all models.



Model 8810-24 8810-28 8810-35 8810-11/15** 8810-48 8810-54
No. of Sections 3 3 3 3 5 5
No. of Rows 5 5 5 5 5 5
Working Widths:
8 " spacing

24' 0"
26' 8"
29' 3"
-

25' 3"
28' 0"
-
-

28' 0"
30' 8"
33' 3"
-

29' 3"
32' 0"
-
-

34' 8"
37' 3"
40' 0"
-

36' 0"
38' 8"
-
-

36' 0"
40' 0"
44' 0"
48' 0"

37' 3"
41' 3"
45' 3"
49' 3"

38' 8"
42' 8"
46' 8"
-

48' 0"
50' 8"
-
-

49' 3"
52' 0"
-
-

54' 8"
57' 3"
60' 0"
-

56' 0"
58' 8"
-
-

10"  spacing

25' 0"
28' 3"
-

26' 8"
30' 0"
-

28' 3"
31' 8"
-

30' 0"
33' 3"
-

35' 0"
38' 3"
-

36' 8"
40' 0"
-

36' 8"
41' 8"
46' 8"

38' 3"
43' 3"
48' 3"

40' 0"
45' 0"
50' 0"

48' 3"
51' 8"
-

50' 0"
-
-

55' 0"
58' 3"
-

56' 8"
60' 0"
-

Frame Widths:
Main Frame 12' 10" 12' 10" 14' 2" 15' 6" 15' 6" 15' 6"
Inner Wing 6' 1" 7' 9" 10' 6" 10' 4"  8' 8" 11' 3"
Outer Wing - - - - - -
Transport Width 17' 8" 17' 8" 19' 0" 20' 6" 25' 1" 26' 0"
Transport Height (max) 12' 6" 13' 11" 16' 3" 14' 2" to 20' 8' 14' 3" 16' 4"
Weights: (with 330lb trips)
8" spacing 11,020 lb 11,880 lb 12,650 lb 1,2900 lb 18,600 lb 21,830 lb
10" spacing 10,700 lb 11,340 lb 11,930 lb  12,190 lb 17,620 lb 20,480 lb
Tires:
Main Frame 9.5Lx15 (4) 9.5Lx15FI (4) 11Lx15FI or
12.5Lx15FI (4
11Lx15FI or
12.5Lx15FI (4)
12.5x15FI (4) 12.5x15FI (4)
Inner Wing 9.5Lx15 (4) 9.5Lx15 (4) 9.5Lx15 (4) 11Lx15 (4) 9.5Lx15 (4) 11Lx15 (4)
Outer Wing - - - - 9.5Lx15 (4) 9.5Lx15 (4)
Main Frame Casters 9.5Lx15 (2) 9.5Lx15 (2) 11Lx15 (2) 11Lx15 (2) 11Lx15 (2) 11Lx15 FI (2)
Inner Wing Casters 9.5Lx15 (2) 9.5Lx15 (2) 9.5Lx15 (2) 11Lx15 (2) 9.5Lx15 (2) 11Lx15 (4)
Outer Wing Casters - - - - 9.5Lx15 (2) 9.5Lx15 (2)

**8810-11/15: This unit is marketed in Australia only. It is not available for North America or Europe.
