8800 Floating Hitch CultivatorPast Performers



Years In Service


1992 - 1996

8800 Floating Hitch Cultivator


8800 Floating Hitch Cultivator

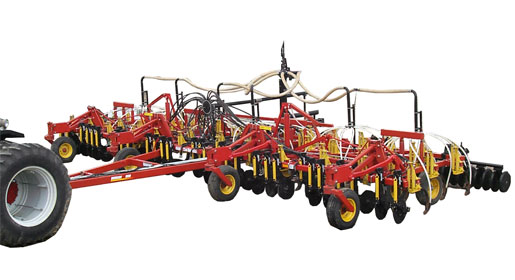

The 8800 Field Cultivator combines the field finish of a field cultivator with the trash clearance of a chisel plow.

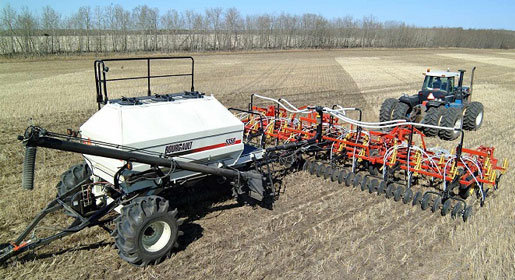

  • The 8" spaced 5-row floating hitch cultivator was popular for air seeding.
  • Offered with 375 lb. or 500 lb. spring trip openers.
  • Available from 28' to 60' working widths.

High tensile strength, hollow structural frame tubing

Ideal for Air Seeding, Tillage, & Granular Incorporation

  • The full 5-row frame construction consists of hollow structural frame tubing, providing high tensile strength.
    • 102" frame depth
    • 11'4" between the caster wheel and centre walking axle pivot
    • Easy front to back levelling

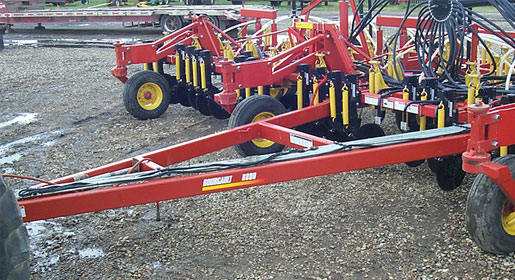

  • Pole hitch on models up to 40' provide a tighter turning radius.
  • Patented parallel lift linkage system
  • Greaseless caster wheel parallel link
Read More

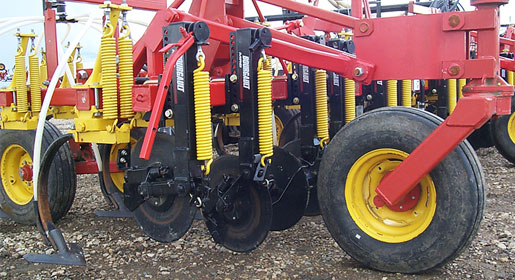

8800 Cultivator Shank Assembly


The 8800 is the 8" spacing 5-row floating hitch

The 8800 Cultivator was available with a 375 lb. or 500 lb. working force spring trip. Generally speaking, both trips perform equally well in most soils, however the 375 pound assemblies were recommended in the more stony soils whereas the 500 pound assemblies were recommended in the tougher soils.


The 8800 Cutlivator was available with a 375 pounds per foot working force trip or a 500 pounds per foot working force trip.

Shank Assembly

Bourgault trips constructed with ductile steel castings and a single pivot point and Nylatron® wear bushing.

  • 375 lb. initial tension spring trip with 3/4" shank
  • 500 lb. initial tension spring trip with 7/8" shank
  • Standard sweep - 47 degree stem, 1-3/4" holes centers, 1/4" x 11"

Cultivator Characteristics

  • 8" overall shank spacing
  • 32" minimum between any two shanks
  • 27" ground to frame clearance
  • 12" obstacle clearance with conventional sweeps
Read More



8800 Cultivator Attachments


Mounted Harrows
  • Bourgault 3 bar or 4 bar harrows provide a superior field finish.
  • Equip with mounted packers and narrow openers to achieve minimum or no-till seeding.
  • An optional "Quick Attach" bracket allows conversion of the harrow system to the mounted packer system in minutes.

Mounted Pacers for Minimal or No-Till Seeding

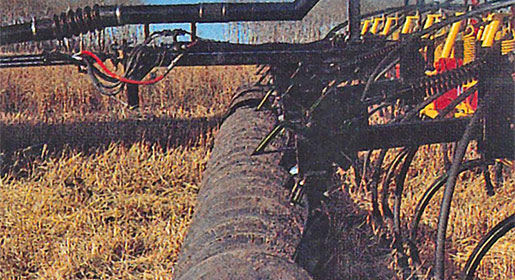

Mounted Packers for Direct Seeding

Equip your Bourgault cultivator with mounted packers and narrow openers to achieve minimum or no-till seeding.

After seeding, remove the openers and quick change packers, install sweeps and harrows and you've converted the implement back to a cultivator.

  • Mounted Packers fit all Bourgault 8 inch and 12 inch spaced cultivators.
  • The 7, 8, 9 and 10 wheel gang forces are adjustable from 40 to 70 pounds.

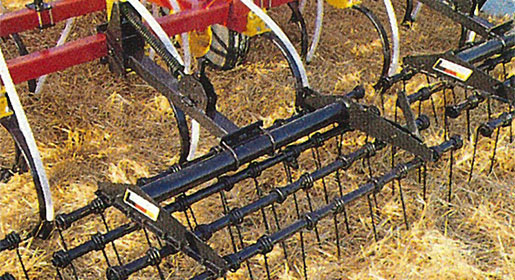

Superior Field Finish

Bourgault 3 bar or 4 bar harrows provide a superior field finish over all others. A heavy duty compression spring delivers the necessary down force while still providing 22" of obstacle clearance. Only 3/8" x 16" straight tines are used to provide uniform trash shedding.

Built with serviceability in mind, pivot points are equipped with Nylatron® bushings, which means NO GREASING. An optional "Quick Attach" bracket allows conversion of the harrow system to the mounted packer system in minutes.

Available Sizes:

  • 3 bar - 4½ ft. (1.37 m) 6 ft. (1.8 3 m)
  • 4 bar - 5 ft. (1.52 m) 6½ ft. (1.98 m)
Read More



Specifications




Expand to access detailed product specifications.  Scroll left & right to see all models.



Base Size 28' (Triplex) 36' (Triplex) 46' (Five-plex) 54' (Five-plex)
Available Working Widths

28' (8.53 m), 29'4" (8.94 m)
-
30'8" (9.34 m), 32' (9.75 m)

36' (10.97 m). 37'4" (11.38 m)
-
38'8" (11.79 m), 40' (12.19 m)"

46'8" (14.22 m)
48' (14.63 m)
49'4'' (15.03 m), 50'8" (15.44 m)
52' (15.85 m)

54'8" (16.67 m). 56' (17.06 m)
57'4" (17.48 m)
58'8" (17.88'' m),
60' (18.28 m)

Transport Width 18'4" (5.59 m) 21' (6.40 m) Top - 25'3" (7.70 m) 27'6" (8.38 in)
Transport Height - maximum 12'9" (3.89 m) 15'9" (4.57 m) 16'3" (4.95 m) 196" (5.94 m)
Weight with 375 lb./ft. Trip 9.087 lbs. (4.123 kg.) 10.729 lbs. (4.868 kg.) 15.331 lbs. (6.956 kg.) 18.000 lbs. (8.167 kg.)
with 500 lb./ft. Trip 9,780 lbs. (4.437 kg.) 11,613 lbs. (5.269 kg.) 15.805 lbs. (7.171 kg.) 19.100 lbs. (8.667 kg.)
Tires with 375 lb./ft. Trip
Main Frame four 9 x 15LT - 8 ply four 9 x 15LT - 8 ply four 11 x 15LT - 8 ply four 11 x 15LT - 12 ply
Inner Wings - - four 9.5L x 15 - 6 ply four 9.5L x 15 - 6 ply
Outer Wings four 9.5L x 15 - 6 ply four 9.5L x 15 - 6 ply four 9.5L x 15 - 6 ply four 9.5L x 5 - 6 ply
Main Frame Caster Wheels two 9.5L x 15 - 6 ply two 9.5L x 15 - 6 ply two 11L x 15 - 6 ply two 11L x 15 - 6 ply
Wing Caster Wheels two 9.5L x 15 - 6 ply two 9.5L x 15 - 6 ply four 9.5L x 15 - 6 ply four 9.5L x 15 - 6 pi)
Tires with 500 lb./ft. Trip
Main Frame four 11 x 15LT - 8 ply four 11 x 15LT - 8 ply four 11 x 15LT - 12 ply four 11 x 15LT - 12 ply
Inner Wings - - four 11L x 15 - 6 ply four 11L x 15 - 6 ply
Outer Wings four 11L x 15 - 6 ply four 11L x 15 - 6 ply four 11L x 15 - 6 ply four 11L x 15 - 6 ply
Caster Wheels four 11L x 15 - 6 ply four 11L x 15 - 6 ply four 11L x 15 - 6 ply four 11L x 15 - 6 ply

**8810-11/15: This unit is marketed in Australia only. It is not available for North America or Europe.
