6800 Floating Hitch CultivatorPast Performers



Years In Service


1992 - 2000

A Reliable & Durable Workhorse

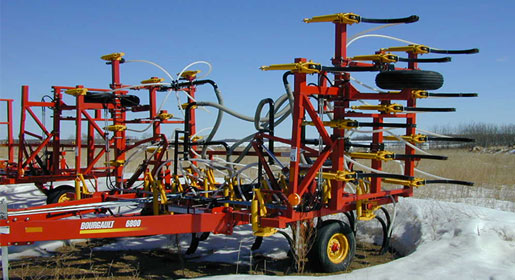

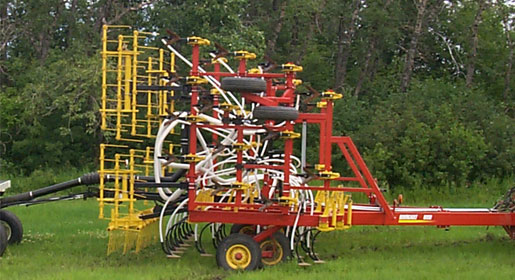

The Bourgault 6800 Fixed Hitch 4-Row Cultivator

The Bourgault 6800 Fixed Hitch 4-Row Cultivator are multiple purpose tillage units capable of low disturbance seeding, primary tillage, and fertilizer application.

  • Offers from 24' to 50' working widths
  • 8" overall shank spacing
  • High tensile strength, hollow structural frame tubing
  • Full 4-row frame construction around the wheels
  • 96" frame depth
  • Heavy duty fixed design hitch is built for many seasons of heavy duty tillage

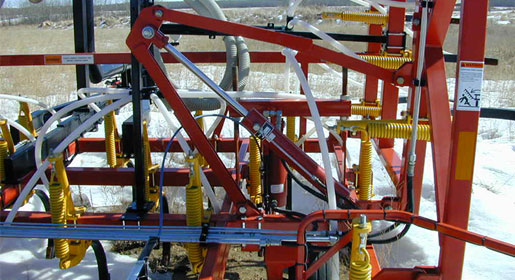

Legendary Bourgault Trip Assembly


The 8800 Cutlivator was available with a 375 pounds per foot working force trip or a 500 pounds per foot working force trip.

The 6800 Fixed Hitch Cultivator was available with two trip options:

  • 375lb initial trip force - recommended in the more stony soils;
  • 500lb initial trip force - recommended in the tougher soils.

32" minimum between any two shanks
  • Ductile steel castings with a single pivot point and Nylatron® wear bushing
  • 32" minimum between any two shanks
  • 3/4" shank standard on 375 lbs. trips
  • 7/8" shank standard on 500 lbs. trips
  • 27" ground to frame clearance
  • 12" obstacle clearance with conventional sweeps
  • Standard sweep - 47 degree stem, 1-3/4" holes centers, 1/4" x 11"
Read More



Specifications




Expand to access detailed product specifications.  Scroll left & right to see all models.


Base Size 24' 28' 34' 36' 46'
Available Working Widths

24' (7.31 m), 25'4" (7.72 m)
26'8" (8.13 m), 28' (8.53 m)

28' (8.53 m).29'4" (8.94 m)
30'8"(9.34 m),32' (9.75 m)

33'4" (10.16 m),34'8" (10.57 m)
36' (10.97 m). 37'4" (11.38 m)

36' (10.97m',37'4" (11.38m)
38'8" (11.79 m), 40' (12.19 m)

45'4" (13.82 m).46'8" (14.22 m)
48' (14.63 m), 49'4" (15.03 m)

Number of Frame Sections three three three three five
Transport Width 18'3" (5.56 m) 19'8" (5.99 m) 17'6" (5.33 m) 21' (6.40 m) top - 22'3" (6.78 m)
Transport Height - max 11' (3.35 m) 13' (3.96 m) 13' (3.96 m) 15'9" (4.80 m) 16'2" (4.93 m)
Weight - Base Size 5,119 lbs. (2,323 kg.) 6,623 lbs. (3,005 kg.) 7,300 lbs. (3,312 kg.) 8,017 lbs. (3,637 kg.) 12,261 lbs. (5,563 kg.)
Tires Main Frame two 9.5L x 14 - 6 ply four 9.5L x 14 - 6 ply four 9.5L x 14 - 6 ply four 9.5L x 14-6 ply four 9.5 x 15LT - 8 ply
Inner Wings - - - - four 7.60 x 15 - 4 ply
Outer Wings two 7.50 x 14 - 4 ply four 7.50 x 14 - 4 ply four 7.50 x 14 - 4 ply four 7.50 x 14 - 4 ply two 9.5L x 15 - 6 ply
Stabilizer Wheels two 7.50 x 14 - 4 ply two 7.50 x 14 - 4 ply two 7.50 x 14 - 4 ply two 7.50 x 14 - 4 ply two 7.60 x 15 - 4 ply
