Specifications
Expand to access detailed product specifications. Scroll left & right to see all models.

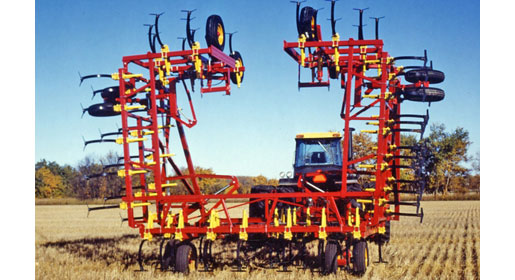

Fixed Hitch 4-Row Series |
Model 24-28 |
Model 28-32 |
Model 36-40 |
Model 46-50 |
Weights |
5,647 lbs. at 28' |
7,188 lbs. at 32' |
8,521 lbs. at 40' |
12,695 lbs. at 49'4" |
Sizes |
24', 25'4", 26'8", 28' |
28', 29'4", 30'8", 32' |
36', 37'4", 38'8", 40' |
45'4", 46'8", 48', 49'4" |
Max. transport dimensions
with sweeps |
height - 11', width - 18'8" |
height - 12'3", width - 19'10" |
height - 14'8", width - 22'3" |
height -16'2", width - 19'10'' |
Hydraulic specifications |
four depth control cylinders
with a 4¼" x 8" master |
four depth control cylinders
with a 4¼" x 8" master |
four depth control cylinders
with a 4¼" x 8" master |
six depth control cylinders
with a 4½" x 8" master |
Wheel Standards |
four single axles |
four walking axles |
four walking axles |
|
|
|
two stabilizer wheels (optional) |
two stabilizer wheels (optional) |
four walking axles |
|
|
|
|
two single axles |
|
|
|
|
two stabilizer wheels |
Tires - Main frame |
two 9.5L x 14 - 6-ply |
four 9.5L x 14 - 6-ply |
four 9.5L x 14 - 6-ply |
four 9.5L x 15LT - 8-ply |
- Outer wings |
two 7.50 x 14 - 4-ply |
four 7.50 x 14 - 4-ply |
four 7.50 x 14 - 4-ply |
two 9.5L x 15 - 6-ply |
- Inner wings |
|
|
|
four 7.60 x 15 - 4-ply |
- Stabilizer wheels |
|
two 7.50 x 14 - 4-ply
(optional) |
two 7.50 x 14 - 4-ply
(optional) |
two 7.60 x 15 - 4-ply |
General Specifications |
|
Frame |
3½" tubular frame construction
8½" x 2" tubular hitch
4-row frame construction around the wheels and on the center section
8' frame depth |
Shank spacing |
8" overall
24" minimum row shank spacing
32" minimum on the front row and most of the second assemblies throughout |
Spring Cushion |
ductile steel castings with a single 3/4" pivot point and nylatron wear bushing.
single extension spring with an initial tension of 230 lbs
3/4'' x 2" tempered shank (7/8" x 2" optional)
27" sweep-to-frame clearance
15" actual obstacle clearance
standard sweep used is a PW-1147 |
Hydraulic system |
wheel lift system - rephasing Eaton/Cessna Wyrlock cylinder connected in series
scissor wing lift system
5/8" and 3/8" line with a zinc chromate finish
single line lock valve to maintain a closed hydraulic system for accurate depth control. |
Axles and wheels |
single and walking axles
5,000 lb. hubs and spindles for the wheel |
