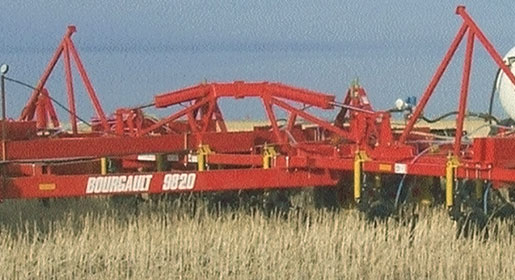

9820 Rigid Hitch Coulter ApplicatorPast Performers



Years In Service


2000 - 2002

Effective Fertilizer Application


The 9820 is an excellent fertilizer applicator when minimal disturbance is a must.

The coulter’s slicing action permits the 9820 to apply
the fertilizer in the “root zone” of hay or crop land without damage to the vegetation.

  • The 9820 is a 3-plex rigid hitch unit that was offered in sizes from 28’ to 40’.
  • 18” coulter with 450 lbs. down force
  • 26” ground clearance
  • Choice of regular 12” or wider grassland closer wheel.
  • Gauge wheels optional on 9820 applicators.



Excellent Choice for Low Disturbance!

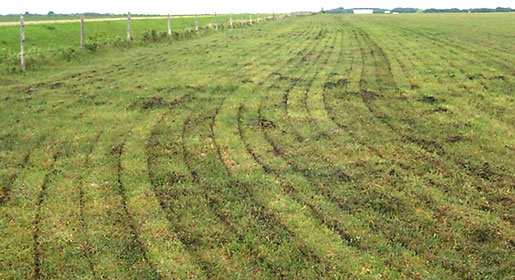

When fertilizing hay or crop land the coulter provides efficient nitrogen placement with minimal disturbance.

In locations where soil moisture is at a premium, these machines apply fertilizer with minimal moisture loss.  Banding has proven to be a more efficient method of applying fertilizer when compared to spreading.

Benefits of the Bourgault 9820 Rigid Hitch Coulter Applicator include:

  • Fertilize Hay or Crop Land
  • Low Operating Costs
  • Operate in Stony Land Without Pulling Rocks



Specifications




Expand to access detailed product specifications.


Model 9820-28 9820-36
Number of sections 3 3
Number of rows 4 4
Base Size, 12" Sp. 28' 36'
     Extended sizes 30’, 32’, 34’ 38’, 40’
Base Size, 15" Sp. 27’6” 35’6”
     Extended sizes 30’, 32’6” 38’, 40’6”
Frame Width
Main frame 13’ 6” 13’ 6”
Wing 7’ 3” 11’ 3”
Transport width, max 18’ 8” 18’ 8”
Transport height, max 11’ 5” 15’ 6”
Tire Sizes:
Main frame 9L x 15", FI
Load range 'D'
11L x 15", FI
Load range 'D'
Wing 9.5L x 15", 6 ply 9.5L x 15", 6 ply
Weight of Base Unit:
Max. weight with ballast 11,200 lbs. 14,400 lbs.
General Specifications:
Spacing 12” spacing - other spacings available by request
Coulter Assemblies

18” coulter with 450 lbs. down force and 26” ground clearance.
Mounted on a 2000 lb hub with a triple lip seal.

Closer Wheels

Recommended with NH3 application.
Choice of Regular 12" or Grassland closer wheel.

Harrows or Packers Optional 3 or 4 bar harrow or mounted packers
Tow Hitch Optional
Gauge Wheels Optional
Safety Lights Standard
Safety Chain Standard
Depth Control Setting Single Point
Mud Scrapers Optional
Weight Packages Recommended to aid penetration
Single Shoot Air Kits Optional
Blockage Monitors Optional
