6200 Fixed Hitch ApplicatorPast Performers



Years In Service


1992 - 2000

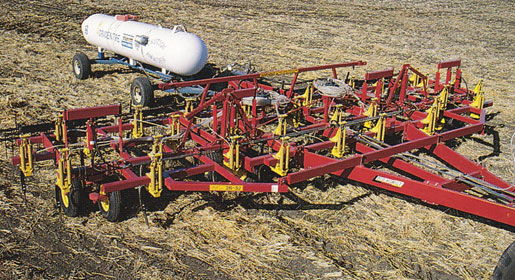

6200 Fixed Hitch Shank Applicator


The 6200 Fixed Hitch Applicator

The 6200 Fixed Hitch Shank Anhydrous Ammonia applicator features a four row frame design offering excellent trash clearance with trips mounted on a 12" spacing.

  • High tensile strength hollow structural frame tubing.
  • 96" Frame Depth
  • Heavy Duty Fixed Hitch to transfer load to tractor.
  • Stabilizer wheels optional

The 6200 Fixed Hitch Applicator

Unmatched Performance & Durability

  • High tensile strength hollow structural frame tubing with gusseting to ensure years of trouble-free performance.
  • Full 4-row frame construction around the wheels,
  • Frame Depth is  96" frame depth,  a minimum of 27" ground to frame clearance.
  • An Ammonia Tank rear tow hitch fastens to the rear and center beam of the applicator
  • "Flip-up" extension stubs adjust the applicator to the desired width in seconds. Unpin, and flip the extensions up and out of the way...6 feet of adjustment in 2 foot increments
Read More



Model 6200 Shank Assembly


Available with the 250lb or 330lb spring trip assembly.

The four row frame design offers excellent trash clearance for non-stop, no-plug performance.

  • Choice of 250 pound or 330 pound trips.
  • Ductile steel castings with a single pivot point and Nylatron® wear bushing
  • 7/8" x 2" tempered shanks with 1-3/4" holes centers, available in regular length, or shortened for knives.
  • A minimum of 27" ground to frame clearance.
  • 12" shank spacing, 36" minimum between any two shanks
  • Standard or "Quick Change" Ammonia Knives.



Specifications




Expand to access detailed product specifications.


Base Size 24' 28' 34' 36' 46'
Available Working Widths 24' (7.31 m), 26' (7.92 m) 28' (8.53 m), 30' (9.14 m) 34' (10.36 m), 36' (10.97 m) 36' (10.97 m), 38' (11.58 m) 46' (14.02 m), 48' (14.63 m)
  28" (8.53 m), 30' (9.14 m) 32' (9.75 m), 34' (10.36 m) 38' (11.58 m), 40' (12.19 m) 40' (12.19 m), 42' (12.80 m) 50' (15.24 m)
Number of Frame Sections 3 3 3 3 5
Transport Width 18'3" (5.56 m) 19'8" (5.99 m) 17'6" (5.33 m) 21' (6.40 m) Top - 22'3" (6.78 m)
Transport Height - Max 11' (3.35 m) 13' (3.96 m) 13' (3.96 m) 15'9" (4.80 m) 16'2" (4.93 m)
Weight with 250 lb. Trip 4,497 lbs. (2,040 kg.) 5,898 lbs. (2,676 kg.) 6,386 lbs. (2,897 kg.) 7,085 lbs. (3,215 kg.) 11,018 lbs. (4,999 kg.)
with 330 lb. Trip 4,876 lbs. (2.212 kg.) 6,340 lbs. (2,877 kg.) 6,905 lbs. (3,133 kg.) 7,654 lbs. (3,473 kg.) 11,745 lbs. (5,329 kg.)
Tires Main Frame two 9.5L x 14 - 6 ply four 9.5L x 14 - 6 ply four 9.5L x 14 - 6 ply four 9.5L x 14 - 6 ply four 9.5 x 15LT - 8 ply
Inner Wings - - - - four 7.60 x 15 - 4 ply
Outer Wings two 7.50 x 14 - 4 ply four 7.50 x 14 - 4 ply four 7.50 x 14 - 4 ply four 7.50 x 14 - 4 ply two 9.5L x 15 - 6 ply
Stabilizer Wheels two 7.50 x 14 - 4 ply two 7.50 x 14 - 4 ply two 7.50 x 14 - 4 ply two 7.50 x 14 - 4 ply two 7.60 x 15 - 4 ply
  optional optional optional optional
