600 Floating Hitch Chisel PlowPast Performers



Years In Service


1989 - 1991

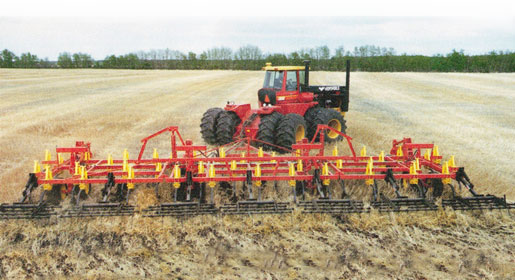

600 Floating Hitch Chisel Plow


The 600 Series was designed for the most extreme primary tillage conditions found anywhere in North America

The 600 Series was designed for the most extreme primary tillage conditions found anywhere in North America, the 600 Series had the depth control accuracy required for air seeding.

  • 28' to 52' working widths, 12" spacing
  • 4" four row tubular frame with corner gusseting to prevent fatiguing in the most extreme conditions
  • Replaceable Nylatron or case-hardened wear bushings at all critical wear points
  • Wheel-lift system comprised of rephasing Cessna Wyrlock cylinders connected in series

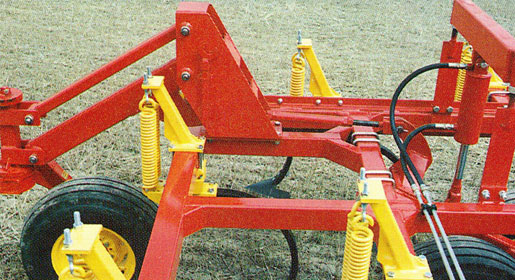

  • The floating hitch mechanism linkage.Frame - 4" tubular frame, 4-row construction, 8'6" frame depth with 4" x 3" tubular hitch
  • Hydraulic System
    • Wheel-lift system - rephasing Cessna Wyrlock cylinders connected in series
    • Wing-lift system, Sanborn cylinders
    • 5/8" and 3/8" lines with a zinc chromate finish
  • Precise Depth Control - A Double Line Lock/Pressure Limit Valve was exclusive to our slave cylinder hydraulic depth-control system. It improves cultivator depth control and overall system performance in many ways.
    • The hydraulic pressure to the system is kept low when the cultivator is lowered to the depth stop. This means the unit can be raised off the depth stop while still maintaining consistent depth from the wings to the center section.
    • This valve ensures no oil transfer between the cultivator depth control system and the tractor. The operator can now raise the unit off the depth stop to work at a shallower depth for long periods of time without having the cultivator creep deeper into the soil. Locking the return side of the slave system ensures that the wing sections maintain a precise depth setting.
    • This special valve also eliminates hydraulic creep on the depth control while transporting the cultivator, eliminating the need for the operator to adjust his wheel lift hydraulic system. The result is less danger of an operator accidentally dropping the unit to the ground at highway road speeds.
  • Scissor-Type Wing-Lift - Scissor-type wing-lift transport system.
  • Hitch pivot - Hitch pivot with front and back anti-tip protection.
Read More



600 FHCP Features & Options


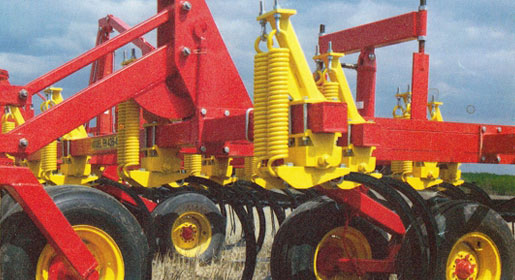

All 600 Series cultivators used a 600 lb. initial tension spring cushion shank assembly
  • 600 lb. initial tension spring cushion shank assembly.
  • Ductile steel trip casting with a single 1" pivot point and Nylatron wear bushing
  • 1¼"  x 2" tempered shanks

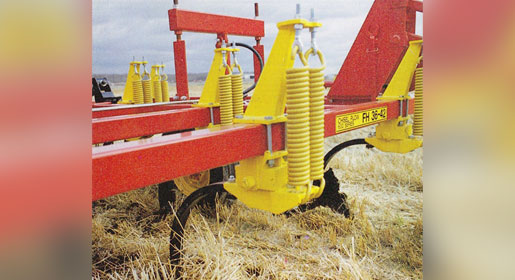

  • Two extension springs hold your spring cushion in tension at all timesWear Point - There was only one wear point on each spring cushion assembly. That wear point had a nylatron bushing, which required no greasing and was exceedingly resistant to wear. When wear inevitably occurs, simply replace the bushing and the 1" bolt and the spring cushion is completely reconditioned.
  • Extension Springs - Two extension springs hold your spring cushion with an initial tension of 600 lbs.
Read More



Specifications


Expand to access detailed product specifications.


600 Series FH 28-34 CP FH 36-42 CP FH 48-52 CP
Weights 10,511 lbs. at 34' 12,146 lbs. at 42' 17,418 lbs. at 52'
Sizes 28', 30', 32', 34' 36', 38', 40', 42' 48', 50', 52'
Max. Transport Dimensions Height - 14', Width - 21' Height - 17', Width - 23' Height - 16'6", Width -26'6"
Hydraulic Specifications Four depth control Cessna cylinders with a 41/4"  x 8" master Four depth control Cessna cylinders with a 41/4" x 8" master Six depth control Cessna cylinders with a 43/4"  x 8'' master
Axles Four walking-axles Four walking-axles Six walking-axles
Castor Wheels Four castor wheels Four castor wheels Six castor wheels
Tires
Main Frame Four 11 x 15LT - 8-ply Four 11 x 15LT - 8-ply Four 11 x 15LT - 8-ply
Wings Four 11L x 15 - 6-ply Four 11L x 15 - 6-ply Eight 11L x 15 - 6-ply
Castor Wheels Four 11L x 15 - 6-ply Four 11L x 15 - 6-ply Six 11L x 15 - 6-ply
General Specifications
Frame 4" tubular frame construction
4" x 3" tubular hitch
4-row frame construction
8'6" frame depth
Shank Spacing 12" overall
36" minimum row shank spacing
48" minimum on the front two rows
Spring Cushion Ductile steel casting with a single 1" pivot point and Nylatron wear bushing
Double extension spring with an initial tension of 600 lbs.
1/4"  x 2" tempered shank
33" sweep-to-frame clearance
11" obstacle clearance
Standard sweep used is a 1/4" x 16" Bourgault PW-1650
Hydraulic System Wheel-lift system - rephasing Cessna Wyrlock cylinders connected in series
Wing-lift system - Sanborn cylinders
5/8" and 3/8" lines with a zinc chromate finish
New double line lock, pressure limit valve prevents outside interference with the rephasing hydraulic system
Axles & Wheels Walking axles with greaseable sealed bearings in the pivot hub
Front castoring wheels which have a large pivot shaft and Nylatron wear bushings
5,000 lb. hubs and spindles for the wheel assemblies throughout
Read More
