9800 Rigid Hitch Chisel Plow

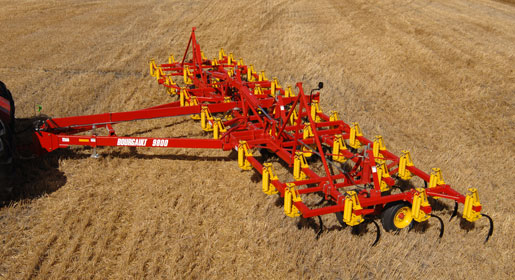

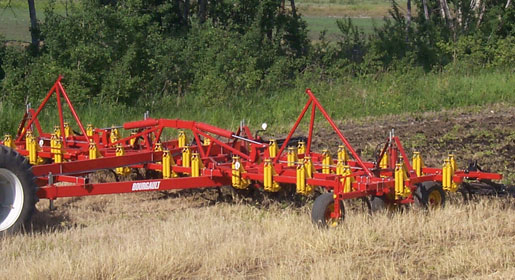

The Bourgault 9800 Rigid Hitch Chisel Plow

The Bourgault 9800 Rigid Hitch Chisel Plow stands up to the claim of being the strongest chisel plow in the agricultural industry.

  • The rigid hitch is designed for power transfer and operating stability.
  • Strong 4 row frame design with available shank spacings of 8" (203mm), 10” (254mm), 12” (305mm), or 15” (381mm).
  • The narrow center frame and over-center folding give the 9800 a narrow transport width.
  • Single Point Depth Control
  • Stabilizer Wheel Option

The extremely strong frame design of the 9800Extremely Strong Frame Construction

  • Hitch with Attitude
    • The center beam is designed to transfer fertilizer / air seeder cart load directly to the tractor.
    • Two 8" (203mm) hitch side beams are fixed to the outside points of the mainframe to effectively pull the 9800.
  • Strongest Chisel Plow Frame - The extremely strong frame design of the 9800 features 4”x 4” x ¼” (102mm x 102mm x 6mm) wall steel tubing members welded between 4”x 3” x ¼” (12mm x 76mm x 6mm) wall front-to-back members.
  • Handle Maximum Residue - The 9800 RHCP offers shank spacings of 8” (203mm), 10” (254mm), 12” (305mm), or 15” (381mm).  Each shank arrangement has been optimized to provide excellent residue flow through the chisel plow. The four-row design allows more distance between the sweeps and the wheels, which reduces plugging when operating in high residue conditions. The 9800 RHCP has two general operational positions: an 18” (.45m) regular lift range setting and a 22” (.56m) high lift range setting.
  • Single Point Depth Control - When time is of the essence, the patented Quick Shift Depth Control makes single point depth control effective and easy. Simply slide the guide along the scale to the appropriate depth and lock.

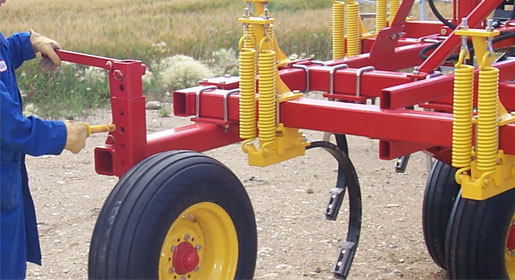

  • Stabilizer Wheel Option - Optional stabilizer wheels will keep the front of the 9800’s wings level and provide even penetration of the ground engagement tools. The adjustment lever makes changing height of the stabilizer wheel simple and easy.
  • Convenient Tongue Adjustment - You can achieve proper tongue height regardless of draw bar height or operating depth with the hitch height adjustment mount. The hitch height adjustment mount can be flipped for more ground clearance when tilling deep. Quick hitch tongue adjustment is done using lynch pins that retain the large 1½” (38mm) hitch tongue pins.
  • Side-to-Side Adjustment - Height adjustments are located on every wheel cylinder. The top cylinder mount has two positions:
    • Regular Lift Setting provides an 18” (46cm) lift range requiring only 1800 p.s.i oil pressure.
    • High Pressure Setting provides a generous 22” (56cm) lift range & requires 2250 p.s.i. (15,500 kPa) oil pressure.
  • Dependable Hydraulics - Bourgault tillage units are designed with a master - slave system to control the operating depth (either single or dual-series). The hydraulic fluid for the depth control is filtered going into the master cylinder when the unit is lifted.
Read More



Ultimate Tillage System


The Bourgault Spring Trip Assembly is designed for a wide operational range

The Bourgault 9800 RHCP offers the features and options that will make it the number one tillage unit on your operation.

  • Legendary Bourgault Spring Trip Assembly
  • Titan Quik-Detach Arms
  • Mounted Harrows & Mounted Packers

Mount narrow knives for a smooth high quality seedbed, or sweeps for cultivation and weed kill.

  • Bourgault Spring Trip Assembly

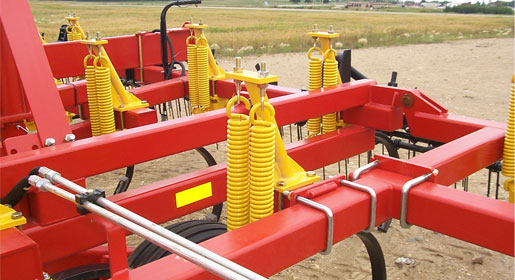

    • The 330 lb (150 kg) spring trip assembly incorporates a 1" (25 mm) pivot protected with a greaseless nylon bushing and a 1” x 2” (25 x 50 mm) shank.
    • The 450 lb HD (204 kg) spring trip assembly  incorporates a 1" (25 mm) pivot protected with a greaseless nylon bushing and a 1¼" x 2"(32 x 50 mm) to 1” x 2” (25 x 50 mm) tapered shank, which is 55% stronger than a 1" (25 mm) shank.
    • The 500 lb (225 kg) and 600 lb (272 kg) double-spring trip assemblies are available on the 9400, 9500 and 9800 Chisel Plows.  The 500 & 600 lb trips are equipped with a 1¼" x 2" (32 x 51 mm) shank and a 1" (25 mm) pivot protected with a greaseless nylon bushing.
  • Titan Quik-Detach Arms - Designed for quick and easy attachment or interchange of mounted harrows and packers to accomplish various operations with the same unit. Easy adjustment of up to 550 lbs (250 kg) of down force per arm.
  • Mounted Harrows & Mounted Packers - The heavy compression spring assures you of all the down force required and provides for an obstacle clearance of 22" (.56 m). Four bar harrows feature 7/16" x 16" (11mm x 406mm) long double tines on 2" (51mm) overall spacing. Three bar Mounted Heavy Harrows are the answer for heavy residue and rough field conditions. Tines are ½" x 20" (13mm x (508mm) long double tines on 8" (203mm) overall spacing. Bourgault Mounted Packers help provide excellent seedbed results when using a tillage system for seeding.
  • Side Draft Eliminators - Install Side Draft Eliminators to prevent skewing when tilling on side slopes. Not required when Mid Row Banders are installed.
  • Spring Action Mud Scrapers - As a fixed or spring loaded style - both types are adjustable.
  • Bourgault Trailing Hitch - The optional Heavy Duty Rear Tow Hitch is designed to pull even the largest air seeder tanks and liquid carts on the market today.
Read More



Specifications




Expand to access detailed product specifications.


Base Unit 9800-28 9800-36
No. of Sections 3 3 3 3 3 3 3 3
No. of Rows 4 4 4 4 4 4 4 4
Working Widths:
8" Spacing 28' 0" 29' 3" 30' 8" 32' 0" 36' 0" 37' 3" 38' 8" 40' 0"
10" Spacing 28' 3" 30' 0" 31' 8" 33' 3" 35' 6" 37' 6" 39' 0" 41' 0"
12" Spacing 28' 0" 30' 0" 32' 0" 34' 0" 36' 0" 38' 0" 40' 0" 42' 0"
15" Spacing 28' 0" 30' 6" 33' 0"   35' 6" 38' 0" 40' 6"
Frame Widths:
Main Frame 13' 6" 13' 6"
Wing 7' 6" 11' 4"
Transport Width 18' 10" 18' 10"
Transport Height  14' 2" @ 34' 18' 3" @ 42'
High Lift Range: 15' 1" @ 34' 19' 2" @ 42'
Weights: (Base unit with 500 lb double spring trips.)
12" Spacing 10,480 lb 11,080 lb
Tires:
Main Frame 11Lx15 FI (4) 11Lx15 FI (4)
Wing - Single Wheel 12.5x15 (2) 12.5x15 (2)
Wing - Double Wheel 9.5x15 9.5x15
General Specifications (All Sizes):
Wheel System, Main Frame Offset walking tandem axles.
Wings Standard: High floatation single axle; Optional: Offset walking tandem axles.
Wheel Standards Main Frame & Wing - Triple-lip seals on 5000 lb hubs
Packer Options Optional (Not available on 15" spacing)
Mud Scrapers Optional fixed or spring-loaded style
Openers Quick-Change and Speed-Loc adapters are optional. Refer to Bourgault Tillage Tools for optional openers.
Air Kits Refer to Bourgault Dealer for availability
Blockage Monitors Impact Blockage Monitors available for secondary or tertiary lines.
Tine Mounted Harrows Optional 3 or 4 bar harrows.
Trip Assy 230 lb 330 lb 450 lb    500 lb   600 lb
230lb trip 1"x2" shank, 27Ѕ" ground clearance, 10" obstacle clearance, 7" max working depth
25mmx51mm shank, .7m ground clearance, .25m obstacle clearance,178mm max. working depth
330lb trip 1"x2" shank, 27Ѕ" ground clearance, 11" obstacle clearance, 7" max working depth
25mmx51mm shank, .7m ground clearance, .28m obstacle clearance,178mm max. working depth
450lb trip 1"x2" shank, 27Ѕ" ground clearance, 11" obstacle clearance, 7" max working depth
25mmx51mm shank, .7m ground clearance, .28m obstacle clearance,178mm max. working depth
500lb trip 1"x2" shank, 30" ground clearance, 12" obstacle clearance, 10" max working depth
25mmx51mm shank, .76m ground clearance, .3m obstacle clearance, 254mm max. working depth
600lb trip 1-1/4"x2" shank, 32" ground clearance, 13" obstacle clearance, 12" max working depth
32mmx51mm shank, .813m ground clearance, .330m obstacle clearance, 305mm max. working depth
Row to Row Spacing 31" min row centres
Row Shank Spacing 8" -> 24" min, 10" & 10.125" -> 30" min, 12" -> 36" min, 15" -> 45" min
203 mm -> 0.61 m min, 254 mm & 257 mm -> 0.76 m min, 305 mm -> 0.91 m min, 381 mm -> 1.14 m min
Frame Depth 110½"
Depth Control Hydraulic series rephasing cylinders, "Quick-Shift" depth control, Variable Depth/Precision Control Valve
Wing Lift Solid Truss system with hydraulics connected in parallel
Safety Chain & Lights Standard
Side Draft Eliminators Optional
Frame Members 4" x 4" x .250" frame members with 4" x 3" x .250" cross members
102 mm x 102 mm x 6 mm frame members with 102 mm x 76 mm x 6 mm cross members
Read More
