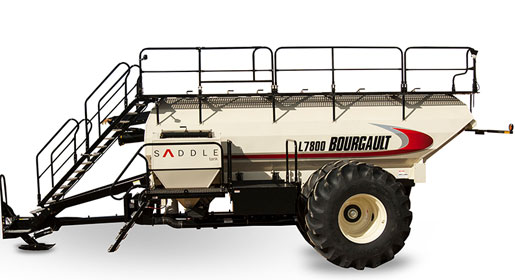

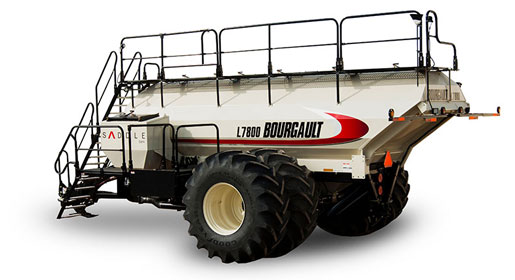

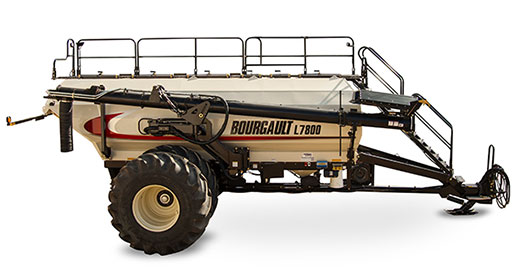

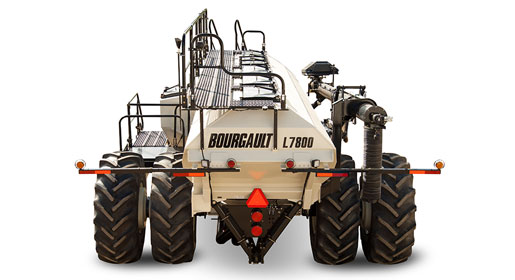

Model L7800 Air Cart |
|
Volume, Total |
800 bu
(840 with Saddle Tank Option) |
#1 Tank Volume |
210 bu |
#2 Tank Volume |
50 bu |
#3 Tank Volume |
120 bu |
#4a FLEX bin (non-metering) |
75 bu |
#4b Tank Volume |
345 bu |
#5 Tank Volume (optional) |
40 bu |
Height, Transport |
12' 11" |
Height, Transport (tracks) |
12' 5" |
Height, Field (top of raised handrail
with tanks full) |
15' 10" |
Height, Field (top of raised handrail
with tanks full) |
15' 5" |
Overall Width (with std duals on rear) |
20'3" |
Overall Width (with tracks) |
15' 4" |
Weight, (std duals on rear) |
28,500 lb |
|
|
Load/Unload Auger |
12" (30 cm) L/U Auger |
Running Gear |
850/80 R38 duals rear standard,
18 psi
Go to the 7000 Series Track Systems section |
Monitor/Controller Options |
Choose between the:
X35 Apollo System option
ISO Apollo System option
|
Metering Drive |
Hydraulic Drive controlled by X35 system |
Front Hitch |
Category 5 |
Hitch Weight |
Empty - 3,800 lb
Max - 12,000 lb |
Hyd. Fan Requirements |
Refer to Air Seeder Fan specification page |
Special Features & Options
Drill Ready Package Options
The Leading 7800 may be ordered with additional packages for use with air kit blockage kits, or Auto Section Control.
- Auto Section Control plus Blockage Ready Kit - this package provides a harness that runs from the air seeder ECU to the air seeder rear tow hitch, that connects to the blockage harness from the drill. It also includes the hydraulic hose required to run the ASC manifold valves located on the drill.
- Blockage Ready Kit - this package provides a harness that runs from the air seeder ECU to the air seeder rear tow hitch, that connects to the blockage harness from the drill.
