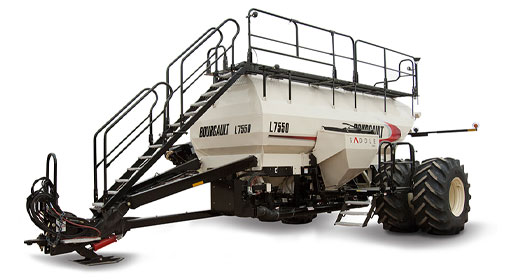

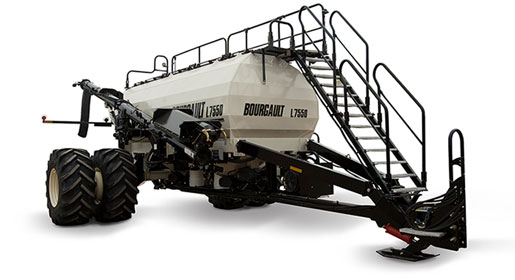

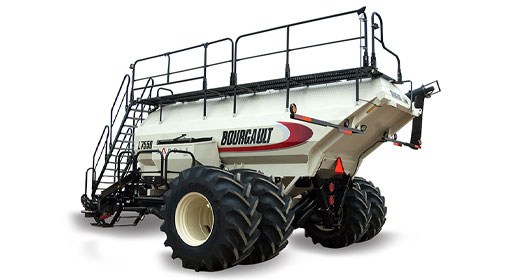

Model L7550 Air Cart |
|
|
Volume, Total |
550 bu
(570 with Saddle Tank Option) |
19,380 l
(20,085 l with Saddle Tank Option) |
#1 Tank Volume |
85 bu |
2995 l |
#2 Tank Volume |
175 bu |
6,165 l |
#3 Tank Volume |
55 bu |
1,940 l |
#4 Tank Volume |
235 bu |
8,280 l |
#5 Tank Volume
(optional Saddle Tank) |
20 bu |
708 l |
Height, Transport |
12'4" |
3.8 m |
Height, Field
(top of raised handrail with tanks full) |
15' |
4.6 m |
Overall Width
(with std duals on rear) |
20'3" |
6.2 m |
Weight, (std duals on rear) |
19,500 lb |
8,845 kg |
Load/Unload Auger |
10" (25 cm) L/U Auger |
Tires |
800/65 R32 duals rear standard,
16 psi (110 kPa) |
Hyd. Fan Requirements |
Air Seeder Fan specification page |
Monitor/Controller Options |
- X35 Apollo System
- ISO Apollo System
- Older models may be equipped with Topcon X35 Apollo or X35 IB1 controller system |
Metering Drive |
Hydraulic Drive controlled by X30 SRC |

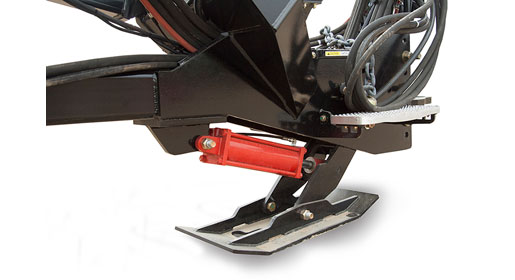

Front Hitch |
Category 4 |
Hitch Weight |
9,100 lb Loaded (4,128 kg) |
Special Features & Options
Drill Ready Package Options
The Leading 7550 may be ordered with additional packages for use with air kit blockage kits, or Auto Section Control.
- Auto Section Control plus Blockage Ready Kit - this package provides a harness that runs from the air seeder ECU to the air seeder rear tow hitch, that connects to the blockage harness from the drill. It also includes the hydraulic hose required to run the ASC manifold valves located on the drill.
- Blockage Ready Kit - this package provides a harness that runs from the air seeder ECU to the air seeder rear tow hitch, that connects to the blockage harness from the drill.
