Model L6550ST LeadingPast Performers



Years In Service


2008 - 2020

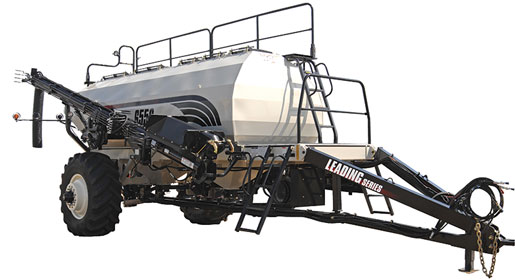

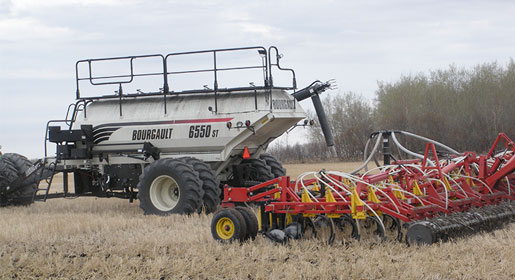

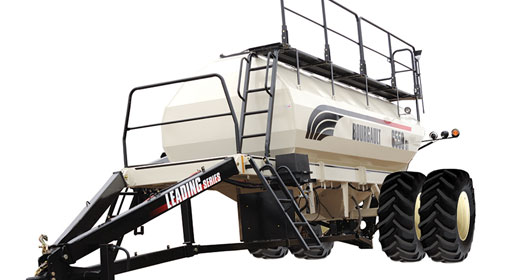

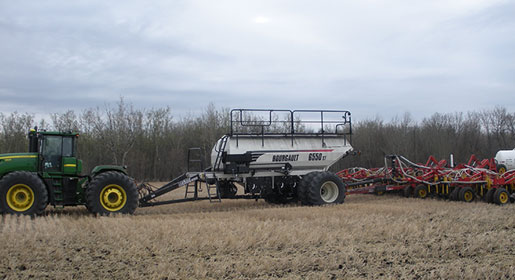

Model L6550ST Leading


The L6550ST Air Seeder provides a huge 550 bushel capacity, and the flexibility to use it all!

  • Ground pressure does not exceed 18 psi (124 kPa) even when fully loaded*.
  • Approximately 6,500 lb (2,950 kg) hitch weight fully loaded*.
  • Class A Product Distribution System
  • PDM Metering & Transmission Drive
  • Cab Rate Adjust
  • Tank Mounted Camera System
  • Product Lift System

  • Air Cart Configuration - The Leading Air Seeder configuration is balanced and tested to ensure the ground pressure does not exceed *18 psi (124 kPa) when fully loaded.
  • Leading Air Cart Hitch - The superior design and balance allows only approximately *6,500 lb (2,950 kg) hitch weight fully loaded. Tractors may require a drawbar support kit.
  • Product Distribution System - The Bourgault Class A Product Distribution System includes the PDM Plus Metering Auger, Straight-Thru Primary Lines, and an Air Seeder Kit that is proven to be even, accurate, and gentle on all products.
  • Positive Displacement Metering
    • PDM Pro Metering - A precise, finely pitched high-density poly metering auger draws product from a large, flow-through sump, through a machined metering orifice.  The barrel of the auger housing is lined with a UMHW liner. (later models)
    • PDM Plus Metering - The high density poly metering auger is matched with a machined steel orifice to provide accurate and consistent product metering. (older models)
  • Transmission Metering Drive - The metering system transmits power from the drive wheel through a main clutch & drive shaft.  Separate gearboxes are stationed along the drive shaft, each protected with it's own torque limiting clutch.
  • Good Floatation -  Various Tire Options ensure good floatation & minimal compaction.
  • Cab Rate Adjust - The Cab Rate Adjust option allows you to adjust the metering rate of each individual metering auger on-the-go from the tractor cab. This feature is very convenient for making slight adjustments for product rates.
  • Tank Mounted Camera System - Bourgault offers a leading stand-alone monitoring system that allows you to watch what is happening in each compartment and behind the air seeder.
  • Product Lift System - Bourgault is the first in the industry to provide the Product Lift System for operator safety and convenience.

*Based on 55lb/ft3 (880 kg/m3) product.

Read More



Capacity & Flexibility


  • Power Hydraulic Calibration System
  • Model 591 Air Seeder Monitor
  • Optical Blockage Sensors
  • Optional X35 Seed Rate Controller
  • Standard 10" Load/Unload Auger or Deluxe 10" Load/Unload Auger.
  • Working Lights

Exceptional Value & Rugged Dependability

  • Power Hydraulic Calibration - The Hydraulic Calibration feature will enable you to capture a large sample for a more accurate rate calculation, especially with low-rate products such as canola.
  • Model 591 Air Seeder Monitor - The 591 Air Seeder Monitor provides instantaneous feedback on air seeder operations including fan speed, application rate, bin levels, area seeded, & ground speed.
  • Optical Blockage Sensors -  were offered as single run or full run packages.
  • Optional X35 Apollo Seeder Controller
    • The X35 Apollo System with the Xtend feature is the most advanced control and monitoring system for your seeding system.
    • The display features a heads-up dashboard, customizable to view up to 8 air seeder functions with 3 viewable items per function.
    • Xtend feature consists of a Wi-Fi dongle installed to the back of the X35.  This generates a local wireless hotspot that a smart phone or tablet can be connected to, with the appropriate app.
    • The Topcon X30 Apollo, X30 IB1, and X20 were available options on older models.
  • Load/Unload Auger
    • The Standard 10" Auger, Load/Unload Rate: approx. 70 bu./min based on dry barley @ 48 lb/bu.
    • The Deluxe 10" Auger, Load/Unload Rate: approx. 85 bu./min. (2995 l/min) based on dry barley.
  • Working Lights - Are located around the metering transmissions, the sides of the tank, the load/unload auger spout, cat walk, and on the rear of the air seeder to enhance productivity and safety during night time operation.
Read More



Specifications


Expand to access detailed product specifications.


Model L6550ST
Total Tank Volume 550 bu 19380 l
#1 Tank Volume 170 bu 5990 l
#2 Tank Volume* 15 bu 530 l
#3 Tank Volume* 75 bu 2640 l
#4 Tank Volume 290 bu 10220 l
Height - Transport (Top of L/U Agr/Cnvr) 12' 5" 3.8 m
Height - Field (Top of Hand Rail) 15' 0" 4.6 m
Overall Width (Single Tires) 13' 9" 4.2 m
Front Axle to Rear Axle (TBHD Only) 15' 6" 4.7 m
Hitch Pin to L/U Auger/Conveyor -
Tow Behind Units
32' 11" 10 m
Hitch Pin to L/U Auger/Conveyor -
Leading Units
35' 9" 10.9 m
Hitch Pin to Rear Tow Hitch Pin -
Tow Behind Units
32' 7" 9.9 m
Hitch Pin to Rear Tow Hitch Pin -
Leading Units
30' 2" 9.2 m
Front Tire Spacings
(TBHD Only)
5' 0" 1.5 m
Rear Tire Spacings, Single 10' 10" 3.3 m
Rear Tire Spacings, Inside Dual 10' 0" 3 m
Rear Tire Spacings, Outside Dual 15' 0" 4.6 m
Weight, Empty (Single Tires) *** 15500 lb 7031 kg
Loaded Hitch Weight, Leading Units 8600 lb 3900 kg
Load/Unloading Augers/Conveyor 10" (25cm) Deluxe
L/U Auger/Conveyor Load Rate (max.) 85 bu/min
2995 l/min

Hyd Fan Requirements Refer to Air Seeder Fan specification page

*** All Units weighed with a L/U Auger
