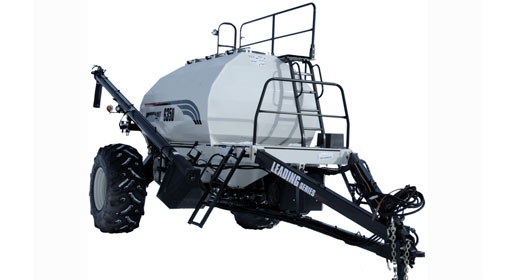

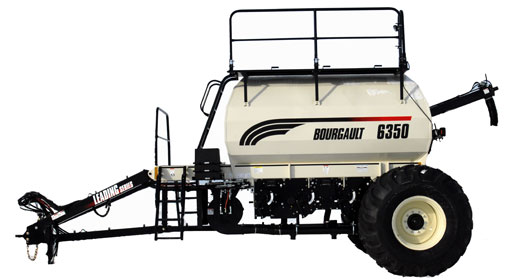

- Air Cart Configuration - The Leading Air Seeder configuration is balanced and tested to ensure the ground pressure does not exceed 18 psi (124 kPa) when fully loaded*.

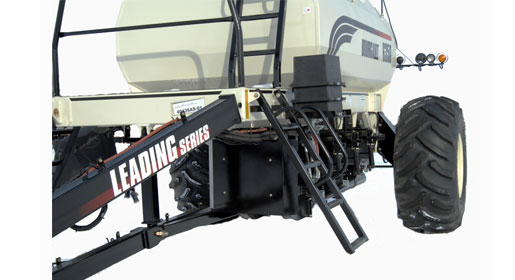

- Leading Air Cart Hitch - The superior design and balance allows only approximately 6,500 lb (2,950 kg) hitch weight fully loaded*. Tractors may require a drawbar support kit.
- Product Distribution System - The Bourgault Class A Product Distribution System includes the PDM Plus Metering Auger, Straight-Thru Primary Lines, and an Air Seeder Kit that is proven to be even, accurate, and gentle on all products.
- Positive Displacement Metering
- PDM Pro Metering - A precise, finely pitched high-density poly metering auger draws product from a large, flow-through sump, through a machined metering orifice. The barrel of the auger housing is lined with a UMHW liner. (later models)
- PDM Plus Metering - The high density poly metering auger is matched with a machined steel orifice to provide accurate and consistent product metering (older models)
- Transmission Metering Drive - The metering system transmits power from the drive wheel through a main clutch & drive shaft. Separate gearboxes are stationed along the drive shaft, each protected with it's own torque limiting clutch.
- Good Floatation - Various Tire Options ensure good floatation & minimal compaction.
- Cab Rate Adjust - The Cab Rate Adjust option allows you to adjust the metering rate of each individual metering auger on-the-go from the tractor cab. This feature is very convenient for making slight adjustments for product rates.
- Tank Mounted Camera System - Bourgault offers a leading stand-alone monitoring system that allows you to watch what is happening in each compartment and behind the air seeder.
- Product Lift System - Bourgault is the first in the industry to provide the Product Lift System for operator safety and convenience.
*Based on 55lb/ft3 (880 kg/m3) product.
