Model 7950Past Performers



Years In Service


2012 - 2020

Impressive Capacity & Ingenuity


Model 7950

The popular Model 7950 air seeder provided an impressive 950bu capacity, expanded to 990bu when the Saddle Tank option was included.  The 7950 offered many design features and options that made it the most versatile commodity cart of it's time.

  • EvenStream Primary™ Distribution
  • Full Inter-tank Flexibility
  • Optional 40bu Saddle Tank
  • Bulk Boom™ Option with Platform
  • Product Lift System
  • Good Floatation and Brakes
  • Load/Unload Conveyor Option

Bourgault KNEX™ Inter-Tank Flexibility
    Full Inter-tank Flexibility -  Four main tanks and FLEX bin totaling 950 bushels (33,477 litres) feature full inter-tank flexibility. The FLEX bin does not have its own meter, but can be diverted into tank 1, or tank 2.
  • Optional Saddle Tank - The optional 40 Bu Saddle Tank & Pallet Storage Platform mounted on the left side of the 7950 is designed for the seeding and storage of bagged product.
  • Product Lift System - Bourgault offers the Product Lift System for convenient transport of seed bags to the tank top (not available with the Saddle Tank).
  • Dual Auto Section Control - The Bourgault Dual Auto Section Control (Dual ASC) system is designed to work with the Topcon X35 Apollo system to sense when a drill is about to overlap a seeded section of the field.
  • BulkBoom Option - The BulkBoom is designed to lift up to 2400 lb from the ground or truck box, up to the Saddle Tank or compartment 3 on the tank top.
  • Good Floatation -  The 850/80R38 radial lug tires require a low 15 psi (103 kPa) on front singles and 12 psi (83 kPa) on rear duals inflation pressure, even when operating fully loaded. The 90" (228.6 cm) tire diameter minimizes rolling resistance which is important for a tank this size.  The 7950 is also equipped with brakes to help ensure safe transportation.
  • Wide Belt Conveyor -  The 7950 is available with either a 10" diameter Conveyor with a 15" belt, or a 12" diameter Deluxe Auger.
Read More



Model 7950

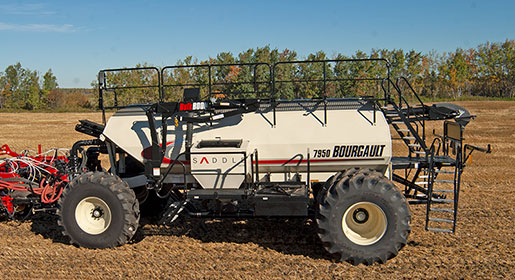

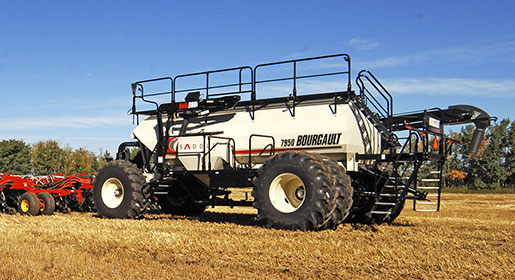

Bourgault 7950 Air Seeder
  • Topcon X35 or ISO Apollo Controller Systems
  • Staircase Access
  • Stand-alone Camera System
  • PDM Pro™ Hydraulic Drive Metering System
  • Class A Product Distribution System
  • Dual Auto Section Control
  • Standard Load Cells
Bourgault Dual Auto Section Control
  • Dual Auto Section Control (Dual ASC) - Designed to work with the Topcon X35 Apollo system, seed and fertilizer are controlled separately to avoid overlap in a seeded section of the field.
  • Staircase AccessStaircase access, from either side of the tank, featuring grated cast steps.
  • Stand-Alone Camera System - The camera system features a 7” (18 cm) LCD screen, and a separate camera in each compartment to monitor product levels. A rear view camera allows you to watch for approaching vehicles when transporting from field to field.
  • Topcon Apollo Seeder Controllers
    • The X35 Apollo System provides unprecedented control and monitoring with a large full color console.
    • The ISO Apollo™ System  ties to the Virtual Terminal of equipped tractors for basic monitoring and control features.
    • Older models may be equipped with Topcon X35 Apollo or X35 IB1 controller systems.
  • EvenStream Primary™
    • Enhances product distribution, even at high rates.
    • Standard on 2019 models, this feature is retrofit-able on past models.
  • Product Distribution System - The Bourgault Class A Product Distribution System is proven to be even, accurate and gentle on all seed and products.  This system is comprised of:
    • A selection of various Air Seeder Fan options;
    • PDM Pro Metering Augers;
    • EvenStream Primary Lines;
    • an Air Seeder Kit that is gentle on seed, even pulses.

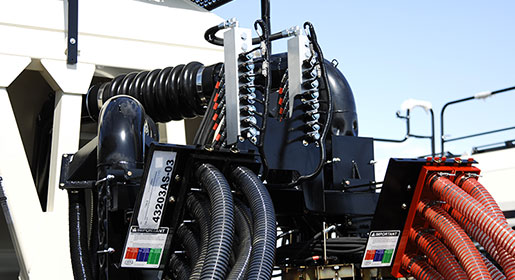

  • Hydraulic Drive Metering System - The hydraulic drive metering system is capable of powering up to 5 metering augers with little draw on overall hydraulic demand.
  • Load Cells
    • Standard load cells reduce your filling times by eliminating overfilling when only partial fills are needed.
    • The optional Saddle Tank featured dedicated load cells that provide actual measured weight during operation (later models).
Read More



Specifications


Expand to access detailed product specifications.


Model 7950 Air Cart
Total Tank Volume 950 bu
(990 w/ Saddle Tank Option)
#1 Tank Volume 410 bu
FLEX Bin Volume 90 bu
#2 Tank Volume 120 bu
#3 Tank Volume 55 bu
#4 Tank Volume 275 bu
#5 Tank Volume (optional) 40 bu
Height, Transport 13' 2"
Height, Transport (tracks) 12' 11"
Height, Field (handrail up, tanks full) 15' 11"
Height, Field (tracks, handrail up, tanks full) 15' 8"
Overall Width (std rear duals) 21' 1"
Overall Width (tracks) 15' 4"
Overall Length (hitch pin to rear) 42' 10"
Weight, (std rear duals) 33,500 lb
Load/Unload Auger 12" L/U Auger at 145 bu/minute **
L/U Conveyor with 10" tube & 15"belt at 110 bu/minute **
Running Gear 850/80R38 duals rear 12 psi,
850/80R38 singles front 15 psi
Tracks Front Track Length - 67.4”
Rear Track Length - 103.5”, Track Width - 36”
Brakes Standard, Hydraulic (wheeled units only)
Monitor/Controller Options X35 Apollo system (X30 Apollo & X30 IB1 on older models)
ISO Apollo system
Metering Drive Hydraulic Drive controlled by X30 Apollo system
UHMW or Steel Flight Metering Augers Available
Single Flight, Double Flight, Low Output, or High Output Available
Prime feature standard
Camera Stand-alone camera system with 7" monitor standard.
One camera located in each tank compartment.
One camera at rear of air seeder to monitor traffic during transport.
Read More
