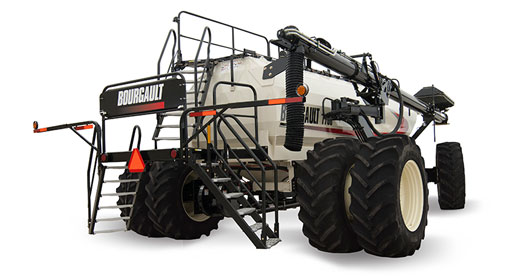

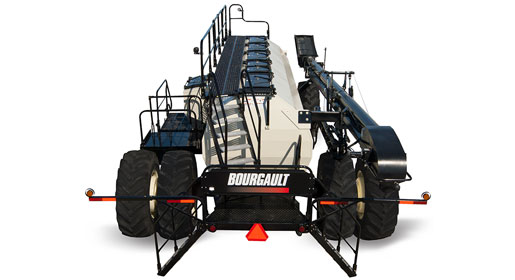

Model 7700 Air Cart |
|
|
Volume, Total |
700 bu

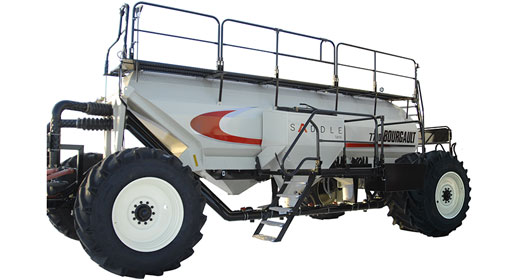

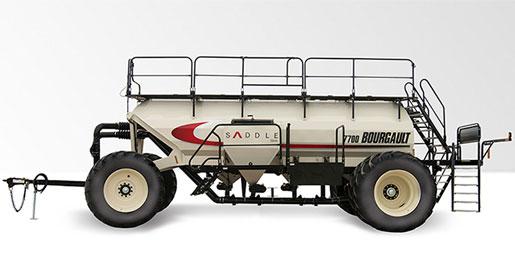

(740 with Saddle Tank Option) |
24,667 l
(26,077 l w/ Saddle Tank Option) |
#1 Tank Volume |
295 bu |
10,360 l |
FLEX Bin Volume (non-metering) |
60 bu |
2,114 l |
#2 Tank Volume |
105 bu |
3,700 l |
#3 Tank Volume |
30 bu |
1,057 l |
#4 Tank Volume |
210 bu |
7,400 l |
#5 Tank Volume (optional) |
40 bu |
1,410 l |
Height, Transport |
12' 4" |
3.7 m |
Height, Transport (tracks) |
12' 1" |
3.6 m |
Height, Field (top of raised handrail,
tanks full) |
15' |
4.6 m |
Height, Field (tracks, top of raised
handrail, tanks full) |
14' 9" |
4.5 m |
Overall Width (with std
singles on rear) |
13' 11" |
4.3 m |
Overall Width (with tracks) |
15' 4" |
4.8 m |
Overall Length (hitch pin to
farthest rear point) |
44' 9" |
13.6 m |
Weight, (Std duals on rear) |
24,500 lb |
11,113 kg |
Load/Unload Auger |
12" (30 cm) L/U Auger at 145 bu/minute**
L/U Conveyor with 10" (25 cm) tube and 15" (38 cm) belt at 110 bu/minute** |
Running Gear |
850/80R38 singles rear, 710/70R42 singles front
17 psi (117.2 kPa) [710/70R42 duals optional on rear - 12 psi (83 kPa)]
Optional Tracks were available for this model. |
Brakes |
Optional, Hydraulic (Not available on tracks) |
Monitor/Controller Options |
Choose between the:
- *X35 Apollo system (X30 Apollo or X30 IB1 on older models)
- ISO Apollo system option
|
Metering Drive |
- Hydraulic Drive controlled by X30 Apollo system
- UHMW or Steel Flight Metering Augers Available
- Single Flight, Double Flight, Low Output, or High Output Available (depending on tank compartment)
- Prime feature standard
|
Camera |
- Stand-alone camera system with 7" (178 mm) monitor standard.
- One camera located in each tank compartment.
- One camera at rear of air seeder to monitor traffic during transport.
|
Hyd. Fan Requirements |
Refer to Air Seeder Fan specification page |
Weigh Scale |
Optional |
** Loading rates based on dry barley.
*X30 Apollo System and ISO Apollo Systems are available on all 2015 models.
