Model 7550Past Performers



Years In Service


2014 - 2020

Model 7550


Model 7550 Air Cart

The Model 7550 air seeder provides the important features of the 7000 Series seeders in a popular tank size.

  • Dual Auto Section Control (Dual ASC)
  • KNEX Inter-tank Flexibility
  • Hydraulic Drive Metering System
  • Product Distribution System
  • Optional Saddle Tank
  • Product Lift System
  • Good Floatation

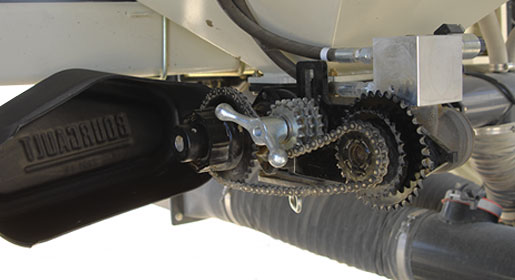

Hydraulic Metering Drive System

Delivering Huge Capacity With Minimal Compaction

  • Dual Auto Section Control (Dual ASC) - The Bourgault Dual Auto Section Control (Dual ASC) system is designed to work with the Topcon X35 Apollo system to sense when a drill is about to overlap a seeded section of the field.
  • KNEX Inter-tank Flexibility - The Model 7550 provides four main compartments totalling 550 bushels (19,400 litres) and the KNEX full inter-tank flexibility system that Bourgault air seeders are renowned for.
  • Hydraulic Drive Metering System - The Model 7550 incorporates the hydraulic drive metering system capable of driving up to 5 metering augers.
  • EvenStream Primary™
    • Enhances product distribution, even at high rates.
    • Standard on 2019 models, this feature is retrofit-able on past models.
  • Product Distribution System - The Bourgault Product Distribution System is a Class A distribution system proven to be even, accurate, and gentle on all products. The components include:
    • the Air Seeder Fan(s);
    • the PDM Pro Metering Auger;
    • Straight-Thru Primary Lines;
    • and Air Seeder Kit.

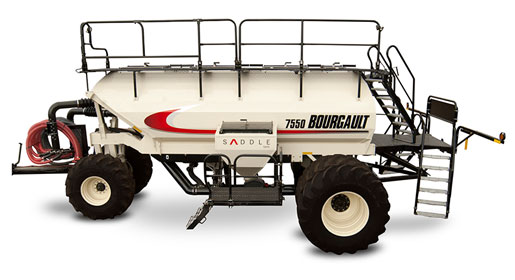

  • Optional Saddle Tank - The optional 20 Bu Saddle Tank mounted on the left side is designed for the seeding and storage of bagged product and raises the total tank capacity to 570 bushels (20,090 litres).
  • Product Lift System - Bourgault offers the Product Lift System for convenient transport of seed bags to the tank top (not available with the Saddle Tank).  (The BulkBoom product transfer system is not available on the 7550 or L7550 air seeders.)
  • Good Floatation - Standard, large 900/60R32 tires (rear singles) requires 24 psi (165 kPa) inflation pressure, even when operating fully loaded. Optional 650/75R34 rear duals with a lower 16 psi (110 kPa) pressure requirement are available. The standard 28Lx26 front tires are set to 17 psi (117 kPa).  Compaction is minimal allowing farmers to continue to fill the compartments even in wetter seeding conditions.
Read More



MODEL 7550

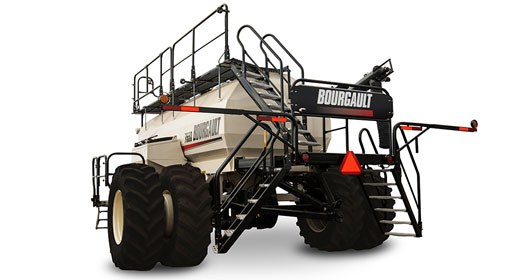

Staircase Access to Wide Catwalk
  • 10" Deluxe Load/Unload Auger
  • Staircase Access
  • Two Different Topcon Apollo Systems
  • Stand-alone Camera System
  • The PDM Pro
  • Optional Load Cells

Standard Camera Provides Visibility in each Compartment and Behind Air Seeder

Size & Flexibility For Your Operation

  • 10" Deluxe Load/Unload Auger - The Model 7550 is equipped with the 10" Deluxe Load/Unload Auger that will greatly reduce your fill times.
  • Staircase Access - Staircase access, from either side of the tank, features grated cast steps.
  • Topcon Apollo Seeder Controllers
    • The X35 Apollo System provides unprecedented control and monitoring with a large full color console.
    • The ISO Apollo™ System  ties to the Virtual Terminal of equipped tractors for basic monitoring and control features.
    • Older models may be equipped with Topcon X35 Apollo or X35 IB1 controller systems.

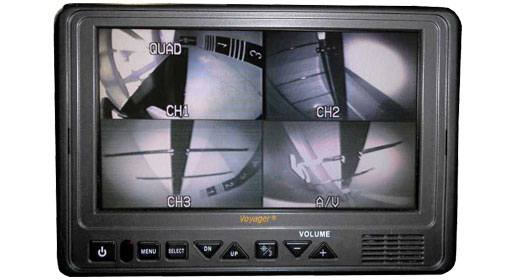

  • Stand-alone Camera System - The Model 7550 comes standard with a stand-alone camera system and a 7” (18 cm) LCD screen. Each tank compartment is equipped with a separate camera to monitor product levels and a rear view camera allows you to watch for approaching vehicles when transporting from field to field.
  • The PDM Pro - The PDM Pro provides a high degree of metering accuracy and gentle seed handling while minimizing the issue of product sticking when dealing with treated products.
  • Optional Load Cells - Optional load cells reduce your filling times by eliminating overfilling when only partial fills are needed.
Read More



Specifications


Expand to access detailed product specifications.


Model 7550 Air Cart
Volume, Total 550 bu 19380 l
#1 Tank Volume 85 bu 2995  l
#2 Tank Volume 235 bu 8280 l
#3 Tank Volume 55 bu 1940  l
#4 Tank Volume 175 bu 6165 l
Saddle Tank (Optional) 20 bu 705 l
Height - Transport
(Top of L/U Auger)
12' 4" 3.7 m
Height - Field
(Top of Hand Rail)
15' 0" 4.6 m
Overall Width
(Single Tires)
14' 5" 4.4 m
Overall Width
(Dual Tires)
18' 1" 5.5 m
Front Axle to Rear Axle
(TBHD Only)
16' 6" 5 m
Hitch Pin to L/U Auger 40' 0" 12.2 m
Front Tire Spacings 6' 0" 1.8 m
Rear Tire Spacings, Single 14' 4.27 m
Rear Tire Spacings, Inside Dual 10'5" 3.2 m
Rear Tire Spacings, Outside Dual 18' 4" 5.59 m
Weight, Empty (Single Tires) *** 20,000 lb 9070 kg
Load/Unloading Augers/Conveyor 10" (25cm) Deluxe
L/U Auger Load Rate (max.)
  85 bu/min
2995 l/min
Monitor/Controller options Choose between the:

-  X30 Apollo System
- ISO Apollo System

*** All Units weighed with a L/U Auger

Read More
