Total Tank Volume |
700 bu |
24667 l |
#1 Tank Volume |
370 bu |
13038 l |
#2 Tank Volume |
95 bu |
3348 l |
#3 Tank Volume |
30 bu |
1057 l |

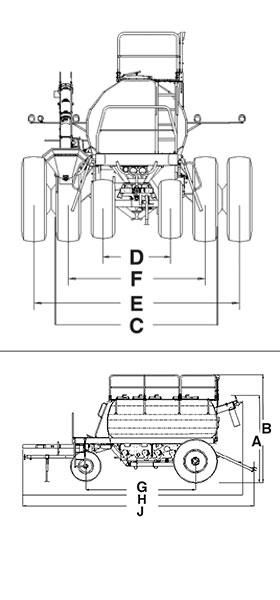

A. Height - Transport (Top of L/U Agr/Cnvr) |
12' 2" |
3.7 m |
B. Height - Field (Top of Hand Rail) |
15' 0" |
4.6 m |
C. Overall Width (Single Tires) |
17' 9" |
5.4 m |
G. Front Axle to Rear Axle (TBHD Only) |
22' 10" |
7 m |
H. Length - Hitch Pin to L/U Auger/Conveyor |
40' 11" |
12.5 m |
J. Length - Hitch Pin to Rear Tow Hitch Pin |
42' 3" |
12.9 m |
D. Front Tire Spacings |
10' 4" |
3.1 m |
Rear Tire Spacings, Single |
N/A |
N/A |
F. Rear Tire Spacings, Inside Dual |
10' 0" |
3 m |
E. Rear Tire Spacings, Outside Dual |
15' 0" |
4.6 m |
Weight, Empty (Single Tires) *** |
22500 lb |
10206 kg |
Load/Unloading Augers/Conveyor |
10" (25 cm) Conveyor |
|
L/U Auger/Conveyor Load Rate (max.) |
110 bu/min |
3876 l/min |
*** All Units weighed with a L/U Auger or Conveyor
