Model 6350Past Performers



Years In Service


2005 - 2020

Best Option for Smaller Operations

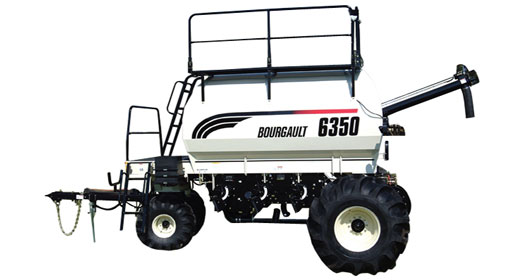

Model 6350 Air Seeder
  • PDM Metering & Transmission Drive
  • Bourgault Class A Product Distribution System
  • Tank Mounted Camera System
  • Cab Rate Adjust
  • Optional Product Lift System

Model 6350
  • Product Distribution System - The Bourgault Class A Product Distribution System includes the PDM Metering Auger, Straight-Thru Primary Lines, and an Air Seeder Kit that is proven to be even, accurate, and gentle on all products.
  • Positive Displacement Metering
    • PDM Pro Metering - A precise, finely pitched high-density poly metering auger draws product from a large, flow-through sump, through a machined metering orifice.  The barrel of the auger housing is lined with a UMHW liner. (later models)
    • PDM Plus Metering - The high density poly metering auger is matched with a machined steel orifice to provide accurate and consistent product metering (older models)
  • Transmission Metering Drive - The metering system transmits power from the drive wheel through a main clutch & drive shaft.  Separate gearboxes are stationed along the drive shaft, each protected with it's own torque limiting clutch.
  • Good Floatation -  Various Tire Options ensure good floatation & minimal compaction.
  • Cab Rate Adjust - The Cab Rate Adjust option allows you to adjust the metering rate of each individual metering auger on-the-go from the tractor cab.
  • Tank Mounted Camera System - Bourgault offers a leading stand-alone monitoring system that allows you to watch what is happening in each compartment and behind the air seeder.
  • Product Lift System - Bourgault is the first in the industry to provide the Product Lift System for operator safety and convenience.
Read More



Versatile Commodity Cart


Model 6350
  • Power Hydraulic Calibration System
  • Model 591 Air Seeder Monitor
  • Optional Optical Blockage Sensors
  • Optional X35 Seed Rate Controller
  • Equipped with the 8" Dia. Standard Auger
  • Working Lights

Right Size with Complete Versatility

Exceptional Value & Rugged Dependability

  • Power Hydraulic Calibration - The Hydraulic Calibration feature will enable you to capture a large sample for a more accurate rate calculation, especially with low-rate products such as canola.
  • Model 591 Air Seeder Monitor - The 591 Air Seeder Monitor provides instantaneous feedback on air seeder operations including fan speed, application rate, bin levels, area seeded, & ground speed.
  • Optical Blockage Sensors - Available as single run or full run packages.
  • The X35 Apollo System
    • Features a heads-up dashboard, customizable to view up to 8 air seeder functions with 3 viewable items per function.
    • A Wi-Fi dongle, which is installed to the back of the X35 generates a local wireless hotspot that a smart phone or tablet can be connected to when the appropriate app is installed.
    • The Topcon X30 Apollo, X30 1B1, and X20 Seeder Controllers were also an option on older models.
  • 8" Dia. Standard Auger - The Standard 8 Inch (203mm) Load/Unload Auger provides a simple and effective means to transfer product into and out of the air seeder.  Achieve 30 bu/min. load rates, based on dry barley @ 48 lb/bu.
  • Working Lights - Are located around the metering transmissions, the sides of the tank, the load/unload auger spout, cat walk, and on the rear of the air seeder to enhance productivity and safety during night time operation.
Read More



Specifications


Expand to access detailed product specifications.


Model 6350
Total Tank Volume 350 bu 12,330 l
#1 Tank Volume 140 bu 4,930 l
#2 Tank Volume 70 bu 2,470 l
#3 Tank Volume 140 bu 4,930 l
Height - Transport (Top of L/U Agr/Cnvr) 12' 1"  3.7 m
Height - Field (Top of Hand Rail) 14' 0"  4.3 m
Overall Width (Single Tires) 13' 2" 4 m
Front Axle to Rear Axle (TBHD Only) 12' 6" 3.8 m
Hitch Pin to L/U Auger/Conveyor - Tow Behind Units 29' 2"  8.9 m
Hitch Pin to L/U Auger/Conveyor - Leading Units 31' 3"  9.5 m
Hitch Pin to Rear Tow Hitch Pin - Tow Behind Units  29' 10"  9.1 m
Hitch Pin to Rear Tow Hitch Pin - Leading Units 27' 3"  8.3 m
Front Tire Spacings (TBHD Only) 5' 0"  1.5 m
Rear Tire Spacings, Single 10' 10"**  3.3 m**
Weight, Empty *** 11,000 lb  4,990 kg
Loaded Hitch Weight, Leading Units 6,500 lb 2,950 kg
Load/Unloading Auger 8" (20 cm) Standard
L/U Auger Load Rate (max.) 30 bu/min
1,057 l/min
Hyd Fan Requirements Refer to Air Seeder Fan specification page

**   10' (3m) row crop option also available
***  All Units weighed with a L/U Auger

Tire Options
Rear Axle (Singles)

28L x 26 R1 Lug
800/65R32 R1-W Lug
520/85R38 R1 Lug
520/85R38 R1 Lug (Row Crop)

Read More
