Model 2200Past Performers



Years In Service


2007 - 2008

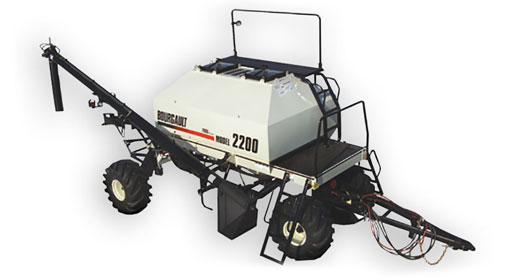

Model 2200


Quality Equipment for an Economical Price.

The Model 2200 Air Seeder is designed specifically for farming operations that are as concerned about equipment price as productivity. No other manufacturer offers the level of features, quality and durability in an entry level seeding system.

  • Stationary Rate Calibration
  • PDM Plus Metering System
  • Simple "Quick Change Sprocket" Metering Adjustment

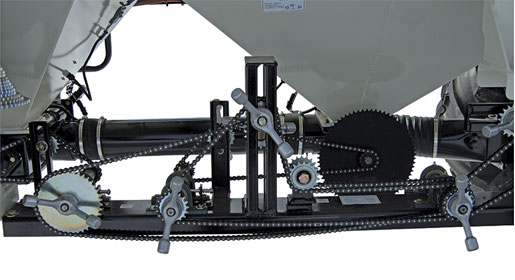

Simple & reliable Quick Change Sprocket metering system.
  • Stationary Rate Calibration - With a manual calibration crank an operator can quickly perform stationary calibration. The stationary rate calibration system provides a hand crank and drive shaft coupler to allow you collect and measure product samples in the yard. The 820 Air Seeder monitor will track the simulated acres while collecting a sample to help you determine the desired rate. Be confident that your desired rate is the rate applied!
  • PDM Plus Metering System - The Positive Displacement Metering (PDM) Plus metering system incorporates a precise, finely pitched auger which draws product from a large, flow-through sump, through a machined metering orifice, then deposits it into the air stream.
  • Quick Change Sprocket - The wrenchless Quick Change Sprocket Metering Drive allows you to select any rate without the need for changing or adjusting the internal workings of the metering system.
Read More



Quality Equipment for Emerging Producers

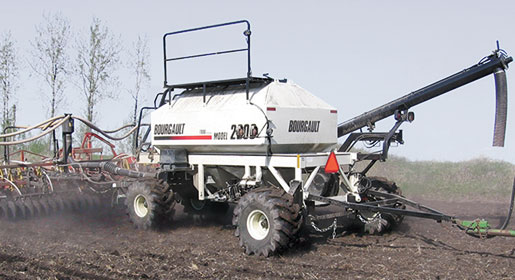

2200 Air Seeder
  • 820 Air Seeder Monitor
  • Standard 8" Load/Unload Auger.
  • Product Features

Quality and durability in an entry level seeding system.
  • 820 Air Seeder Monitor - Provides feedback on critical air seeder operations
    • fan speed in r.p.m.
    • case drain pressure alarm
    • ground speed in m.p.h. or km/h
    • Field Area and Total Area in acres or ha
    • 2 metering shafts
    • 2 single level bin sensors
    • monitoring for optional blockage modules.
  • Standard 8" Load/Unload Auger - Provides a simple and effective means to transfer product into and out of the air seeder.
  • Product Features:
    • Convenient two-stage ladder and 5th-wheel platform with handrails provide safe and easy access to the tank top from either side of the air seeder.
    • Wide wheel placement and front-rear wheel offset minimizes soil compaction and ensures stability on hilly terrain.
    • Wide wheel placement ensures stability on hilly terrain. Front and rear wheels are offset from each other to minimize compaction.
    • The row crop option locates the front axle on 60" spacing, and rear axle on 120" spacing.
Read More



Specifications




Expand to access detailed product specifications.

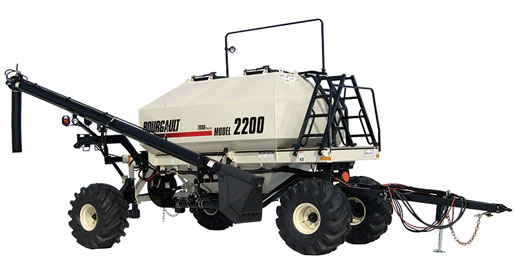

Model 2200
Weight 6500 lb 2948 kg
Height 12' 6" 3.8 m
Width 11' 6" 3.5 m
Length 30' 6" 9.3 m
Total Tank Volume 200 bu 7048 L
Front Tank 120 bu 4229 L
Rear Tank 80 bu 2819 L
Seeding Rate Ranges, PDM Plus Auger:
Single Flight 20 to 260 lbs/acre 22 to 291 kg/ha
Double Flight 2 to 150 lbs/acre 2.2 to 168 kg/ha
Fan Drive, Hydraulic Motor Hydraulic Piston Motor - 15,000 hour rating
Minimum Motor Requirements Closed centre hydraulics, 10gal/min at 2250 p.s.i. Closed centre hydraulics, 37.8L/min at 15,500 k.p.a.
Meter Drive Ground driven, engaged by magnetic clutch
Load/Unload Auger 8" diameter with 0.5" hopper screen 203mm diameter with 13mm hopper screen
Monitor 820 Air Seeder Monitor
Tires 21.5L x 16.1 x 8 ply
Front Wheels, Centre to Centre 5' 0" 1.5 m
Rear Wheels, Centre to Centre 10' 2" 3.1 m

Read More
