Model 2195Past Performers



Years In Service


1989 - 1991

Model 2195

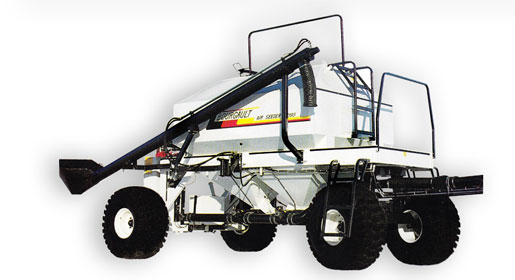

2195 Air Cart

The Model 2195 has a total tank capacity of 192 bushels, with front tank holding 118 bushels and the rear holding 74 bushels.

  • High Efficiency 18" Fan
  • Precise Bechard Metering System
  • Heavy Duty Magnetic Clutch
  • High Performance Cessna Piston Motor

A Very Precise Metering System
  • High Efficiency 18" Fan -  The Bourgault design is extremely efficient and reliable, requiring only 5 to 10 horsepower. The fan is dynamically balanced to ensure years of trouble free operation.
  • A Very Precise Metering System - The patented Bechard auger metering system is capable of metering a wide range of seed or fertilizer without having to change the internal workings of the metering system.
  • Heavy Duty Magnetic Clutch - Extra heavy duty Warner magnetic clutch (rated at a static torque of 70 ft.-lbs.) turns metering on and off. The control box has a visual reminder so you can tell at a glance if the metering is on. An auxiliary clutch is available for independent control of the rear meter.
  • High Performance Cessna Piston Motor - The 18" radial fan is hydraulically powered by a high precision Cessna piston motor. This motor has a rated life of 15,000 hours at 2,500 psi and 3,000 rpm.
  • Gas Engine: A 20 h.p. Kohler Magnum is available for an independent drive of the air seeder fan.
Read More



Large Acreage Capacity


The fastest rate change in the industry.
  • Excellent Flotation
  • Quick Change Sprocket System
  • 7" Auger with Convenient Hopper

Hook-up is quick and easy
  • Excellent Tire Options - Standard 21.5L x 16.1, 6 ply, Softrac lug type tread tires run on independent wheel tracks to minimize compaction and pulverization.
  • Fastest Rate Change System - A "wrenchless" rate change system can be adjusted in less than two minutes.
  • Load/Unload Auger - The 7 inch auger will load the air seeder in less than 15 minutes. The well-balanced auger is convenient to maneuver and can easily be set up to unload by rotating the auger 180 degrees. The large auger hopper makes for spill free operation and the conveniently placed cleanouts make changing seeds a breeze. The open centre control valve prevents tractor hydraulic kick-out if the auger is stopped or reversed.
Read More



Specifications




Expand to access detailed product specifications.


Model 2195
Weight
2195H 4350 lbs.
2195G 4785 lbs.
Height 11'11"
Width 10'4"
Length 25'10"
Tank Capacity 192 bus.
Front Tank 118 bus.
Rear Tank 74 bus.
Tires 21.5L x 16.1, 6 ply, Softrac
Air Stream Capacity Basis 40' - 350 lbs/acre at 5 mph 12.19 m - 392 kg/ha. at 8 km/hr.
Fan 18"  High efficiency radial blade. 457 mm
Seeding Ranges:
Front Auger 20 to 216 Ibs./acre 22 to 242 kg/ha
Rear Auger 2.4 to 157 Ibs./acre 2.7 to 170 kg/ha
Seed Boot Lines 8" & 9" spaced - 1/3 I.D. 12" spaced -1 1/4" I.D. 19.1 mm, 31.75 mm
Spring Scale for calibration is standard 60 lb. capacity 27.22 kg
Monitor System

Model 101 Monitor
Digital blower rpm, LCD display
Clutch on/off Indicator Light
Low Bin Level Alarms
Meter Shaft Alarms
Electronic Calibration and Acre Meter

Fan Drive Choice of hydraulic or gas motor
Gas Engine Kohler Magnum, 20 B.H.P. 14.9 kW
Battery Heavy Duty 330 amp.
Air Cleaner Donaldson Cyclo-Pak Dual Element
Fuel Tank 14 gallon  64 litres
Front Auger Double flight, nickel plated
Rear Auger Triple flight, nickel plated
Meter Drive Ground drive, from Rear Wheel
Auxiliary Clutch for Independent
Control of Rear Meter
Optional
Dual Shoot Granular Herbicide Attachment Optional

Read More
