2000 "Special" Air SeedersPast Performers



Years In Service


2115 Special: 1991 - 1993, 2130 Special: 1993 - 1999

2000 Special Series


2135 Air Cart

2115 Special & 2130 Special

The Bourgault 2000 "Special" Series were release to provide high quality air seeding carts at an economical price.  The initial Model 2115 Special (115 bushel capacity) was replaced by the Model 2130 Special (130 bushel capacity) in 1993.

  • 60% - 40% Tank Splits
  • Precise Metering System

Control the Auger From Above or Below
  • Split Tanks - Each Air Seeder tank is split, with a 60% ratio in the front tank, and a 40% ratio in the rear tank.
    • 2115 Special: 70 Bu (2.47 m3), 45 Bu (1.6 m3)
    • 2130 Special: 79 Bu (2.8 m3), 51 Bu (1.78 m3)
  • Precise Metering System -  The patented Bechard auger metering system is capable of metering many types of seed or fertilizer without having to change the internal workings of the metering system.
  • Electric Clutch - The metering augers are controlled by an electric clutch run off the left rear Air Seeder wheel. A drive sprocket, attached to the electric clutch, matches the Air Seeder to the size and type of cultivator being used.
Read More



Highest Standards Of Quality

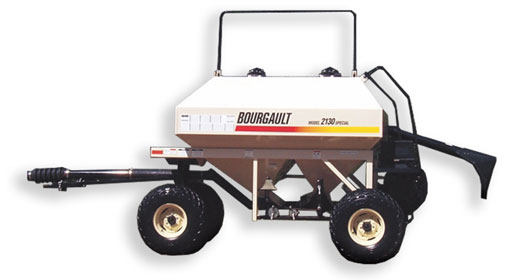

The Model 2130 Special Air Seeder
  • Quick Change Sprocket Metering Drive
  • Model 101 Monitor

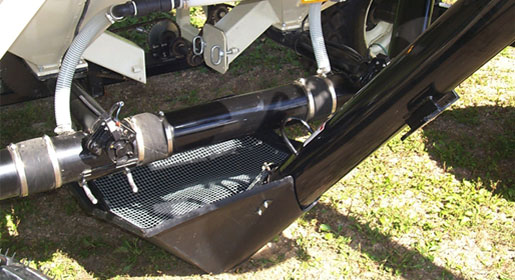

The wrenchless “quick Change” sprocket system
  • Quick Change Sprocket System - A "wrenchless" quick change meter adjustment system lets change rates in less than two minutes.
  • Model 101 Monitor - The Model 101 Monitor is equipped to sense bin levels for both tanks, shaft rotation for both metering augers, and fan speed.
Read More



Specifications




Expand to access detailed product specifications.


Model 2130 Special 2115 Special
Fan Drive GAS HYDRAULIC GAS HYDRAULIC
Weight 3375 lbs (1532kg) 3135 lbs (1423 kg) 2880 lbs (1306 kg) 2455 lbs (1114 kg)
Width 8’6" (2.59 m) 8’ 6" (2.59m)
Height 10’ (3.05m) 10’ (3.05m)
Length 18' (5.49m) 18' (5.49m)
Tires

12.5x16 8 Ply Rib Implement
12.4x16 6 Ply All Weather

12.5Lx16 8 Ply Rib Implement
12.4x16 6 Ply All Weather

Air Seeder Tank Front 79 Bushels (2.80 m3) 70 Bushels (2.47 m3)
Air Seeder Tank Rear 51 Bushels (1.78 m3) 45 Bushels (1.60 m3)
Air Seeder Tank Total 130 Bushels (4.60 m3) 115 Bushels (4.07 m3)
Radial Fan 18" (457 mm) Radial Blade 18" (457 mm) Radial Blade




Fan Drive Hydraulic Piston Motor (2130)/Eaton Gear Motor(2115)
Oil Pressure Required (Minimum) Closed Center Hydraulics at 2,250 psi (15525 kpa)
Oil Flow Rate Required 10 IMP G.P.M. (45.40 L/min)
Fan Drive Kohler Gasoline Engine
Engine Power 20 B.H.P. (14.9 Kw)
Air Cleaner Donaldson Cyclo Pak
 Battery 330 Amp
Fuel Tank 14 gallon (64 liters)
