Weight |
|
Hydraulic |
2,495 lbs. (1,132 kg.) |
Gas |
2,930 lbs. (1,329 kg.) |
Height |
10' (3.05 m) |
Width |
8'6" (2.59 m) |
Length |
18' (5.49 m) |
Total Tank Volume |
115 bu - 143.73 ft.3 (4.07 m3) |
Front Tank Volume |
70 bu -87.50 ft3 (2.48 m3) |
Rear Tank Volume |
45 bu -56.25 ft. 3(1.6 m3) |
Tank Capacities |
Actual (Basis Wheat @ 60 lbs/bu) |
Front Tank (No stuffing of corners) |
70.4 bu |
stuffing all comers |
72.7 bu |
Rear Tank (No stuffing of corners) |
45.4 bu |
stuffing all comers |
46.2 bu |
Fan |
18" (475 mm) radial blade |
Air Stream Capacity Basis |
(Higher rates are available at lower ground speeds.) |
40 ft. (12.2 m) and 5 m.p.h. (8 km/hr) |
350 lbs./acre (392 kg/ha) |
52 ft. (15.9m) and 5 m.p.h. (8 km/hr) |
N/A |
Seeding Ranges |
|
Front Auger |
20 to 314 lbs./acre (22 to 352 kg/ha) |
Rear Auger |
2.4 to 174 lbs./acre (2.7 to 188 kg/ha) |
Combined Output |
22.4 to 478 lbs./acre (24.9 to 540 kg/ha) |
Monitor System |
|
Digital blower r.p.m. - LCD display |
Standard |
Clutch on/off indicator light |
Standard |
Low bin level alarms |
Optional |
Meter shaft alarms |
Optional |
Acre/calibration meter |
Standard 198 Model chassis mounted, battery operated |
Acre/calibration meter |
Optional, In-cab, electronic |
Scale and calibration boxes |
Standard |
Air Seeder Fan Drive |
|
Gas |
20 HP Kohler Magnum
Heavy-duty 330 amp. battery
14 gal. (64 liter) fuel tank
Donaldson Cyclo Pak dual element air cleaner
|
Hydraulic |
Eaton piston motor with 15,000 hour rating
Requires closed center hydraulics and a minimum of 10 imp. gal./min. at 2250 p.s.i.
|

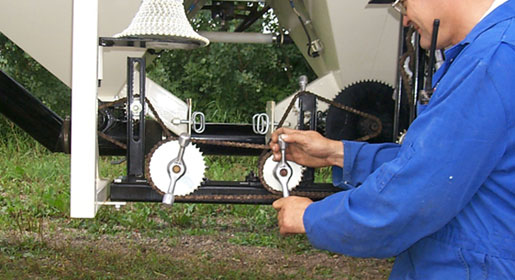

Meter Drive |
Positive ground
Engaged using a heavy duty
Warner Magnetic Clutch
|

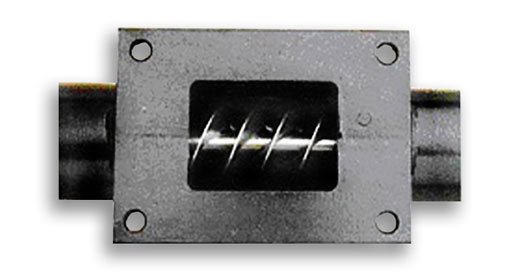

Front Auger |
Standard double flighting, nickel plated |
Rear Auger |
Standard triple flighting, nickel plated |
Tires |
12.4 x 16, 6-ply, All Weather |
Load/Unload Auger |
Optional, 6" (15.24 cm) |
Auxiliary Clutch |
Optional (for Independent Control of Rear Meter) |

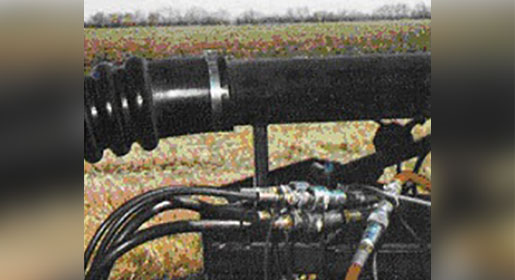

Tow Hitch & Hydraulic Lines |
Optional (for Wing type Packer) |
Dual Shoot Herbicide Attachment |
Optional |
