4000 Series Air CartsPast Performers



Years In Service


1995 - 1999 (refer to main chart for exact ranges per model)

4000 Series Air Carts


Model 5200

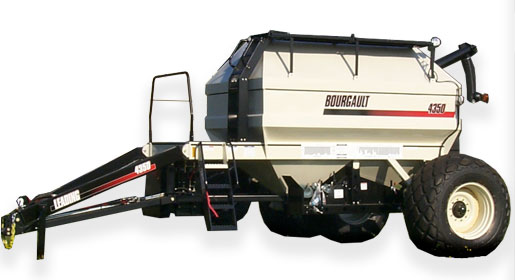

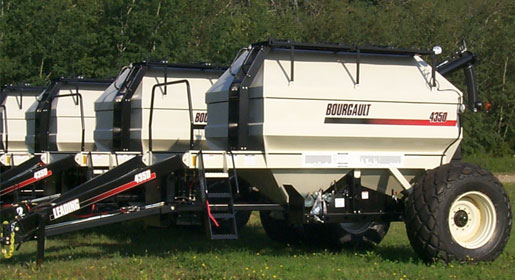

Models 4350, 4300, 4250

  • Each model consists of a three compartment tank.
  • The patented Bechard metering auger system was set with a quick change sprocket system.
  • Available with 277 or 491 monitors.
  • Single or optional dual fan systems were available.
  • 8" Load/Unload Auger

5000 Series Air Seeders were released in Leading or Tow Behind configurations
  • The patented Bechard metering auger system is positioned on the bottom of each tank to meter out the contents and place it into the air stream for distribution.
  • The metering system is driven by the rear cart wheel through a system of roller chains and interchangeable for setting the metering rate.
  • The clutch control and monitor are mounted in the cab next to the operator.
  • The 277 standard and 491 Deluxe air seeder monitor were available.
  • A stream of air is used to convey the seed, fertilizer, and/or herbicide through the distribution system. An optional dual air system is available if required. Hoses direct the air flow and material to the distributing components on the hoe drill or cultivator.
  • The fan(s) are powered by the tractor hydraulics.
  • The load/unload auger is mounted on the right side of the tank.
Read More



Specifications




Models 4350, 4300, 4250

Expand to access detailed product specifications.


Models 4350 4300 4250
Base sizes 350 Bushels 300 Bushels 250 Bushels
Weight (with l/u auger) 9,500 lbs 9,200 lbs 8,900 lbs
Height
Tow Behind 14' 2" 13' 3" 13' 1"
Leading 14' 10" 13' 11" 13' 7"
Length
Tow Behind with l/u auger 29' 6" 29' 6" 29' 6"
Leading with l/u auger 30' 7" 30' 7" 30' 7"
Tank Capacity
Total 350 bushels 300 bushels 250 bushels
Front 140 bushels 120 bushels 100 bushels
Centre 70 bushels 60 bushels 50 bushels
Rear 140 bushels 120 bushels 100 bushels

Tire Specifications

Model 4350 Tow Behind Front Tow Behind Rear Leading Air Seeder
  21.5Lx 16.1 - 10 Ply 28L x 26 -10/12 Ply 30.5L x 32 - 10/12 Ply
  Softrac - 28 psi Diamond Lug - 22 psi Diamond Lug - 20 psi
  21.5Lx 16.1 - 8/10 Ply 28L x 26 - 10/12 Ply 30.5L x 32 - 10/12 Ply
  Tractor Lug - 28 psi Rice Lug - 22 psi Rice Lug - 20 psi
  700/50-22.5 8/12PLY 1-331 28L x 26 - 10/12 Ply -
  Deep Traction Lug - 15 psi Rice Lug - 22 psi -

Model 4300 Tow Behind Front Tow Behind Rear Leading Air Seeder
  21.5Lx 16.1 - 10 Ply 23.1 x 26 - 8 Ply 30.5Lx 32 - 10/12 Ply
  Softrac - 22 psi Diamond Lug - 20 psi Diamond Lug - 16 psi
  21.5Lx 16.1 - 10 Ply 28L x 26 - 10/12 Ply 30.5L x 32 - 10/12 Ply
  Softrac - 22 psi Rice Lug - 22 psi Rice Lug - 16 psi
  21.5Lx 16.1 - 8/10 Ply 23.1 x 26 - 10 Ply -
  23.1 x 26 - 10 Ply Rice Lug - 20 psi -
  21.5Lx 16.1 - 8/10 Ply 28L x 26 - 10/12 Ply -
  Tractor Lug - 22 psi Rice Lug - 16 psi -
  700/50-22.5 8/12PLY 1-331 28Lx 26 - 10/12 Ply -
  Deep Traction Lug - 15 psi Rice Lug - 22 psi -

Model 4250 Tow Behind Front Tow Behind Rear Leading Air Seeder
  16.5Lx 16.1 - 10 Ply 18.4 x 26 - 10 Ply 30.5Lx 32 - 10/12 Ply
  Diamond Lug - 34 psi Diamond Lug - 24 psi Diamond Lug - 20 psi
  16.5Lx 16.1 - 10 Ply 18.4 x 26 - 10 Ply 30.5Lx 32 - 10/12 Ply
  Tractor Lug - 34 psi Rice Lug - 24 psi Rice Lug - 12 psi
  21.5Lx 16.1 - 10 Ply 23.1 x 26 - 8 Ply -
  Softrac - 18 psi Diamond Lug - 16 ps -
  21.5Lx 16.1 - 8/10 Ply 23.1 x 26 - 10 Ply -
  Tractor Lug - 18 psi Rice Lug - 16 psi -
  700/50-22.5 8/12PLY 1-331 28Lx 26 - 10/12 Ply -
  Deep Traction Lug - 15 psi Rice Lug - 22 psi -
