Weight |
|
Hydraulic |
5,220 lbs. (2,368 kg.) |
4,910 lbs. (2,228 kg.) |
4,510 lbs. (2,046 kg.) |
Gas |
5,655 lbs. (2,566 kg.) |
5,345 lbs. (2,425 kg.) |
4,945 lbs. (2,198 kg.) |
Height |
12'5" (3.78 m) |
11'11" (3.63 m) |
11'10" (3.61 m) |
Width |
10'4" (3.15 m) |
10'4" (3.15 m) |
10'4" (3.15 m) |
Length |
25'10" (7.87 m) |
25'10" (7.87 m) |
25'10" (7.87 m) |
Total Tank Volume |
225.3 bus. - 282 ft.3 (7.98 m3) |
198.9 bus. - 249 ft.3 (7.05 m3) |
167.3 bus. - 209 ft.3 (5.92 m3) |
Tank Capacities |
Actual (Basis Wheat @60 lbs./Bus.) |
Front Tank
- no stuffing of corners
- stuffing all corners |
140.1 bus.
141.8 bus. |
121.25 bus.
125.91 bus. |
99.20 bus.
103.31 bus. |
Rear Tank
- no stuffing of corners
- stuffing all corners |
85.2 bus.
86.6 bus. |
77.62 bus.
78.44 bus. |
68.13 bus.
69.84 bus. |
Fan |
18" (457 mm) radial blade |
18" (457 mm) radial blade |
18" (457 mm) radial blade |
Air Stream Capacity |
Based on 5 mph (8 km/hr), Higher rates are available at lower ground speeds |
40 ft. (12.2 m) 2250 tractor p.s.i |
350 lbs./acre (379 kg./ha.) |
350 lbs./acre (379 kg./ha.) |
350 lbs./acre (379 kg./ha.) |
52 ft. (15.9 m) and 2250 tractor p.s.i |
320 lbs./acre (346 kg./ha.) |
320 lbs./acre (346 kg./ha.) |
320 lbs./acre (346 kg./ha.) |
60 ft. (18.28 m) 2450 tractor p.s.i |
340 lbs./acre (367 kg./ha.) |
340 lbs./acre (367 kg./ha.) |
N/A |
Seeding Ranges |
|

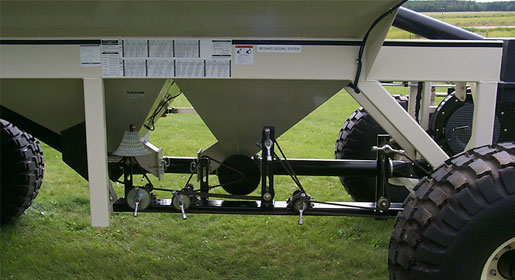

Front Auger |
20 to 314 lbs./acre |
20 to 314 lbs./acre |
20 to 314 lbs./acre |
|
(22 to 352 kg./ha.) |
(22 to 352 kg./ha.) |
(22 to 352 kg./ha.) |
Rear Auger |
2.4 to 174 lbs./acre |
2.4 to 174 lbs./acre |
2.4 to 174 lbs./acre |
|
(2.7 to 188 kg./ha.) |
(2.7 to 188 kg./ha.) |
(2.7 to 188 kg./ha.) |
Maximum rates, both meters |
488 lbs./acre (540 kg./ha.) |
488 lbs./acre (540 kg./ha.) |
488 lbs./acre (540 kg./ha.) |
Monitor System |
|
Digital blower rpm. LCD display. |
Standard |
Standard |
Standard |
Clutch On/Off switch with indicator lights |
Standard |
Standard |
Standard |
Low bin level alarms |
Standard |
Standard |
Standard |
Meter shaft alarms |
Standard |
Standard |
Standard |
In-cab electronic acre/calibration meter |
Standard |
Standard |
Standard |
Air Seeder Blower drive |
|
Gas |
20 HP Kohler Magnum |
20 HP Kohler Magnum |
20 HP Kohler Magnum |
|
Heavy-duty 330 amp. battery |
Heavy-duty 330 amp. battery |
Heavy-duty 330 amp. battery |
|
14 gal. (64 litres) fuel tank |
14 gal. (64 litres) fuel tank |
14 gal. (64 litres) fuel tank |
Hydraulic |
Eaton piston motor with 15,000 hour rating |
Eaton piston motor with 15,000 hour rating |
Eaton piston motor with 15,000 hour rating |
Hyd. Requirements |
Closed center hydraulics, 10 imp. gal./min. min.
at 2,250 p.s.i. |
Closed center hydraulics, 10 imp. gal./min. min.
at 2,250 p.s.i. |
Closed center hydraulics, 10 imp. gal./min. min.
at 2,250 p.s.i. |
Front Auger - Double flighting, nickel plated. |
Standard |
Standard |
Standard |
Rear Auger - Triple flighting, nickel plated. |
Standard |
Standard |
Standard |
Load/Unload Auger - 7 inch (17.78 cm) |
Optional |
Optional |
Optional |
Tires |
Front-21.5x16.1, 6-ply, Softrac |
Front-21.5x16.1, 6-ply, Softrac |
Front-21.5x16.1, 6-ply, Softrac |
|
Rear-21.5 x 16.1. 10-ply, Softrac |
Rear-21.5 x 16.1. 10-ply, Softrac |
Rear-21.5 x 16.1. 10-ply, Softrac |
|
- |
- |
Optional - Front - 21.5 x 16.1. 6-ply, Softrac |
|
- |
- |
Optional - Rear - 21.5 x 16.1, 6-ply,Softrac |
Auxiliary Clutch for Independent Control of |
|
Rear Meter |
Optional |
Optional |
Optional |
Dual Shoot Granular Herbicide Attachment. |
Optional |
Optional |
Optional |
Tow Hitch & Hydraulic Lines for Wing Type Packer |
Optional |
Optional |
Optional |
Granular Herbicide Tank - Optional |
36 ft.3 (1.02 m3) |
42 ft.3 (1.19 m3) |
35 ft.3 (.99 m3) |
Auxiliary Blower for Third Tank |
Optional |
Optional |
Optional |
