Model 138 Air CartPast Performers



Years In Service


1981 - 1985

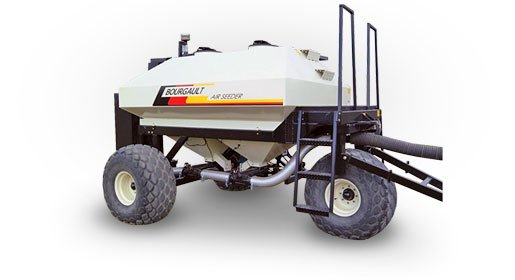

Model 138


Model 115 Air Cart

Sow Far. Sow Good

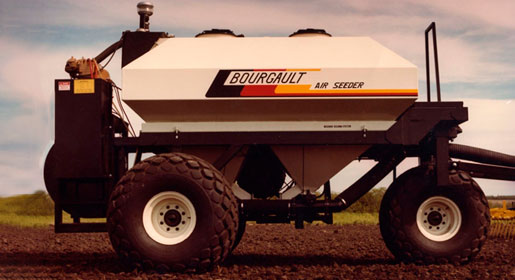

The Model 138 Air Seeder allowed to do four operations in one pass through the field. That cut down on fuel costs, equipment needs and labour. It also meant better farming.



Out of one field and on to the next.

Model 115 Air Cart

With a Bourgault 138 Air Seeder the loading and changing seed and fertilizer is done in a matter of minutes. The Bechard Auger Metering System provides simple, accurate adjustments for grains and fertilizers. To transport the air seeder, just fold the cultivator wings and hit the road. The stable Bourgault wheel design allows transport at tractor road speeds.

The Bourgault 138 Air Seeder is positioned behind the cultivator so you have an unobstructed view from the tractor seat of all shanks. And flotation tires mean the seeder applies no more pressure to seeded soil than would a man walking across the field.

Read More



Specifications




Expand to access detailed product specifications.


Model 138 Model 138-D (Diesel) Model 138-H (Hydraulic) Model 138-G (Gas)
Weight 5010 lbs (2272 kg) 4380 lbs (1987 kg) 4985 lbs (2261 kg)
Width 8'10" (2.69 m) 8'10" (2.69 m) 8'10" (2.69 m)
Height 87" (2.62 m) 87" (2.62 m) 87" (2.62 m)
Length 20' (6.1 m) 20' (6.1 m) 20' (6.1 m)
Total Capacity (Approx.) 138 BSH (171 ft3) (4000 L) 138 BSH (171 ft3) (4000 L) 138 BSH (171 ft3) (4000 L)
Front Tank (Approx.) 76 BSH (94 ft3) (2200 L) 76 BSH (94 ft3) (2200 L) 76 BSH (94 ft') (2200 L)
Rear Tank (Approx.) 62 BSH (77 ft3) (1800 L) 62 BSH (77 ft3) (1800 L) 62 BSH (77 ft3) (1800 L)
Blower Turbo Fan-35 in. (889mm), Precision Balanced Turbo Fan-35 in. (889mm), Precision Balanced Turbo Fan-35 in. (889mm), Precision Balanced
Blower Tachometer Standard Equipment Standard Equipment Standard Equipment
Engine Wisconsin Diesel Volvo Hydraulic Onan Gas
Fuel Tank (approx.) 14 gallon (63 6 L) Not Applicable 14 gallon (63.6 L)
Battery 70 Amp.- Extra Heavy Duty Not Applicable 70 Amp.-Extra Heavy Duty
Tires (3-High Flotation) 21.5L - 16.1 - 6 Ply 21.5L - 16.1 - 6 Ply 21.5L- 16.1 - 6 Ply
Tank Pressurized Pressurized Pressurized
Main Transfer Line 5" I.D. (127.0 mm) 5" I.D. (127.0 mm) 5" I.D. (127.0 mm)
Secondary Line 2 1/2" I.D. (63.5 mm) 2 1/2" I.D. (63.5 mm) 2 1/2" I.D. (63.5 mm)
Primary Line 3/4'' I.D. (19.1 mm) 3/4'' I.D. (19.1 mm) 3/4'' I.D. (19.1 mm)
Meter Adjustment
Standard Quick Change Sprockets Quick Change Sprockets Quick Change Sprockets
Optional Variable Speed Gear Box Variable Speed Gear Box Variable Speed Gear Box
Bin level Indicator Standard Equipment Standard Equipment Standard Equipment
Maximum Rates 220 ibs/acre at 7 M.P.M. (244 kg/ha @ 11 1/4 km/hr) Note: Higher ratest can be achieved at lower ground seeds)
Seeding Manges
Front Auger Meter 22 to 12l0 bs/acre (24 to 133 kg/ha)
Rear Auger Meter 1 1/4 lbs to 120 lbs/acre (1.4 to 133 kg/ha)
