Model |

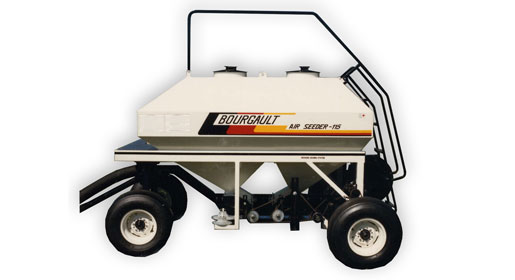

115 |

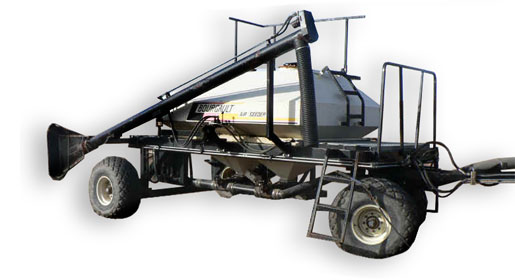

135 |

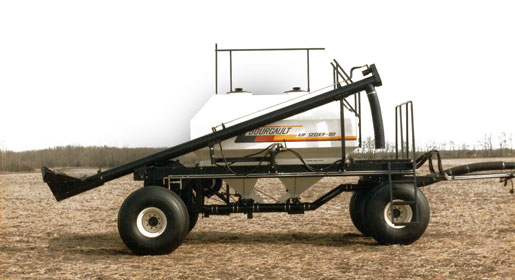

155 |

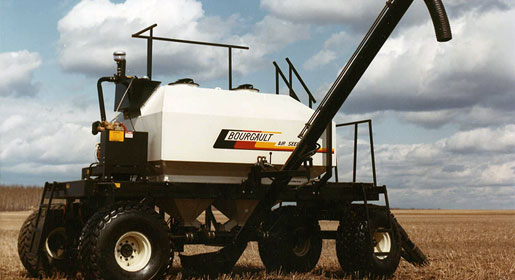

180 |
Weight - (Hydraulic) |
2455 lbs (1114 kg) |
5170 lbs (2346 kg) |
5475 lbs (2484 kg) |
5685 lbs (2579 kg) |
Height |
9'10" (3.00 m) |
10'8" (3.25 m) |
11'5" (3.48 m) |
11'11" (3.63 m) |
Width |
8'6" (2.59 m) |
10'6" (3.2 m) |
10'9" (3.27 m) |
10'10" (3.30 m) |
Length |
17'10" (5.43 m) |
23'6" (7.16 m) |
23'6" (7.16 m) |
23'6" (7.16 m) |
Tank Capacity |
115 Bu (4.07 m3) |
133 Bu (4.70 m3) |
154 Bu (5.45 m3) |
179 Bu (6.33 m3) |
Front Tank |
70 Bu (2.47 m3) |
73 Bu (2.58 m3) |
85 Bu (3.01 m3) |
98 Bu (3.46 m3) |
Rear Tank |
45 Bu (1.60 m3) |
60 Bu (2.12 m3) |
69 Bu (2.44 m3) |
81 Bu (2.87 m3) |
Standard Monitor Systems |
LCD display tachometer |
Multi-function display
micro-processor based monitor.
Functions: Blower tachometer,
ground speed, meter RPM's,
bin levels and acremeter. |
Multi-function display
micro-processor based monitor.
Functions: Blower tachometer,
ground speed, meter RPM's,
bin levels and acremeter. |
Multi-function display
micro-processor based monitor.
Functions: Blower tachometer,
ground speed, meter RPM's,
bin levels and acremeter. |
Optional Monitor Systems |
Bin levels |
Flow monitoring |
Flow monitoring |
Flow monitoring |
Blower |
18" (457 mm)
Radial Blade |
21" (533 mm)
Radial Blade |
21" (533 mm)
Radial Blade |
21" (533 mm)
Radial Blade |
Tires-Standard |
12.5L x 15, 8 ply
Rib Implement
|
16.5 x 16.1, 6 ply
All Weather
|
19Lx 16.1, 10 ply
Rib Implement
|
21.5Lx 16.1, 6 ply
Turf and Field
|
Blower drive (choice of) |
Hydraulic Motor
20 HP (14.9 Kw)
Gas Engine
20.5 HP (15.3 kw)
Diesel Engine
|
Hydraulic Motor
25 HP (18.6 Kw)
Gas Engine
20.5 HP (15.3 Kw)
Diesel Engine
|
Hydraulic Motor
25 HP (18.6 Kw)
Gas Engine
20.5 HP (15.3 Kw)
Diesel Engine
|
Hydraulic Motor
25 HP (18.6 Kw)
Gas Engine
20.5 HP (15.3 Kw)
Diesel Engine
|
Fuel Tank |
14 Gallons (64 litres) |
14 Gallons (64 litres) |
14 Gallons (64 litres) |
14 Gallons (64 litres) |
Meter Shut-Off |
Electric |
Hydraulic |
Hydraulic |
Hydraulic |
Air Stream Capacity
Basis 40 Ft (12.19m)** |
300 lbs/acre @ 6 mph
(337 kg/ha @ 9.6 km/hr) |
350 lbs/acre @ 6 mph
(393 kg/ha @ 9.6 km/hr) |
350 lbs/acre @ 6 mph
(393 kg/ha @ 9.6 km/hr) |
350 lbs/acre @ 6 mph
(393 kg/ha @ 9.6 km/hr) |
Main Transfer Line Diameter |
5" I.D. (127 mm) |
5" I.D. (127 mm) |
5" I.D. (127 mm) |
5" I.D. (127 mm) |
Secondary Lines |
21/2" I.D. (63.5 mm) |
21/2" I.D. (63.5 mm) |
21/2" I.D. (63.5 mm) |
21/2" I.D. (63.5 mm) |
Seed Boot Lines - 8" & 9" Spaced |
3/4" I.D. (19.1 mm) |
3/4" I.D. (19.1 mm) |
3/4" I.D. (19.1 mm) |
3/4" I.D. (19.1 mm) |
Seed Boot Lines -12" Spaced |
1 1/4" I.D. (31.75 mm) |
1 1/4" I.D. (31.75 mm) |
1 1/4" I.D. (31.75 mm) |
1 1/4" I.D. (31.75 mm) |
Seeding Ranges |
|
Front Auger |
25 to 130 lbs/acre
(28 to 146 kg/ha) |
25 to 130 lbs/acre
(28 to 146 kg/ha) |
25 to 130 lbs/acre
(28 to 146 kg/ha) |
25 to 130 lbs/acre
(28 to 146 kg/ha) |
Rear Auger |
3 to 130 lbs/acre
(3.4 to 146 kg/ha) |
3 to 130 lbs/acre
(3.4 to 146 kg/ha) |
3 to 130 lbs/acre
(3.4 to 146 kg/ha) |
3 to 130 lbs/acre
(3.4 to 146 kg/ha) |
Other Options: |
|
Rates |
Quick Change Sprockets |
Calibration |
Calibration Kits |
Loading/Unloading Auger
(registered industrial design issued 1985) |
Not available at time of
printing |
7" (177.8 mm) Diameter |
7" (177.8 mm) Diameter |
7" (177.8 mm) Diameter |
Large Seed Metering Auger |
Available |
* Hydraulic Motor - Requires minimum of 10 Imperial Gallons (45.5 litres) per minute and 2250 psi (15,525 Kpa) for proper blower operation.
* * Maximum Air Stream Capacity should be reduced proportionately for cultivator widths greater than 40' (12.2 m) and increased proportionately for ground speed less than 6 mph (9.6 km/hr).
