1

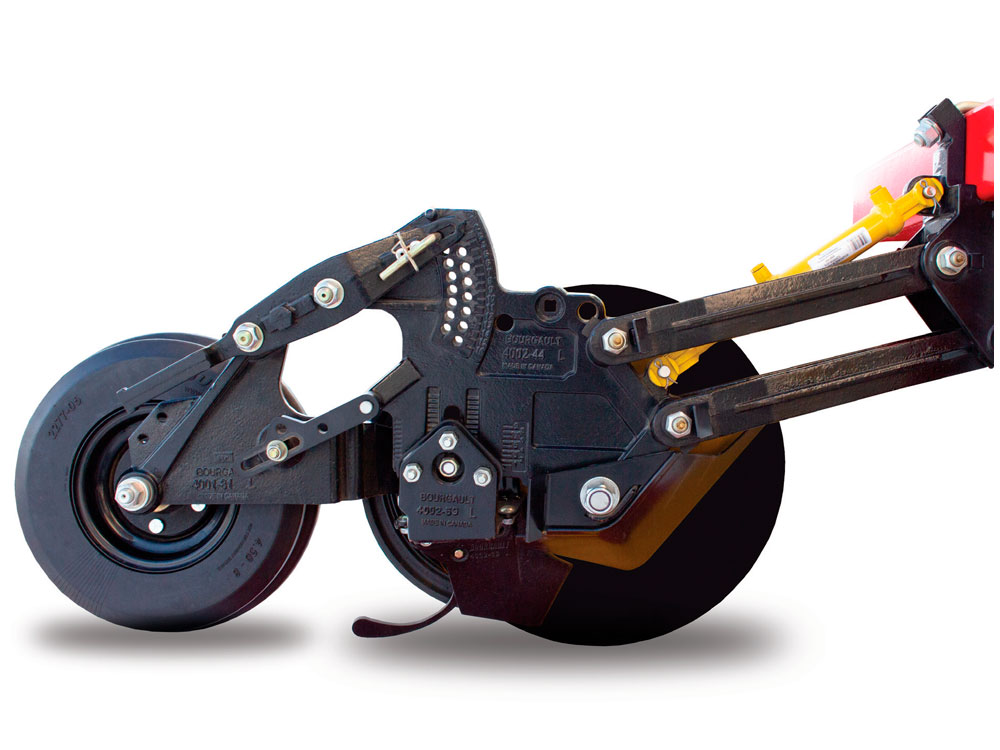

Seed Depth Adjustment
The Depth Adjustment provides seed depth changes in ¼" increments for a total of 4" of adjustment. The sure and smooth, pin-style system includes a convenient handle.
2
Parallel Arms
Parallel Arms provide a consistent angle on the coulter’s presentation to the soil. This ensures the scraper and seedboot delivery system maintains a constant attack angle to the ground providing optimum seed placement. Each arm provides +9"/ -7" of travel from nominal position.
3
Cleaner Wheel
The Cleaner Wheel keeps the coulter clear of any build up. Choose between the 3" and 4½" wide cleaner wheel.
4
Coulter Disk
The 20½" Dia. Coulter will cut through trash and ensure a good furrow is opened for the seed boot.
5
Scraper Options
The LDx™ Scraper, for Low Disturbance Seed Placement.
DISK WING™ (dw™) Scraper, seed Safely in Heavy Residue.
6
Parallel Walking Axle Design
A Parallel Walking Axle Design between the cleaner wheel and packer wheel walks over debris and furrows to reduce the sensitivity of the 1:1 contour ratio of the arm assembly.
7
Packer Wheel
Choose from three different styles of packer wheels to match your operation. When additional packing is required, the cleaner wheel can be locked up so all the force acts on the packer.
8
Walking Axle Link
You have the option to shorten the link to lock the cleaner wheel up so that the packer wheel alone sets the opener depth. Locking up the cleaner wheel is done when additional packing force is required, or if there is concern of the cleaner wheel pulverizing the soil.
