3820 ParaLink Coulter Drills™ParaLink Coulter Drills™



A CUT ABOVE THE REST

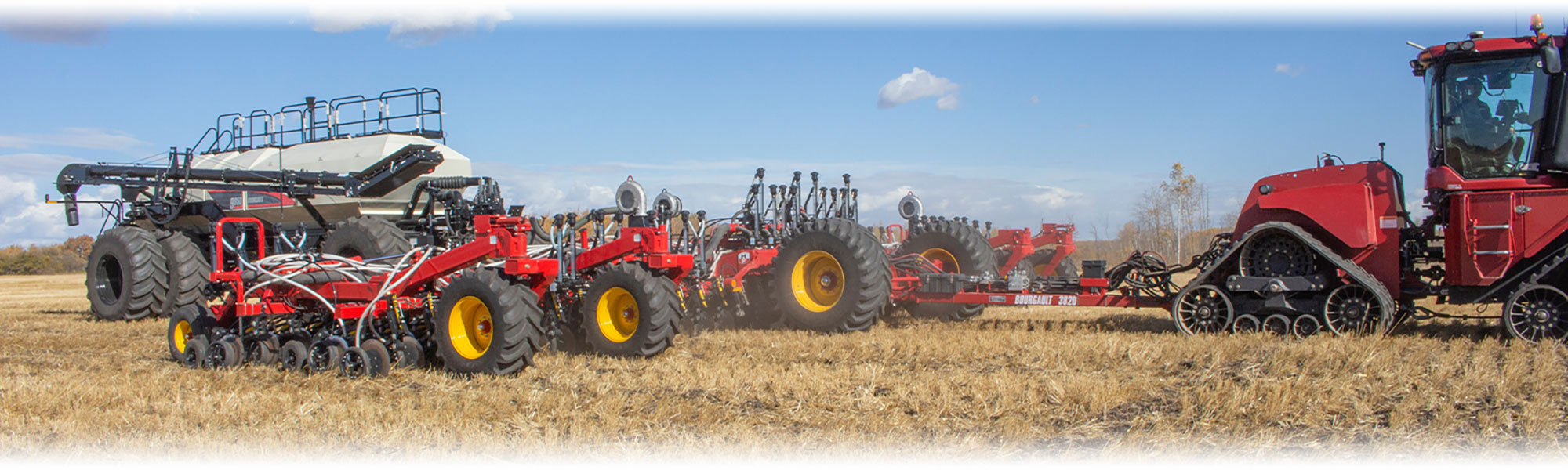

The two-row Bourgault 3820 ParaLink™ Coulter Drill provides outstanding seed placement, long-lasting components on a heavy, durable frame, and features the ParaLink Row™ coulter opener, which can accommodate both planting and seeding!
  • Available from 9.1m to 21.3m working widths.
  • Row Spacings offered at 190mm (7½"), 254mm (10") and 305mm (12").

Efficiency & Durability

Maximize your efficiency with wide range of Bourgault coulter drill sizes from 30 to 70 foot working widths

A Choice for Every Producer

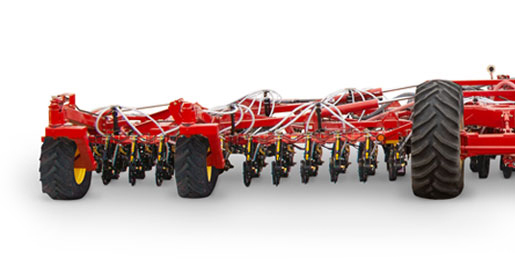

Expect the highest degree of durability with a robust frame construction that makes competitors green with envy.

  • The heavier built Bourgault 2-row, 127mm x 127mm (5" x 5") frame achieves superior penetration where other units ride up.
  • The robust construction ensures the frame will perform reliably in the rough agricultural work environment year after year.



ParaLink Row™ Opener

The ParaLink Row™ Opener (PLR™) provides two very distinct advantages in today's coulter drill market.

  • Developed in conjunction with the Air Planter™ Product Delivery System, the PLR™ offers Producers the distinct advantage to seed and plant with the same implement!
  • The durability and ingenuity built into the PLR™ Opener makes it longer lasting and easier to set than the competition. Get more seasons from the wearing components such as the coulter or the scraper boot with the Bourgault PLR™ Opener.
Learn More



The Hi-Flotation™ Option

3720 ICD available with the Hi-Flotation option in select sizes

Expand Your Seeding Window

The HF™ option allows you to get into the field sooner, providing your crop with an early start. In addition, HF™ provides you with confidence when traversing challenging or restrictive terrain such as soft and narrow roads.

Stay on Top with HF™

Stay on Top

The taller profile of the Hi-Flotation™ tyres helps prevent the front of the drill from “diving” in in wet conditions and reduces draft in soft field conditions.

  • The large, front mainframe tyres provide 65% more surface area than the standard dual tyres, while the large singles on the front wing wheels increase the surface area by 27%. This much larger footprint keeps the drill on top in conditions that would cause regular seed drills to sink.
  • As much as 70% of the weight applied from the drill to the tyres is transferred through the front running gear in a high draft scenario. For this reason, the majority of the additional rubber is focused on the front of the drill.

Superior Tracking

Effectively Manage Turns with HF™

  • Transport safety is greatly improved with the Hi-Flotation™ option, particularly on narrow roads with soft shoulders.
  • The wagon-style hitch provides superior tracking when negotiating narrow back roads and approaches.

Availability

Hi-Flotation Drill in Transport

Available Hi-Flotation™ options:

  • the Full Hi-Flotation™ option provides large tyres on the front of the mainframe and large, single caster wheels on the front of the wings.  Larger rear wheels are also included. (available for select units)
  • the Center Hi-Flotation™ option offers large front tyres with wagon-style steering on the mainframe paired with the regular dual front casters on the wings.  Larger rear wheels are also included. (available for select PCD™ units);

3330SE & 3335QDA PHD™ Full HF Main Frame Only
   60', 66', 76' Optional N/A
   80', 86' Standard N/A
3720 & 3820 PCD™
   60' Optional Optional
   70' Optional Standard
Read More



Volumetric Configuration

Directs seed to the bottom of the furrow, eliminating the opportunity for seed bounce.

When operating as a traditional air coulter drill, product from the air kit exits the seeder boot and is directed to the bottom of the furrow with a plastic seed retainer, eliminating the opportunity for seed bounce. The seed is then pressed into the seedbed by the firming wheel, ensuring excellent seed-to-soil contact.

Ensure excellent seed-to-soil contact with the seeder boot of the PLR opener

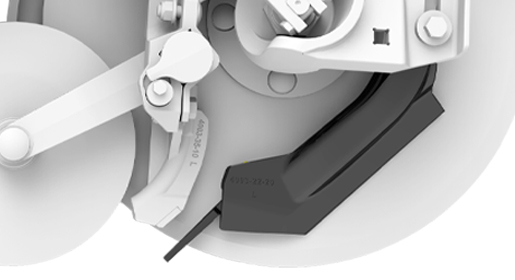

Seeder Boot

When operating as a traditional air coulter drill, product from the air kit exits the seeder boot and is directed to the bottom of the furrow with a plastic seed retainer, eliminating the opportunity for seed bounce. The seed is then pressed into the seedbed by the firming wheel, ensuring excellent seed-to-soil contact.

This seed boot also acts as a disk scraper, wiping the inside clean to ensure an intact furrow is cut.

Read More



MRB® Fertilizer Application System

Series III Mid Row Bander® Fertilizer Applicators achieve the best possible returns by placing your nitrogen fertilizer in the optimal location when one-pass seeding.

Series III Mid Row Banders® Fertilizer Applicators achieve the best possible returns by placing your nitrogen fertilizer in the optimal location when one-pass seeding.

Applicators are available in two formats:

  • Mid Row Bander® Fertilizer Applicators;
  • Mid Row Shank™ Fertilizer Applicators.
Availability varies on drill types and sizes.



Learn More






Additional Resources

A comprehensive library of Bourgault product information is only a click away!
Visit the Bourgault Electronic Documentation System for parts and operational documentation.



Operator's Manual
