Quick & Effective 8000 Series Air Carts

PRODUCT TRANSFER SYSTEMS

Save time when you are transferring product by using the Load/Unload Augers, the optional Baglift System™ and the optional FillChute™.

LOAD/UNLOAD AUGERS

Models 8550 & 8450 (Leading & Trailing)

Deluxe 10" diameter Load/Unload Auger; or,
Standard 10" Load/Unload Auger (Standard Auger Hopper is an available option).

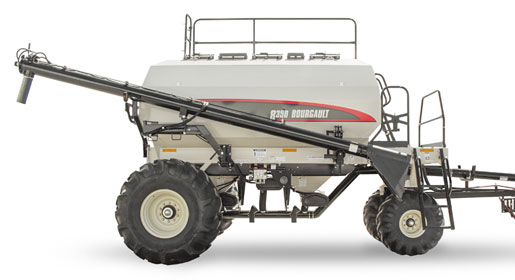

Model 8350 (Leading & Trailing)

Standard 8" Load/Unload Auger (Standard Auger Hopper equipped).

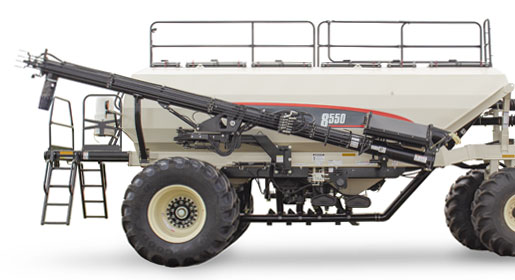

Deluxe 10" Load/Unload Auger

fills an 8550 Air Cart in about 20 minutes;
complete hydraulic control for positioning in-and-out of transport;
horizontal hopper design reaches under belly-dump trailers;
clean-out is excellent, with typically less than one gallon of product left in the auger;
Load/Unload Rate: approximately 85 bu/min (based on dry barley @ 48 lb/bu).

The 10" Standard Load/Unload Auger

hydraulic control for swing and manual control for auger height;
Load/Unload Rate: approximately 70 bu/min (based on dry barley @ 48 lb/bu).

The 8" Standard Load/Unload Auger

manual positioning;
Load/Unload Rate: approximately 30 bu/min (based on dry barley @ 48 lb/bu).

The BagLift™ Option - Bag Transfer System

Available on 9000 & 8000 Series Air Carts.

You no longer have to endanger your safety by lugging heavy bagged seed up the tank stairs. Now you can safely and easily transfer your bagged product to the tank top via the remote operated hydraulic lift system.

The BagLift™ Product Transfer option is rated for transferring a 440 lb load of bagged seed from the ground to the top of the tank (this is equivalent to about eight, 55 lb bagged seed),
Oil flow is diverted from the air cart fan system when the lift is in operation.
Available on units without the Saddle Tank™ or BulkBoom™ options.
Not available for the 91300 Model.

This feature is not intended for the elevation of anything except bagged seed.

The FillChute™ Option

Available on 9000 & 8000 Series Air Carts with optional Saddle Tanks™

The FillChute™ Product Transfer option is a simple, yet convenient feature, that allows the Operator to fill the Saddle Tank™ with the cart's conveyor. This is especially handy for adding the capacity of the Saddle Tank™ to one of the four main tanks to extend the acres per fill.

Note: The Saddle Tank is not available for the Model 8350 Leading or Trailing air carts.
